HyperBOND Epoxy | Wet Condition Moisture Tolerant | Concrete Floor Coating | Low Temp 40F | 100% Solids

COVERAGE RATE

CURE SCHEDULE

APPLICATION TEMPERATURE: 45-90 degrees F with relative humidity below 85%

Rating key:  – R recommended for continous service L – Limited recommendation, occasional spills

MIXING AND APPLICATION INSTRUCTIONS

PRODUCT STORAGE: Product must be stored in an area that will bring the product to room temperature prior to using. Continuous storage should be between 60 and 90 degree F. Keep from freezing

SUBSTRATE PREPARATION: Preparation methods may vary depending on the system being applied. For a complete system thickness that is higher than 10 mils dry, a fine brush blast (shot blast), is recommended. To assure a trouble free bond, all dust, oil, dirt, foreign contaminants and laitance must be removed. It is recommended to perform a moisture test to determine that the concrete has an appropriate vapor barrier. This can be done by placing a 4’X4’ plastic sheet on the substrate and taping down the edges. Once 24 hours has passed, and the substrate is still dry below the plastic sheet, then the substrate does not show signs of eventual hydrostatic pressure problems that may later cause disbonding. This test does not guarantee, however, that there may not be future hydrostatic pressure issues in the future.

Optional:  To reduce chance of concrete outgassing or enhance color saturation, recommend E5015 Water Based Epoxy comes in 20 colors to match topcoat.  For quick recoat, one day day project OR application in damp conditions recommend E155CL Epoxy Clear Primer with recoat in 30 min – 1-1/2 hour for 100% solids topcoats and application over damp or moist concrete.

PRODUCT MIXING: This product has a two to one mix ratio by volume-merely mix 2 gallons of part A with 1 gallon of part B. After the two parts are combined, mix well with slow speed mixing equipment until the material is thoroughly mixed and streak free. Avoid whipping air into the coating. Improper mixing may result in product failure. When pigmenting the product (ex. making a 3 gallon batch), pour 1 gallon of Part B into a measuring/mixing bucket, then add the desired amount of pigment into the Part B and mix until blended. Then add the part A up to the 3 gallon mark and mix and blend very well until material is thoroughly mixed and streak free.

Improper mixing may result in product failure. For best mixing results and proper blending of parts A and B, recommend a Jiffy Mixer style drill mixer.

Use of an improper drill mixer can result in streaking of the color because the pigment has not been thoroughly blended.  It can also create curing problems if the hardener also called activator (Part B) is not thoroughly blended with the resin (Part A) which can cause some areas on your floor to remain soft and not harden properly.  DO NOT USE A PAINT MIXER.  Many mixing problems described above can be traced back to using a paint mixer..  DO NOT HAND MIX as this approach can also result in the same problems as using a paint mixer.

****IMPORTANT NOTE AFTER MIXING:****

Once parts A&B are thoroughly mixed, immediately pour 100% of all mixed product on the floor in a ribbon pattern, S or W shape over the area you want that amount of product to cover. The risk of leaving product in the bucket is that it will become hard and reduce the working time by a minimum of 50% and may harden and start smoking in the bucket before you get back to it.

Product Application: Properly prime the substrate prior to applying this product. Use a brush or ¾” nap roller to apply the mixed material. This product can be applied using a knotched, or serrated squeegee, then back rolled to maintain appropriate thickness. Maintain temperatures within the recommended ranges during the application and curing process. It is best to maintain a wet edge to avoid roller marks. Direct sunlight or high temperatures may cause visible roller making during application.

RECOAT OR TOPCOATING:  Installing multiple coats of this product is acceptable. If recoating this product, be sure that all of the solvents have evaporated from the coating during the curing process. Refer to the cure schedule as a guideline to follow, however it is best to test the coating before recoating or topcoating. This is done by pressing your thumb on the coating to ensure a fingerprint impression is not visible. If there is no impression visible, then coating the floor can be done. Note, colder temperatures require longer cure times before product can be recoated. Prior to coating the floor, make sure there are no contaminants exist. If contaminants exists, remove with a standard detergent cleaner and ensure floor is clean and dry prior to coating. When recoating this product with subsequent coats of urethane, make sure to apply the recoat within the 24 hour time frame. It is recommended to degloss the previous floor prior to coating to ensure a trouble free bond.

We strongly recommend to test the coating before recoating or topcoating. This is done by pressing your thumb on the coating in multiple places to ensure a fingerprint impression is not visible. If there is no impression visible, then coating the floor can be done. Note, colder or hotter than 75 degrees can affect the curing time schedule

CLEANUP/FLOOR CLEANING:Use solvents for cleanup. When cleaning the floor, CAUTION! Some cleaners may affect the color of the installed floor. Test each cleaner used in a small area, ensuring no damage occurs. Restrict the use of the floor to light traffic and non-harsh chemicals until the floor is fully cured, refer to the cure schedule. Allow the floor to remain completely dry during the curing process.

RESTRICTIONS: Restrict the use of the floor to light traffic and non-harsh chemicals until the coating is fully cured (see technical data under full cure). It is best to let the floor remain dry for the full cure cycle. Dependent on actual complete system application, surface may be slippery, especially when wet or contaminated; keep surface clean and dry.

LIMITATIONS:

• Colors or gloss may be affected by high humidity, low temperatures, chemical exposure, or exposure to lighting such as sodium vapor lights.
• For best results use a 3/4” nap roller
• Slab on grade requires moisture barrier
• Substrate temperature must be 5°F above dew point
• All new concrete must be cured for at least 30 days
• Physical properties are typical values and not specifications
• Tire contact may cause staining or discoloration (long term parked vehicles)
• Colors may vary from batch to batch, therefore use only product from the same batch for an entire job.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITYFloorguard Products® warrants that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine suitability of our product for your particular purpose. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER IFNORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.

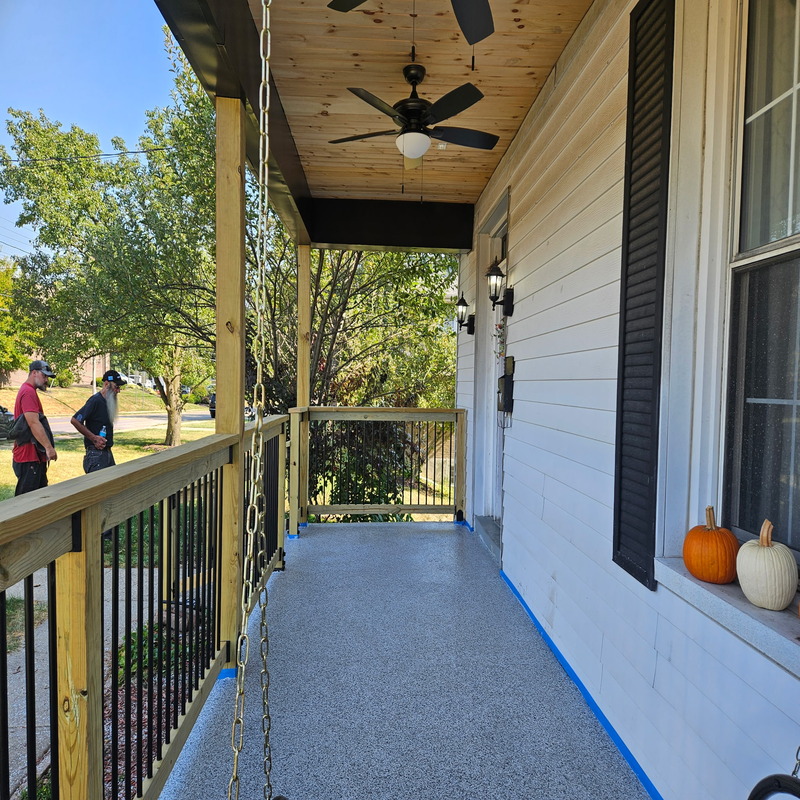

HyperBond Epoxy Porch - Sable Gray Epoxy with Full Flake Broadcast

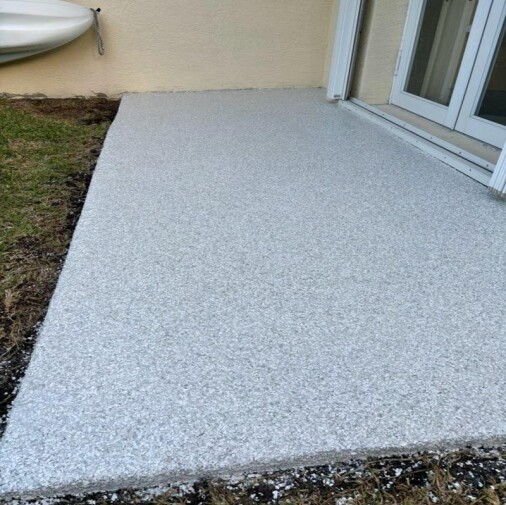

HyperBond Epoxy Porch - Clear Epoxy with Full Flake Broadcast

HyperBond Epoxy Porch - Clear Epoxy with Full Flake Broadcast

Projects

Check out our customer projects using HyperBOND Epoxy!

Concrete Patio Enhanced with UV Stable Factory Blend Flakes, HyperBond Epoxy and 5500 Polyaspartic

What is HyperBOND epoxy?

HyperBOND is a 100% solids, moisture-tolerant epoxy floor coating designed for concrete surfaces exposed to damp or wet conditions. It offers superior adhesion, durability, and chemical resistance, making it ideal for both residential and industrial flooring applications.

Can epoxy be applied to wet or damp concrete?

Yes — this is where HyperBOND stands out.

HyperBOND is water-insensitive during application and can be applied directly to damp or even wet concrete surfaces, unlike traditional epoxies that fail under moisture.

👉 This makes it a top solution for:

• Basements with moisture vapor
• Garage floors with condensation issues
• Slabs without a perfect vapor barrier

How much moisture can HyperBOND handle?

HyperBOND can withstand up to 9 lbs of hydrostatic pressure, which is significantly higher than standard epoxy coatings.

This means it can tolerate:

• Moisture vapor transmission through concrete
• Subsurface water pressure
• Problem slabs that would typically cause peeling or delamination

What temperature can HyperBOND be applied in?

HyperBOND is a low-temperature epoxy that can be applied in conditions as low as 40–45°F.

This makes it ideal for:

• Cold-weather installs
• Unheated garages or warehouses
• Early spring / late fall applications

Does HyperBOND require a primer?

In most cases, no primer is required, especially on properly prepped concrete.

However, a primer may still be used to:

• Reduce outgassing
• Improve color uniformity
• Speed up recoat times

For a list of our available primers check out our Primers page. You can also reach out to us to determine best products for YOUR project at 630-675-4509 or [email protected].

What surfaces can HyperBOND be used on?

HyperBOND is designed primarily for concrete, including:

• Garage floors
• Warehouses and industrial floors
• Commercial spaces
• Kitchens and utility areas

How durable is HyperBOND epoxy?

HyperBOND is built for long-term performance with:

• High compressive strength (12,300 psi)
• Strong adhesion (concrete failure, not coating failure)
• Resistance to abrasion, chemicals, and impact

This makes it suitable for:

• Forklift traffic
• Heavy equipment
• High-traffic environments

Does HyperBOND resist common epoxy issues like blushing?

Yes. HyperBOND is resistant to amine blushing and sweating, which are common problems in humid or damp conditions.

This ensures:

• Better adhesion
• Cleaner finish
• Fewer coating failures

What is the working time for HyperBOND?

HyperBOND has a 30–35 minute working time, giving installers enough time to:

• Spread evenly
• Maintain a wet edge
• Avoid roller marks

Note: Hotter or warmer temperatures than 70F will affect working time! For more application tips, reach out to us at 630-675-4509 or [email protected].

How much coverage do you get per gallon?

Coverage depends on thickness:

• 100–160 sq ft per gallon at 10–16 mils

For help determining the correct quantities for YOUR project reach out to us at 630-675-4509 or [email protected].

Can HyperBOND be used as part of a full system?

Yes — it is commonly used as a base coat in full broadcast systems, including:

• Vinyl flake floors
• Quartz systems
• Industrial coatings

What topcoats can be used over HyperBOND?

HyperBOND is compatible with:

• Polyaspartic coatings
• Urethane topcoats
• Clear epoxy seal coats

For best performance, many systems use a polyaspartic topcoat for UV and scratch resistance.

How long does HyperBOND take to cure?

Typical cure times:

• Tack free: 8–10 hours
• Recoat: ~10 hours
• Light foot traffic: 24 hours
• Full cure: ~5 days

Note: Hotter or lower temperatures can affect cure schedule. For additional support on application reach out to us at 630-675-4509 or [email protected].

Is HyperBOND safe for indoor use?

Yes. HyperBOND is:

• 100% solids (no solvents)
• Low odor / near-zero VOC

This makes it safe for use in:

• Occupied homes
• Commercial buildings
• Indoor renovations

What colors are available?

• Clear base + 12 color pigment options with E-Poly Pigment (separate purchase)
• Pre-pigmented options available in select colors

When should you use a moisture-tolerant epoxy like HyperBOND?

Use HyperBOND when you have:

• Concrete that “sweats” or stays damp
• No vapor barrier under the slab
• Previous coating failures due to moisture
• Cold weather application conditions

What makes HyperBOND different from standard epoxy?

HyperBOND is specifically engineered to solve the biggest cause of epoxy failure: moisture.

Key advantages:

• Apply on damp or wet concrete
• Handles hydrostatic pressure
• Works in cold temperatures
• No primer required in many cases

Is HyperBOND good for garage floors?

Yes — it’s one of the best options for garage floors with moisture issues, especially where traditional epoxy would fail.
