E1850 Epoxy Floor Coating | 100% Solids | High Gloss | Abrasion Resistant | Long 30-40 Min Work Time | High Build To 60 Mils DFT One Coat

CURE TIME

Temperature             Minimum Recoat            Maximum Recoat            Foot Traffic              Heavy Traffic

90°F                          6 Hours                           18 Hours                   12-16 Hours                36-48 Hours

75°F                          8 Hours                           24 Hours                   18-24 Hours                48-72 Hours

50°F                        24 Hours                            48 Hours                   36-48 Hours                 72-96 Hours

MIXING AND APPLICATION INSTRUCTIONS

SURFACE PREPARATION

In all cases of surface preparation, the pH should be checked. A pH reading of 7.0 to 8.5 is acceptable. Also, a Water Dissipation Test should be made on random areas of the floor to determine if the proper degree of porosity has been achieved. Before the installation of any Gulf Coast Paint Products, the substrate should be examined for moisture. Test for moisture vapor transmission using ASTM F-1869 Standard Test Method for Measuring Moisture Vapor Emission Rate of Concrete Subfloor using Anhydrous Calcium Chloride. The maximum allowable rate is 3lbs per 1,000 square feet per 24 hours. Test for relative humidity in concrete floor slabs using Probes according to ASTM F-2170. This test measures the presence relative humidity of the slab below the surface. The maximum relative humidity should be below 80%.

New concrete must be cured at least a minimum of 28 days before applying a coating. On-grade slabs must have moisture vapor barrier in place. All laitance, sealers, efflorescence, chemical contaminants, grease, oil and other foreign material must be removed. The prepared surface must be clean, dry and structurally sound. Gulf Coast Paint recommends mechanical preparation by means of shot blasting or diamond grinding to achieve a CSP-2 or CSP-3 profile, in accordance, with the international concrete repair institute (ICRI). The profile should reflect something similar to a 60-100 grit sandpaper. If the substrate is not properly prepared and the appropriate profile is not achieved, failure of the product to adhere to the substrate may occur.

Old concrete surfaces must be structurally sound. Any unsound areas must be repaired prior to proceeding with the resinous installation. For proper patching and preparing, use E615 and/or E1000 with graded aggregate. Remove existing paint and loose concrete by rough sanding, sandblasting, high pressure water cleaning, shot blasting or grinding. In some cases where plant conditions allow, a stripper may be used to remove excessive build-up of paints or sealers.

MIXING INSTRUCTIONS

E1850 is a 3:1 mix ratio by volume, and is prepared by mixing 3 parts by volume of pigmented BASE A with 1 part by volume of HARDENER Part B using a low speed drill with a Jiffy Mixer. Blend the 2 components slowly together for a minimum of 3 minutes. Do not vary from the 3:` mixing ratio. No thinning is required, and no induction time is required. E1850 may be used immediately after 3 minutes of mixing.

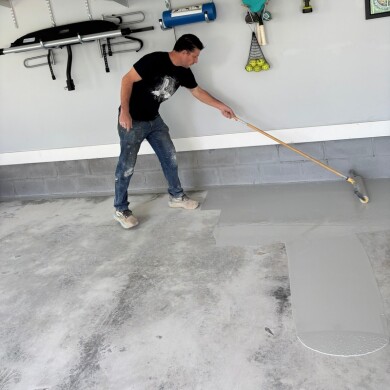

APPLICATION PROCEDURE

For best results, apply E1850 with a notched squeegee at 10-60 mils DFT or a 1/4″ or 1/2″ roller at 10-20 mils DFT. After applying E1850 by squeegee or roller immediately back-roll material with a metal porcupine roller to break up any air bubbles which may form by mixing or during application. If any concrete out-gassing has previously occurred, roller 1-2 coats of E155 Concrete Primer directly to the concrete surface before applying the E1850 to help reduce out-gassing. The E155 should be butterfly rolled into the concrete to provide uniform coverage. E155 Primer should be top coated while it is still “tacky” refer to the E155 Technical Data Sheet for specific information on recoating.

The E1850 Coating has excelling “wetting out ” properties, and has the capability of being applied directly to properly cleaned and porous concrete surface as a one coat system. However, a test sample of E1850 should be applied to assure that a uniform gloss finish is maintained and proper penetration and adhesion has been achieved. We still recommend the use of a concrete primer for over-all best results.

NOTE:  For safety and product curing, proper ventilation is necessary throughout application and cure.  When using pigmented Finish Coats, always be sure the batch numbers are all the same to provide a uniform color.

Do not apply if the surface temperature is within 5° of the Dew Point.  PC-1850 Base and Hardener should be stored at 75°- 85°F to help maintain a lower, rollable viscosity.  Do not apply when material is cold.  Allow a minimum of 72 hours with good ventilation before putting floor back into service.  If a non-skid finish is required, prepare a test patch for owner approval prior to application.

SHELF LIFE

The shelf life of CF-621 is in excess of 12 months when stored at 50°- 90°F or below.

CAUTIONS

E1850 Base is combustible.  Keep away from all sources of ignition during storage, mixing, application and cure.  E1850 Hardener is corrosive.  The Hardener and Base can cause eye and skin burns as well as allergic reactions.  When spraying, the use of goggles, fresh air masks or NIOSH approved respirators, protective skin cream and protective clothing is recommended as a standard practice. This product is sold without warranty as to performance expressed or implied.  Users are urged to make their own tests to determine the suitability for their particular conditions.

SEE SAFETY DATA SHEET FOR FULL SAFETY PRECAUTIONS. KEEP AWAY FROM CHILDREN. NOT FOR RESIDENTIAL USE. FOR PROFESSIONAL AND INDUSTRIAL USE ONLY.

SEE MATERIAL SAFETY DATA SHEET FOR FULL SAFETY PRECAUTIONS.  FOR PROFESSIONAL AND INDUSTRIAL USE ONLY  KEEP AWAY FROM CHILDREN.  NOT FOR RESIDENTIAL USE NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE SAFETY DATA SHEET AND FOLLOW THE PRECAUTIONS TO PREVENT BODILY HARM.

1. What is a 100% solids epoxy coating?

A 100% solids epoxy coating contains no solvents or water, meaning everything applied remains on the floor after curing. This results in a thicker, more durable, high-build epoxy floor coating compared to water-based or solvent-based epoxy products.

2. Is this epoxy good for garage floors?

Yes. This 100% solids epoxy coating is ideal for garage floors because it provides excellent adhesion to properly prepared concrete, high gloss finish, chemical resistance, and abrasion resistance. It is commonly used in residential garages, workshops, and commercial spaces.

3. What makes this epoxy different from big-box store epoxy kits?

Unlike DIY epoxy kits found at hardware stores, this professional-grade 100% solids epoxy:

• Builds a thicker coating per coat

• Has superior durability and abrasion resistance

• Provides longer working time

• Produces a true high-gloss finish

• Is designed for flake floor systems

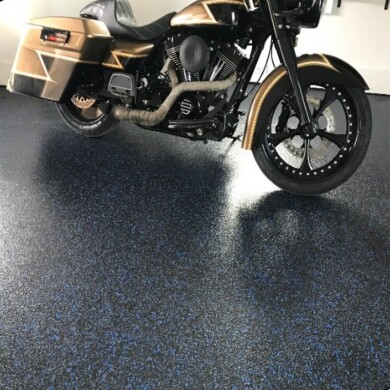

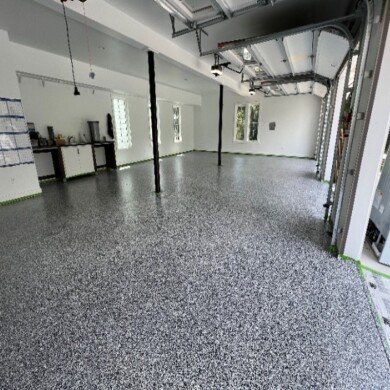

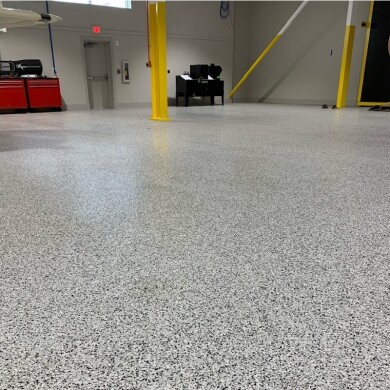

4. Can this epoxy be used in a flake floor system?

Yes. The E1850 epoxy is specifically designed as a base coat for decorative vinyl flake floor systems. Its long working time allows for proper broadcast of epoxy flakes, ensuring full coverage and professional results.

5. How long is the working time (pot life)?

This epoxy has an extended working time compared to fast-cure systems, allowing contractors and DIY installers more time to roll out material and broadcast flakes before it begins to set.

6. How durable is this epoxy coating?

This abrasion-resistant epoxy coating is designed for high-traffic areas. It resists impact, vehicle traffic, chemical spills, and wear, making it suitable for garages, warehouses, and industrial floors.

7. Does this epoxy require a primer?

For best results, proper surface preparation is essential. On porous concrete, this product can act as a base coat, but some projects may benefit from a dedicated epoxy primer depending on slab condition.

To reduce chance of concrete outgassing or enhance color saturation, recommend E5015 Water Based Epoxy comes in 20 colors to match topcoat.  For quick recoat, one day day project OR application in damp conditions recommend E155CL Epoxy Clear Primer with recoat in 30 min – 1-1/2 hour for 100% solids topcoats and application over damp or moist concrete.

8. How do I prepare my concrete before applying epoxy?

Concrete must be mechanically ground or shot blasted to open the surface profile. Proper surface preparation ensures maximum adhesion and long-term performance of the epoxy floor coating.

9. Is this epoxy UV stable?

Standard 100% solids epoxy coatings are not UV stable and may amber over time in direct sunlight. For areas exposed to UV light, we recommend topcoating with a UV-stable polyaspartic or polyurethane clear coat. We would recommend E1900 Clear or E1901 Clear Fast Cure

10. What is the coverage rate?

Coverage depends on surface condition and application thickness, but most 100% solids epoxy coatings cover approximately 100–160 square feet per gallon at standard build rates.

11. Can homeowners install this epoxy themselves?

Yes, experienced DIY homeowners can apply this coating with proper surface preparation and tools. However, professional installation is recommended for best results in large or commercial spaces.

12. How long does the epoxy floor system last?

With proper installation and maintenance, a professionally installed epoxy flake floor system can last 10–20 years or more in residential applications.

13. Can slip-resistant texture be added to E1850 epoxy floors?

All floor coating systems slippery when wet. For a safer surface we offer 3 anti-slip additives depending on need for safety (positive) and willingness to accept negatives (change in looks, dulled gloss, harder to clean). Always a trade-off. Least change in looks and least aggressive additive is SSR-20 polybeads, then silica sand and most aggressive aluminum oxide. Slip Resistance Additives
