GroundWorx Ultra (HB-97.2) ESD Urethane Top Coat | Static Dissipative or Conductive | ANSI S20.20-2014

GroundWorx Ultra (Formerly HB-97.2) ESD Conductive | Dissipative Top Coat is a low odor, chemical resistant, aliphatic polyester ESD urethane coating designed to provide ANSI/ESD 20.20-2014 static control properties when used with GroundWorx Ultra ESD Epoxy High Build Primer. The Urethane top coat also produces excellent physical protection with a very tough, chemical and abrasion resistant, non-yellowing, semi-gloss finish available in a wide variety of colors.

The GroundWorx Ultra ESD system meets ESD Association (ESDA) standards and is compliant with ANSI/ESD S20.20-2014 recommendations for grounded static-control flooring with your choice of either static dissipative >1.0 x 10e6 ohms and <1.0 x 10e9 or conductive <1.0 x 10e6 ohms options, limiting static charge generation to < 15 volts.

When used together, the GroundWorx Ultra ESD Epoxy Primer and GroundWorx Ultra ESD Urethane Top Coat complete a heavy duty ESD protection system that can be used where significant commercial and industrial forklift, pallet jack, heavy cart and foot traffic is present at less than $4.00/sq’ material cost (delivered).   The GroundWorx Ultra ESD system offers good chemical and abrasion resistance and is recommended for use on concrete, wood and old VCT floors with easy maintenance that never requires waxing or buffing.

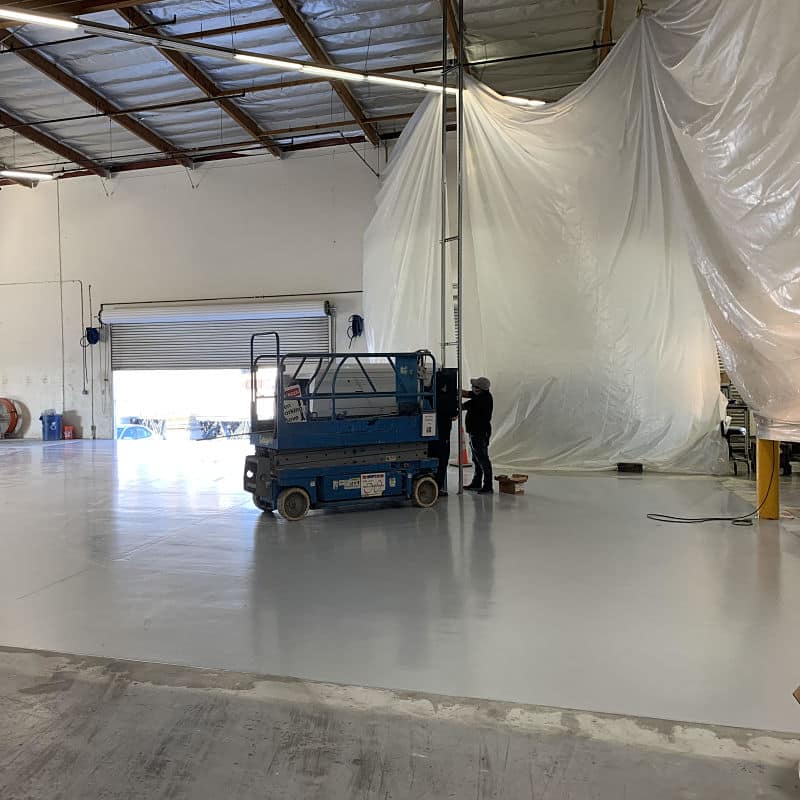

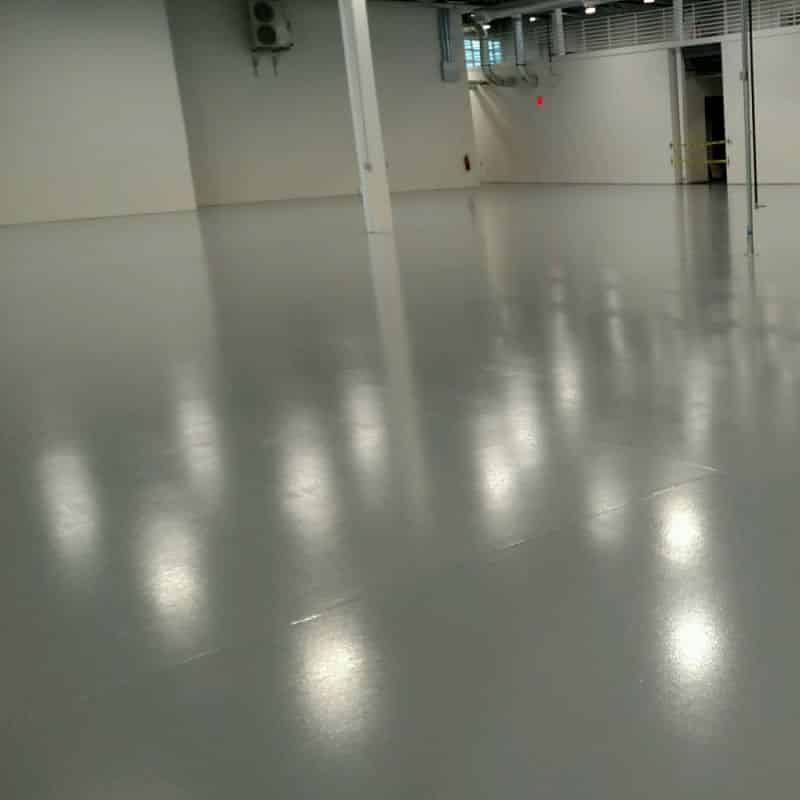

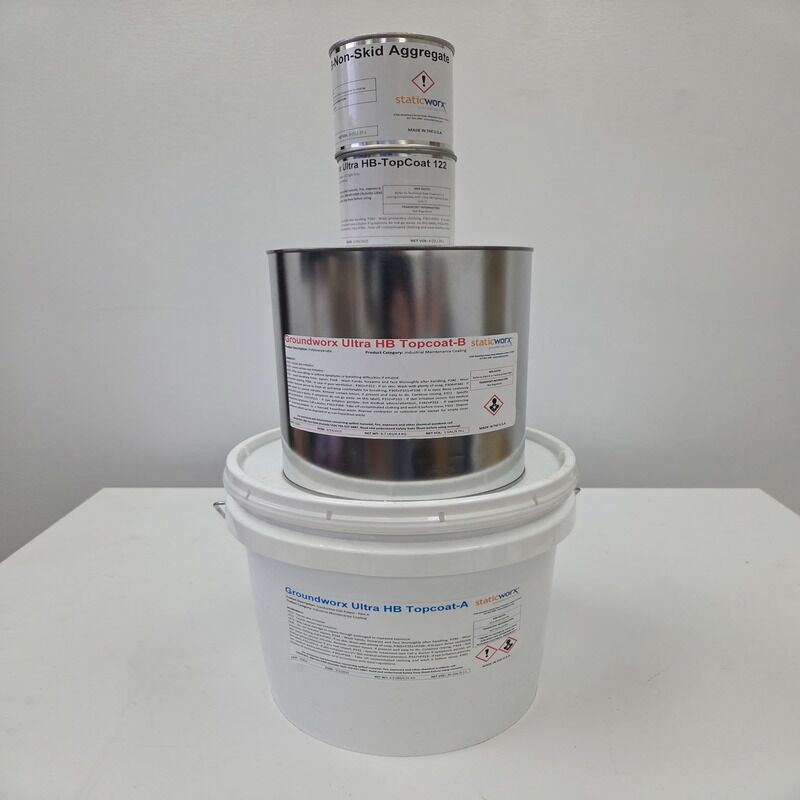

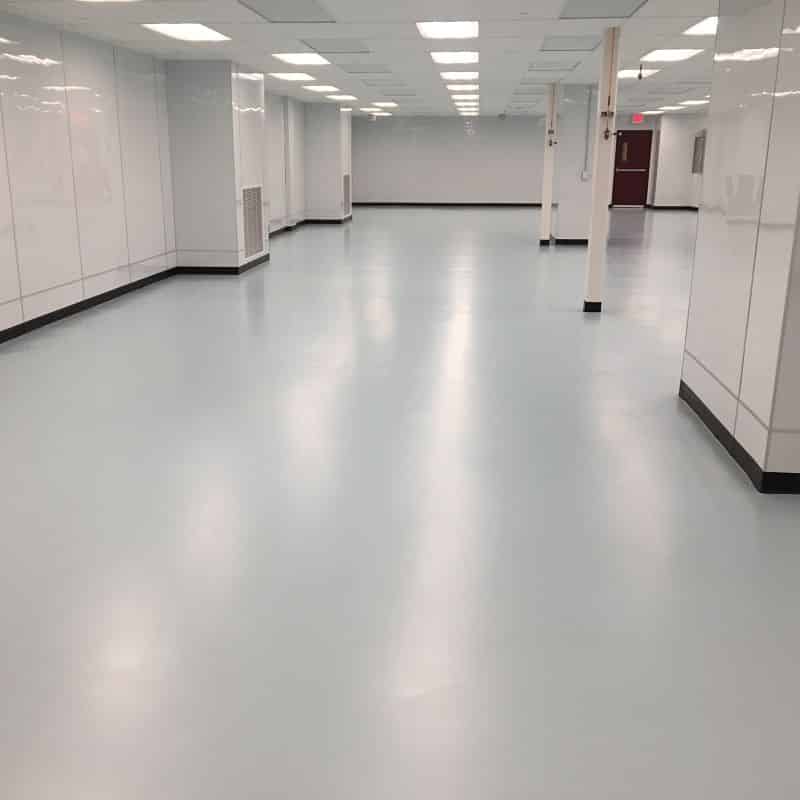

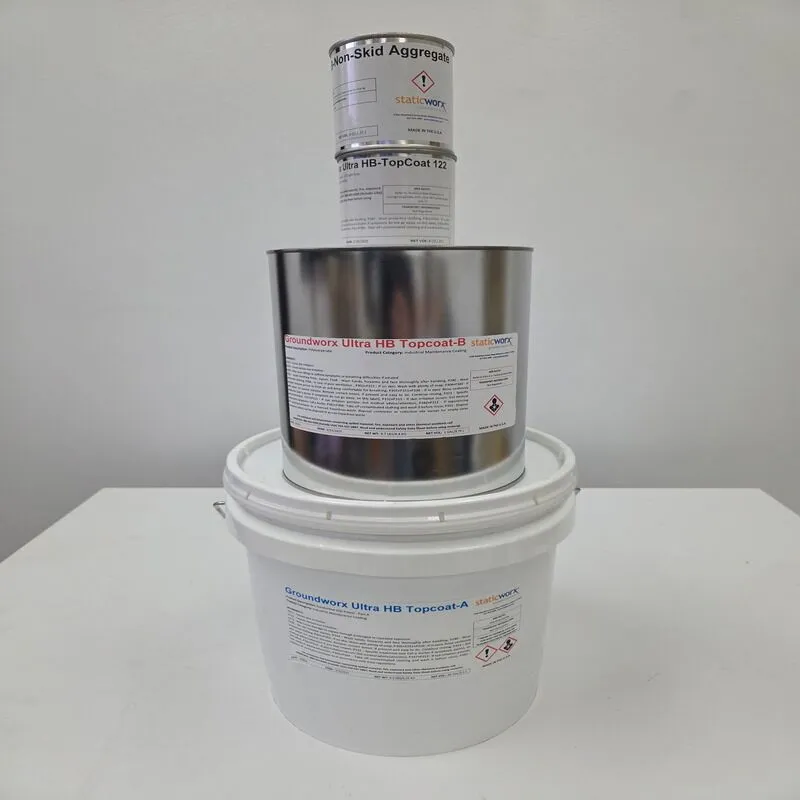

GroundWorx Ultra ESD Urethane Topcoat comes in a semi-gloss finish and is available in a 2 gallon kit and 8 standard colors.  Custom coloring available on special order basis to meet your specific color matching requirements.  We offer an optional copper grounding strip.  For proper grounding one copper grounding strip is required to be applied directly underneath the GroundWorx Ultra Urethane for every 1,000 sq’ of coating applied.

Total system thickness for the GroundWorx Ultra ESD Coating system is 14 mils at recommended coverage rates.  Coverage rate for GroundWorx Ultra Top Coat is 300-400 sq’/gallon (3-4 mils dry film thickness) when used as topcoat over GroundWorx Ultra ESD Primer which is applied at a minimum thickness of 160 sq’/gallon (10 mils dry film thickness).

The GroundWorx Ultra Urethane is compatible with industry standard Anti-Slip Additives if required for project safety.  The GroundWorx Ultra Urethane can also be used as a conductive or dissipative topcoat over other properly prepared and compatible surfaces, with grounding of the urethane topcoat once every 1,000 sq (not for application directly over a floor surface, requires either a primer or basecoat).  Contact us at 630.675.4509 or email sales@exteriorcoatings.com for questions.

Where is the GroundWorx Ultra ESD Urethane Top Coat used?

  • Electronics manufacturing & assembly areas
  • Research & Development
  • Computer storage and warehousing areas
  • Component Testing and Repair
  • For Heavy Duty Forklift And Pallet Jack Traffic Areas

Why GroundWorx Ultra ESD Top Coat?

  • Optional Static conductive <1.0 x 10e6 ohms or Dissipative >1.0 x 10e6 and <1.0 x 10e9 ohms high performance electrical protection, limiting Static Charge Generation to <15 volts
  • Great for high traffic (forklift & pallet jack), high wear commercial & industrial applications with high build 14 mil system
  • Conforms to ESDA, ANSI standard S20.20-2014 when used with the GroundWorx Ultra ESD Epoxy Primer
  • Use on Concrete, Wood and old VCT surfaces
  • Tough surface: impact resistance 140 psi and tabor abrasion test 25 mg loss
  • Surface: Anti-slip, ROHS compliant
  • No wax required – easy to keep clean
  • Satin to Semi-gloss sheen
  • 8 standard colors
  • Full range of custom Colors available on special request

SPECIFICIATIONS

Solids 70% solids ASTM D2369
VOC  250 g/L
Colors Off white, light gray, medium gray, dark gray, Umber , light blue, beige plus custom colors special order
Recommended Film Thickness 3-4 mils dry when applying over GroundWorx Ultra Epoxy Primer
Coverage per Gallon 280 sq/gallon to 410 sq’/gallon depending on surface applied to
Packaging  2 gallon kit
Surfaces applied to Concrete, wood, old VCT floors
Shelf Life 3 months in unopened container
Finish Semi-Gloss sheen
Flash Point > 187°F (86°C) ASTM 3278
Mixed Viscosity 300-500 cps D2196
Abrasion Resistance 25 mg ASTM D4060
Coefficient of Friction 0.55 – 0.65 ASTM D2047
Tensile Strength 6,160 psi ASTM D2370
*Electrical Resistance Point to Point: 2.5×104 – 1.0×106 and Point to Ground: 2.5×104 – 1.0×106 (ASTM F-150, ANSI/ESD STM 7.1)
*Walking Body Voltage Generation < 15V (ANSI/ESD STM 97.2)
*Static Dissipation (Decay) 5,000 – 0 Volts in <0.1 seconds ASTM F-101C
Impact 140 in/lbs direct & reverse ASTM D2794
Hardness 2H ASTMD3363

*Electrical performance when used in conjunction with the GroundWorx Ultra ESD Epoxy Primer

COVERAGE RATE

Coverage Per Gallon 280 Sq/Gallon To 410 Sq’/Gallon Depending On Surface Applied To

CURE SCHEDULE

(at 75°F or 25°C and 50% RH)

Working time 20 minutes
To touch 4-6 hours
Fully dry 6-10 hours
Light traffic 18+ hours
Full cure 7-14 days

APPLICATION TEMPERATURE:
65°F (18°C) and 80°F (26°C) and between 30% – 70% relative humidity.  DO NOT apply coatings unless the surface temperature is more than five degrees over the dew point.

MIXING AND APPLICATION INSTRUCTIONS

1) PRODUCT STORAGE:   Materials should be stored in original un-opened containers indoors between 65°F (18°C) and 90°F (32°C) and at or below 75% RH.

2) GENERAL SURFACE PREPARATION:  All surfaces must be sound, dry, clean and free of oil, grease, dirt, mildew, form release agents, curing compounds, loose and flaking paint and other foreign substances.  Surface dirt, grease, oil, and contaminates must be removed by detergent scrubbing and rinsing with clean water.

Shot blasting or grinding the surface is the preferred method of preparation when applied to bare concrete surface.  If the concrete has been treated or sealed, proceed with complete removal process.   The success of industrial diamond grinding as a concrete preparation method will vary depending on technique and the hardness of the concrete

If contaminates of oils, silicones, mold release agents, and/or others are present, GroundWorx Ultra ESD top coat may fisheye or delaminate from the surface. Surface contaminates should be removed with a suitable detergent prior to application. Solvent cleaning of silicone contaminates may make the situation worse; please contact Staticworx for additional recommendations.

MOISTURE AND VAPOR/CONTAMINATION

Moisture and vapor transmission rates are dynamic in nature and may change over time. Initial testing does not guarantee future results. Staticworx requires that all concrete slabs are tested using in-situ probes per ASTM F-2170 and with calcium chloride tests per ASTM F-1869. If the relative humidity of the concrete substrate is over 75% (per ASTM F-2170) or 3lbs/1,000ft²/24 hours (ASTM F-1869), contact Staticworx for a moisture mitigation recommendation prior to product use.

If there is no known vapor barrier or the vapor barrier is inadequate, there is an elevated risk of bond failure. Other factors including the migration of oils, chemicals, excessive salts or Alkali Silica Reaction (ASR) from the concrete may also elevate the risk of adhesion difficulties. Contact Staticworx for approved mitigation treatments.

Electrical Grounding  The GroundWorx Ultra Urethane is not designed to be applied directly to the floor by itself.  We suggest installing GroundWorx Ultra Epoxy Primer between the concrete surface and GroundWorx Ultra Urethane top coat.  You can install over an existing coating. The GroundWorx Ultra Urethane must be grounded to an earth ground once every 1,000 square feet for proper static dissipation. The EOS/ESD Association provides instruction for proper grounding of ESD equipment and floors. See the following guide on how to properly ground the GroundWorx Ultra Urethane for your floor coating system:  HOW TO GROUND ESD COATINGS.  Please note the copper grounding strip always goes just underneath the GroundWorx Ultra Urethane and on top of whatever it is being applied to.

We offer the option to include with the GroundWorx Ultra Urethane, a 1/2 inch-wide copper grounding strip for grounding to earth grounds. Copper is 1.4 mil thickness (2.6 mil thickness with the conductive adhesive backing).  Recommend at least 1 grounding strip every 1,000 sq’ of project surface area.  See the guide on how to properly ground your floor:

See the guide on how to properly ground your floor:  HOW TO GROUND ESD COATINGS

SCHEMATIC FOR GROUNDING AN ESD FLOOR COATING

How to Ground an ESD Floor Coating

MIXING INSTRUCTIONS: Premix the 2 gallon pail of Part A with a small mixing paddle attached to a drill in order to re-disperse possible settled or partially hardened material that may have occurred during storage and shipping.   Then add the color pack and mix together until a homogenous color is obtained throughout the 2 gallon pail. Next, empty the entire contents of Part A and color into a separate mixing container which will accommodate the 1.8 gallon mixed volume. Be sure to completely scrape our entire contents of the 2 gallon pail. Finally, add entire contents of Part B and mix all components for 2-3 minutes at slow speed. Staticworx recommends the use of a Jiffy® ES blade to filter the entire mix prior to application to remove agglomerates of particulate that may have not been thoroughly mixed

Improper mixing may result in product failure.

For best mixing results and proper blending of parts A and B, recommend a Jiffy Mixer style drill mixer.

TEMPERATURE AND HUMIDITY
During the application and curing of the coating, the substrate temperature, material temperature, and room conditions must be maintained between 65°F (18°C) and 80°F (26°C). Relative Humidity (RH) should be limited to 30- 70%. DO NOT apply coatings unless the surface temperature is more than five degrees over the dew point.

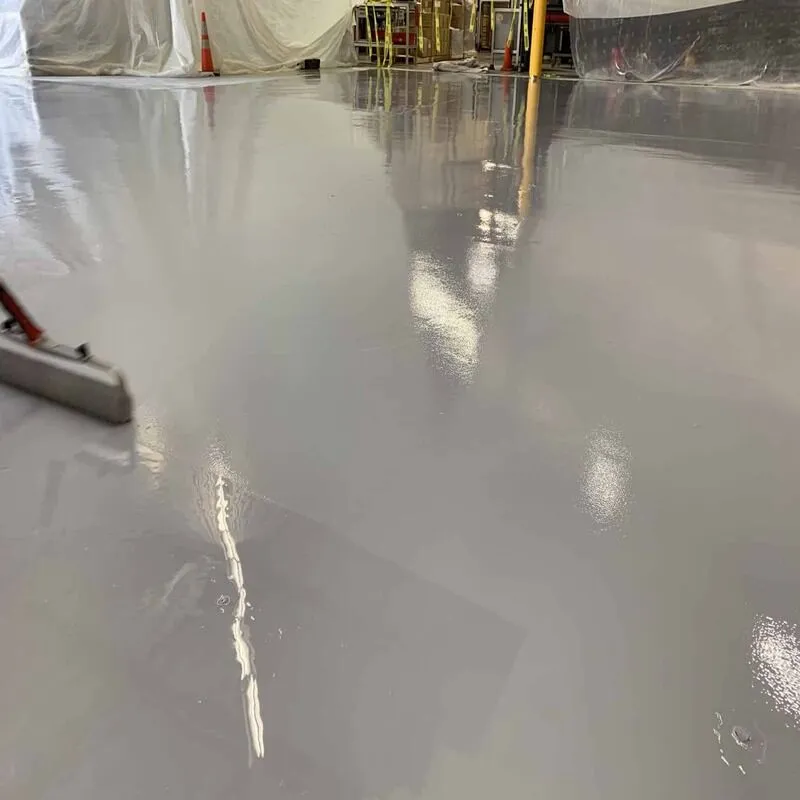

PRODUCT APPLICATION: Apply GroundWorx Ultra ESD top coat at a rate of 3.5-5 mils 285ft² – 410ft² per gallon) to the floor surface using a notched squeegee. If aggregate is utilized, GroundWorx Ultra top coat must be pan rolled and NOT squeegeed. Using a squeegee will produce lines of aggregate that will not roll out evenly. Back roll the wet coating using a 3/8 inch nap roller. Care should be taken to overlap and cross lap. One coat of GroundWorx Ultra ESD Urethane top coat is all that is required to achieve the appropriate ESD properties. Be sure to sufficiently roll out the GroundWorx Ultra top coat to achieve an even film thickness throughout the entire area. Excessively thick areas (>5 mils) will exhibit slightly more gloss whereas thinner areas (<3.5 mils) will tend to produce a flatter/matte finish. Unlike most other ESD coatings, GroundWorx Ultra will not foam and produce bubbles from rolling. The material must be rolled enough so that the reflection is uniform, showing little to no signs of overlap, pooling, or contrasting thick and thin areas.

Material must be mixed, applied, and finish rolled within 20 minutes of mixing. Failure to achieve this may result in inconsistent or non-compliant electrical performance and may also provide an inconsistent finish. Do not combine multiple kits together unless this time table can be easily met.

Material applied too heavily may blister or can be soft during curing. Too little material may produce a non-uniform look and affect electrical performance. Industry best practice is to measure and grid the floor to be sure of proper application rate.

MAINTENANCE GUIDELINES:  Allow floor coating to cure for at least 7 days before cleaning by mechanical means (i.e. sweeper, scrubber, disc buffer). Increased life of the floor will be seen with proper maintenance and will help maintain a fresh appearance. Regularly sweep to avoid retention of dirt and grime which can quickly dull the finish, decreasing the life of the coating. Spills should be removed as quickly as possible as certain chemicals may stain and can permanently damage the finish. Only soft nylon brushes or white pads should be used on your new floor coating. Premature loss of gloss can be caused by hard abrasive bristle Polypropylene (Tynex®) brushes.

Caution!  Some cleaners may affect the color of the floor installed. Test each cleaner in a small area, utilizing your cleaning technique.  If no ill effects are noted, you can continue to clean with the product and process tested.

DAMAGES AND REPAIRS

Heavy objects dragged across the surface will scratch any floor coating. Avoid gouging or scratching the surface. Staticworx recommends protecting the floor with plywood, Masonite, or Ram boards whenever heavy equipment is being moved in or out of the space. Pointed items or heavy items dropped on the floor may cause chipping or concrete chip damage. Plasticizer migration from rubber tires can permanently stain the floor coating. If a rubber tire is planned to set on the floor for a long period of time, place a piece of acrylic sheet between the tire and the floor to prevent tire staining. Rubber burns from quick stops and starts from forklifts and lift trucks can heat the coating to its softening point, causing permanent damage and marking. Repair gouges, chips, and scratches as soon as possible to prevent moisture and chemical under cutting and permanent damage to the floor coating.

RESTRICTIONS: Restrict the use of the floor to light traffic and non-harsh chemicals until the coating is fully cured (see technical data under full cure).  It is best to let the floor remain dry for the full cure cycle. Dependent on actual complete system application, surface may be slippery, especially when wet or contaminated; keep surface clean and dry.

LIMITATIONS:

  • Substrate temperature must be 5°F above dew point.
  • All new concrete must be cured for at least 30 days prior to application.
  • Physical properties are typical values and not specifications.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY
We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products

CHEMICAL RESISTANCE
(24-HOUR EXPOSURE TIME)

Acetic Acid  (10% Solution) Limited Negative Effect
Ammonium Hydroxide (10%) No Effect
Ammonium Nitrate (20%) No Effect
Benzene No Effect
Bleach No Effect
Brake Fluid No Effect
Butyl Alcohol No Effect
Carbon Tetrachloride No Effect
Chloroform No Effect
Citric Acid (10% Solution) Limited Negative Effect
d-Limonene No Effect
Ethyl Alcohol No Effect
Ethylene Glycol Limited Negative Effect
Gasoline No Effect
Formaldehyde (40%) No Effect
Gasoline No Effect
Hydrochloric Acid (10%) Limited Negative Effect
Hydrochloric Acid (30%) Limited Negative Effect
Iodine Yellow Staining
Isopropanol Limited Negative Effect
Jet Fuel No Effect
Methanol Visible damage
Methylene Chloride Visible Damage

Methyl Ethyl Ketone Limited Negative Effect
Mineral Spirits No Effect
Motor Oil No Effect
Nitric Acid (10%) Limited Negative Effect
Oleic Acid No Effect
Phosphoric Acid (50%) Limited Negative Effect
Skydrol No Effect
Sodium Chloride (20%) No Effect
Sodium Hydroxide (50%) No Effect
Sulfuric Acid (37%) Moderate Negative Effect
TSP (10%) No Effect
Vegetable Oil No Effect
Xylene No Effect
