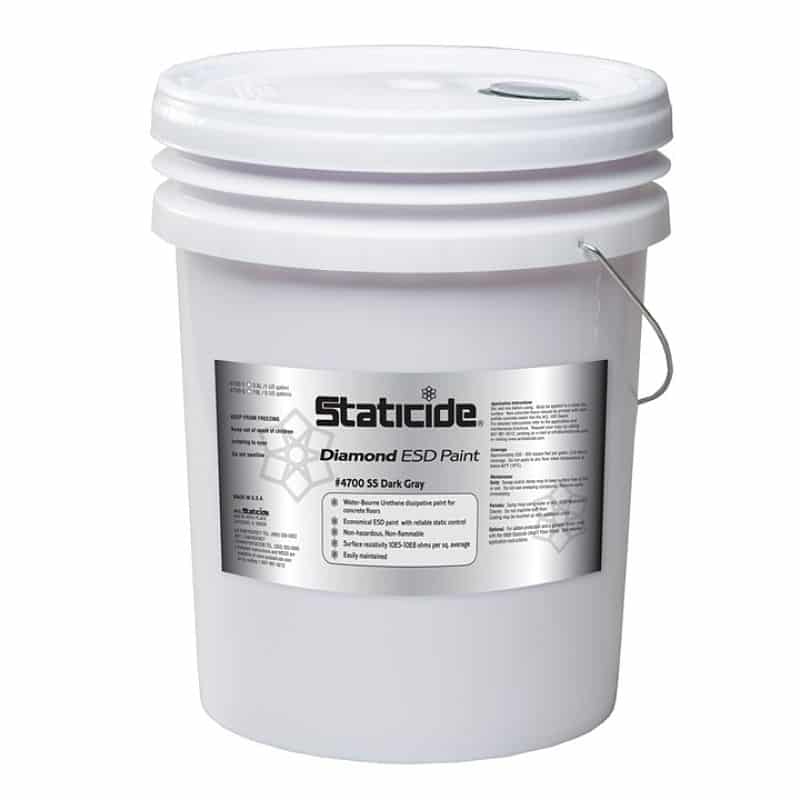

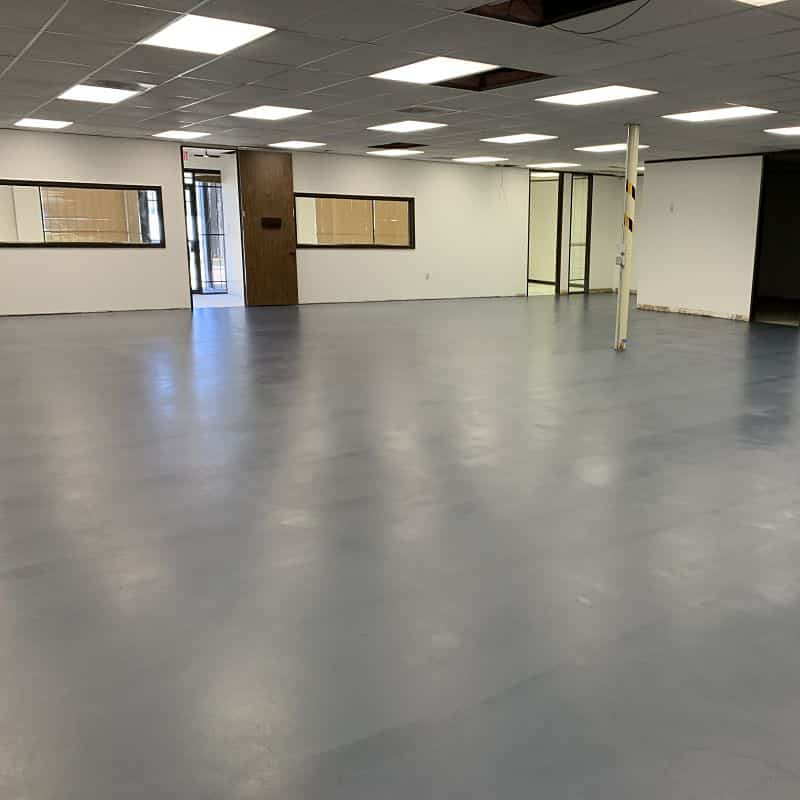

ACL 4700SS ESD Static Dissipative Floor Paint For Cost Effective Static Control | ANSI/ESD S20.20-2014

4700 SS is an economical solution to your ESD floor coating and static control protection needs.  As a carbon-loaded water-based blended acrylic polyurethane coating for concrete, 4700SS dissipates static discharge for cost-effective static control on concrete and other unfinished hard floor surfaces. Surface resistivity measures in the range of static dissipative: 105 to 108 ohms.  Conforms to ANSI/ESD S20.20-2014 when tested according to ANSI/ESD STM7.1

4700SS is a low VOC, water based formula that withstands alcohol, oils, gasoline, brake fluid, anti-freeze, flux and most common electronic chemicals. 4700SS outperforms leading ESD paints.

The 4700SS is an easy to apply one part system that can be applied by roller, sprayer or brush.  The 4700SS is available in a standard dark gray color and comes in 1 gallon and 5 gallon pails.

PRIMER:  For applying directly to VCT, ceramic tile, vinyl, linoleum or asbestos mastics, cutback and carpet glues with minimal preparation consider our Perfect Primer Sealer.

TOPCOAT: Optional:  None required.  For additional physical protection as a low cost sacrificial option, use the 4000 Acrylic Static Dissipative Clear Floor Finish

When a primer is desired, use the matching ACL 10-R primer.

For applying directly to VCT, ceramic tile, vinyl, linoleum or asbestos mastics and cutback and carpet glues with minimal preparation consider our Perfect Primer Sealer.

We offer the option to include a Two-inch-wide copper grounding strip for grounding to earth grounds. Copper is 1.4 mil thickness (2.6 mil thickness with the conductive adhesive backing).  Recommend at least 1 grounding strip every 1,000 sq’ of project surface area.  See the guide:  HOW TO GROUND ESD COATINGS

For ESD projects requiring a wider selection of colors on a broader range of surfaces, see our 6700 ESD Premium Anti-Static Paint which comes in 9 colors in an easy to apply one part coating.

For floor surfaces subject to heavy use including forklift and pallet jack traffic, see our GroundWorx Ultra Coating System which includes a high performance 2 part 100% solids epoxy basecoat and high solids urethane topcoat for excellent ESD anti-static control in a physically demanding environment.

For more information on anti-static floor systems, see our video library.

Where is 4700SS used?

  • Electronics manufacturing
  • Electronics assembly areas
  • ESD protected areas

Why 4700SS ESD Anti-Static Floor Paint?

  • Provides 100% anti-static control, even at low levels of humidity
  • Conforms to ANSI/ESD S20.20-2014 when tested according to ANSI/ESD STM7.1
  • Static dissipative: 105 to 108 ohms
  • Low VOC, less than 125 g/L.
  • Resists yellowing, color fading.
  • Water based formula with easy soap and water cleanup.
  • Economical, low cost per square foot (m2) application
  • Designed for concrete floors
  • Available in dark gray only
  • Withstands alcohol, oil, gasoline and most common electronic chemicals
  • Biodegradeable – Non-hazardous | Non-flammable

TECHNICAL INFORMATION

Color Dark gray
Sheen/Gloss Level Satin sheen
Resistivity 105 to 108 ohms per square average
Dry To Re-Coat 4 hours @75F
#Coats Recommended 2 coats
Material Type Blended Acrylic Polyurethane
Solids 26%
Application method Airless sprayer, roller, brush
Where can it be used Horizontal surfaces
Back in-service Time 12 hours light traffic, 3 days for normal traffic
Low Application Temperature 60F|  C
Base  Water
VOC Content  < .99 lbs/gal
Use on Material Concrete and other hard surfaces
Coverage Rate – 2 Coats recommended Square Feet/Gallon Per Coat
Average concrete surface 250 – 300

APPLICATION INSTRUCTIONS

Recommendations before beginning:

  • Read this entire document before application
  • Always wear protective goggles.
  • Apply a test patch of ACL 10R Sealer / Primer and ESD paint for adhesion, abrasion, resistivity and aesthetics prior to coating large areas.
  • Average Coverage: 250-300 sq. ft. per gallon
  • For best results, seal concrete floors with ACL 10R Sealer /Primer prior to applying ESD paint.
  • For best results, apply ACL 10R Sealer /Primer and ESD paint at temperatures between 60°F-80°F.
  • Mix products thoroughly before using, including the ACL 10R Sealer /Primer.
  • Two coats are not required, but may be preferred.

NEW CONCRETE FLOORS
New concrete should cure for a minimum of thirty days before coating with ACL 10R Sealer / Primer or ESD paint.

1. Clean and remove dirt/grease with detergent solution followed by a clean water rinse.
2. Acid etch with muriatic acid following muriatic acid manufacturer’s directions.
3. Rinse twice with warm water. Residual acid, stripper or detergent will detrimentally affect the paint adhesion.
4. Test with litmus paper to ensure all the acid is removed and the floor has a neutral pH. Allow to dry 24 hours.
5. Determine porosity of floor using Porosity Test found on page 3 of this manual. Very dense, non-porous or treated concrete may require additional acid treatment.
6. Using a ¼” fine roller, squeegee, or airless spraying equipment, apply one coat of ACL 10R Sealer/Primer until the surface is fully saturated. ACL 10R Sealer/Primer is ready-to-use and does not need thinning. Mix thoroughly. Do not flood coat the surface of the concrete. Remove all excess primer and trapped air by stroking applicator in tray before applying to surface. Apply the correct amount to the floor allowing the primer to be absorbed by the concrete.
7. Allow to dry for 2-4 hours. Check for dryness and adhesion. Use Dryness Test found on page 3 of this document.
8. After floor has dried, check room and floor temperature. Do not apply paint if room and floor temperature is less than 60°F.
9. Thoroughly mix paint with mixer or stirrer. This will ensure that the conductive additives are properly dispersed, allowing for proper adhesion and conductivity.
10. Pour a quantity of paint in a roller tray and completely wet the roller. A ¼” cotton or polyester nap roller with a five foot extension handle is recommended. Apply paint in continuous strokes assuring complete coverage.
11. Use a china white, nylon, or animal hair fine bristle brush to paint hard to reach areas and trim.
12. Allow floor to dry overnight at not less than 60°F before allowing light foot traffic to resume on the surface.
13. After drying, test the floor with a surface resistivity meter. If the reading is greater than 108 ohms per square and/or the readings on five separate test spots on the floor differ by more than a decade, apply a second coat of paint.
14. Allow floor to dry 3 days (72 hours minimum) at not less than 60°F before allowing general industrial traffic to resume.
15. Allow floor to dry 3 days (72 hours minimum) at not less than 60°F if applying optional coat of ESD floor finish. ACL dissipative floor finishes will provide an increase in gloss and durability.

OLD CONCRETE FLOORS
*NOTE* Simple cleaning may be insufficient to obtain maximum adhesion of paint to old concrete floors. Prior maintenance and exposure to polyethylene wax, silicone, epoxy sealers, oil spills and other coatings or chemicals will adversely affect product performance.

1. Clean and wash the floor. Apply a test patch. If the test patch is acceptable, follow the instructions under “NEW CONCRETE FLOORS” starting at step #6.
2. If the test patch shows unacceptable adhesion after standing five days, proceed with the following:
a. Grit sand or solvent clean the concrete to remove all embedded sealers, waxes, floor polishes, oils, greases, fluids, and chemical spills of any type. * NOTE* Consult your concrete contractor for details on proper equipment for floor sanding.
b. After sanding, wash the floor with detergent and warm water then wet vacuum.
c. Allow the floor to dry completely. Apply sealer/primer (following instructions) or coat of paint.
d. Apply another test patch. If adhesion, abrasion, resistance and aesthetics are acceptable, follow the instructions under “NEW CONCRETE FLOORS” starting at step #9.

How to Ground 4700SS:  We also offer the option to include a Two-inch-wide copper grounding strip for grounding to earth grounds. Copper is 1.4 mil thickness (2.6 mil thickness with the conductive adhesive backing).  Recommend at least 1 grounding strip every 1,000 sq’ of project surface area.  See the guide:  HOW TO GROUND ESD COATINGS

Porosity Test: Pour one ounce of water onto the concrete. If the water soaks in, the surface is porous enough for coating. If water beads up on the concrete, the surface is not porous and further treatment is required. The presence of laitance (fine white particles) will also require abrasive blasting, sanding or abrading to assure removal.

Dryness Test: Place a weighted rubber mat, piece of plastic sheet or other non-porous material on the surface for 24 hours. If the underside of the mat, plastic or concrete surface is dry after that time, then the floor is ready for the next step. If moisture persists, concrete surface cannot be coated.

Apply 1 copper grounding strip every 1,000 sq’ of project surface area.

How to Ground an ESD Floor Coating

How to Ground an ESD Floor Coating

See the guide:
