E352P Hi-Gloss Polyester Polyurethane Floor Coating | Chemical Abrasion Resistant | Exterior Interior

A two component polyester aliphatic isocyanate polyurethane coating.  This special CRU formulation is used to impart the highest chemical resistance, gloss and color retention of a polyurethane coating, yet retain the outstanding tough, abrasive resistant film which provides excellent exterior durability, chalk resistance, color stability and long term gloss retention.

Ideal for use as a clear or pigmented topcoat in both interior and exterior Industrial, Commercial and Marine applications.  Not for use directly on unprimed surfaces and not designed for submerged service.   Can be applied to existing epoxy, polyaspartic or urethane coatings (do not apply to acrylic paint) after proper preparation including sanding and wiping with acetone solvent right before application (apply E352P as soon as acetone solvent is dry).

The clear E352P-CLR is is ideal as a final clear top coat for color quartz, vinyl/acrylic chip decorative floors, pigmented epoxy and polyurethane coatings, epoxy slurries/mortars, interior wood, brick and warehouse floor coatings.

For vertical topcoat applications suggest our E370P Hi-Gloss Polyurethane.

Available in 1.5 gallon kit and 15 gallon kit (15 gallon kit special order only) with mix ratio 2:1 by volume (2 parts Base Part A to 1 part Hardener Part B).  Comes in clear and 11 colors including full range of safety colors.  Long 4 hour POT life @ 75ºF.

Apply at 2.0-3.0 dry mils per coat, Pigmented 320-480 sq’/gallon, Clear 290-440 sq’/gallon

Application using a lambs wool application, short nap roller or brush.

PRIMER: Recommend the 5015 Water Based Epoxy Primer and for heavier duty or steel applications the E15M Epoxy Mastic PrimerDo not apply to unprimed surfaces.  Can be applied to existing epoxy, polyaspartic or urethane coatings after proper preparation including sanding using 100 grit and wiping with acetone solvent right before application (apply E352P as soon as acetone solvent is dry).

TOPCOAT:  Can apply multiple coats of the E352P

Where is the E352P Polyester Polyurethane used?

  • Garage floors
  • Warehouse floors
  • Production floor areas
  • Aircraft hanger floors
  • Factories
  • Assembly plants
  • labs
  • institutions
  • chemical processing plants
  • power plants
  • dairies
  • pulp and paper mills
  • sewage and waste water treatment facilities
  • fertilizer plants
  • petroleum refineries
  • electric generating stations
  • coal handling operations
  • marine installations,

Why E352P Polyester Polyurethane Coating?

  • Great Interior & Exterior Horizontal Concrete & Steel Protection
  • Exceptional Exterior Durability
  • Excellent weather resistance
  • Non-chalking and non-yellowing
  • Excellent gloss and color retention
  • Extremely tough, yet flexible
  • A tile-like finish.
  • Easy to clean
  • Excellent chemical and stain resistance
  • Highly resistant to abrasion and impact
  • Outstanding wearing properties
  • Handles up to 250°F Dry Service
  • Long 4 hour POT life @ 75ºF
  • Available in clear and 11 colors

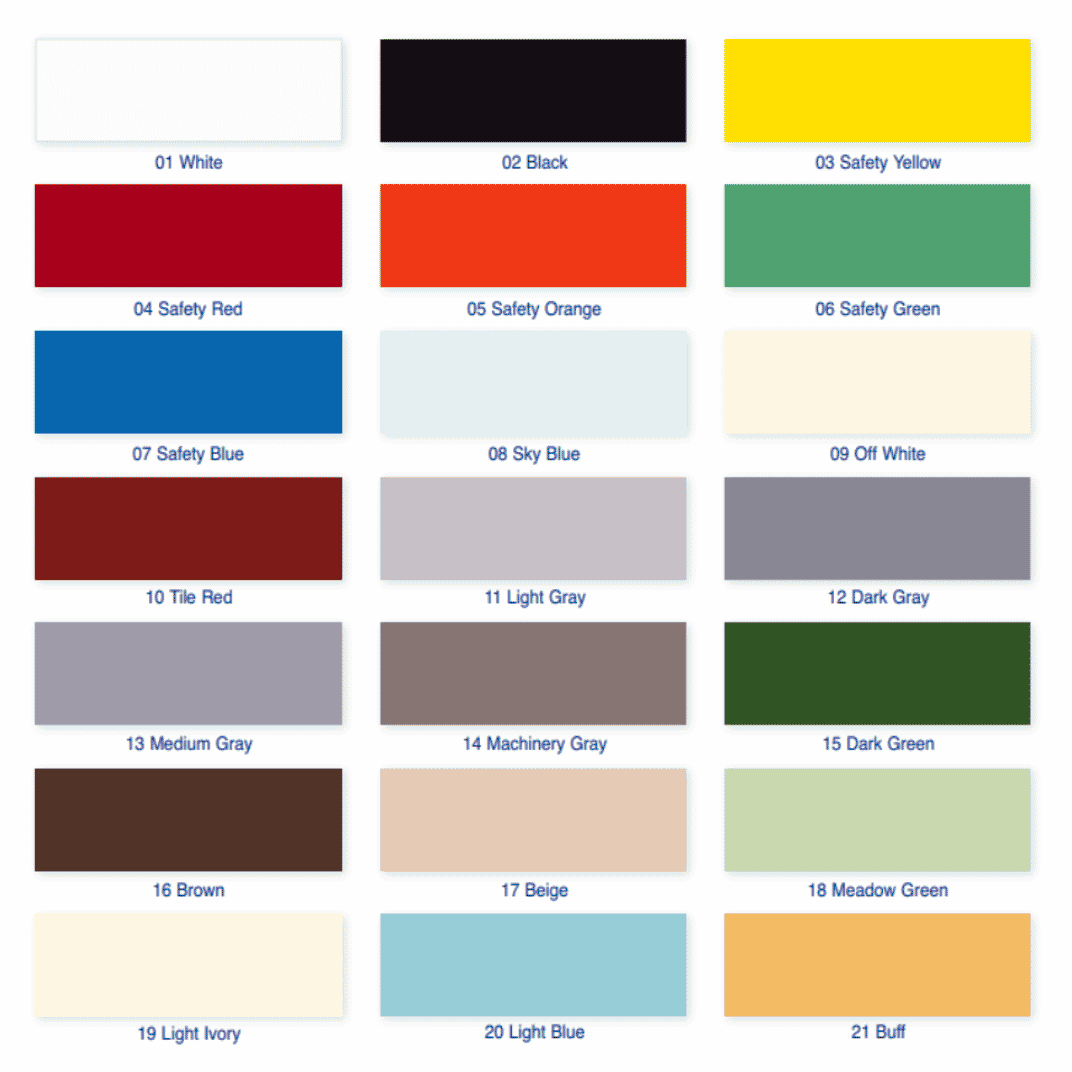

Polyurethane Color Chart

SPECIFICATIONS

Solids By Volume Pigmented 62% +/- 2% (white), Clear 55% +/- 2%
VOC Pigmented 372g/L, Clear 389g/L
Colors Clear, White, Lt. Gray, Tile Red, Off White,  Med. Gray, Dark Gray, Black, Beige, Safety Blue,
Caution Yellow, Caution Red
Recommended Film Thickness 2.0-3.0 dry mils per coat, Pigmented 320-480 sq’/gallon, Clear 290-440 sq’/gallon
Shelf Life 12 months minimum in unopened container
Packaging 1.5 gallon kit, 15 gallon kits (15 gallon kits ship LTL Freight only special order)
Mixing ratio 2:1 by volume.  Mix 2 parts Base (Part A) to 1 part Hardener (Part B)
Gloss Level High Gloss:   60º GLOSS: 90 ± 5%
Abrasion Resistant CS-17 Wheel, 1000 cycles, 1 kg load:  Pigmented 28 mg & Clear 38 mg ASTM D4060
Heat Resistance Colored 250ºF  & Clear 200ºF ASTM D2485
Salt Fog Passes 1,000 hours  ASTM B117
Adhesion Cross Cut Rating of 5   ASTM 3359
Impact Resistance Pigmented Passes Direct 160 inch lbs, Reverse 140 inch lbs , Clear Passed Direct 120 inch lbs  ASTM D2794
Flexibility Passes 180º Bend 1/8″ mandrel ASTM D522
Pencil Hardness Gauge Method Colored 3H, Clear 2H  ASTM D3363
Sward Hardness Result 68  ASTM D2134

COVERAGE RATE

Coverage Rate Pigmented 320-480 Sq’/Gallon, Clear 290-440 Sq’/Gallon

CURE SCHEDULE

Temperature Tack Free Min Recoat Max Recoat Foot Traffic Heavy/Vehicular Traffic
90ºF 1.5 hours 6 hours 18 hours 18 hours 48 hours
75ºF 3 hours 8 hours 24 hours 24 hours 72 hours
50ºF 5 hours 24 hours 48 hours 48 hours 5 days

Times may be longer for thickness above 2.5 dry mils.  For safety and proper product curing, good ventilation is necessary when painting indoors or in confined areas.  Be sure the batch numbers are all the same to provide  uniform color.  Heaters that emit carbon dioxide and carbon monoxide can cause the coating to yellow.

APPLICATION TEMPERATURE: 50ºF – 100ºF Do not apply to surfaces below 50°F or above 100°F. Do not apply over dew or frost. The surface temperature should be at least 5°F above the dew point.

CHEMICAL RESISTANCE, SPLASH and SPILL TESTING

Not recommended for Immersion Conditions.

Antifreeze Glucose Orange Juice
Barium Sulfate Grape Juice Peanut Oil
Beer Glycerin Potassium Hydroxide
Brake Fluid Hydraulic Fluid Power Steering Fluid
Brine Jet Fuel, JP-4, JP-5 Rum
Citric Acid Kerosene Sea Water
Corn Oil Ketchup
Cutting Oils Lactic Acid 10% Sodium Hydroxide 20%
Crude Oil Lard Soybean Oil
Diesel Fuel Linseed Oil Sulfuric Acid 10%
Distilled Water Tannic Acid
Ethylene Oxide Milk Vegetable Oil
Ethylene Gylcol Mineral Oil Vodka
Fuel Oil Mineral Spirits Wine
Gasoline, Avaiation Molasses Whiskey
Gasoline, Regular Motor Oil
Gasoline, Premium Olive Oil

MIXING AND APPLICATION INSTRUCTIONS

SURFACE PREPARATION  E352P Polyester Polyurethane is a top coat only and is not recommended to be used directly over unprimed surfaces. Apply over appropriate primers or intermediate coats. Surfaces must be free from all oil, grease, dirt, water, or other foreign matter.  E352P Polyurethane is not recommended for immersion service.

Steel: All surface contamination, such as dirt, dust, grease, oil and other deposits must be removed prior to abrasive blast cleaning. Solvent cleaning as outlined in Steel Structures Painting Council’s Specification SSPC-SPI should be used to remove all foreign matter. If previous service has left surface deposits of chemicals, they also must be removed by pressure washing and followed by a thorough water rinsing.

Remove all rust, mill scale, loose paint and any previous existing coatings by dry abrasive blasting all steel surfaces before applying the coating system.

Recommended primers for the E352P are E15M Chemical Mastic, PC-2.8 Epoxy Coating, PC-517 Epoxy Mastic,  E100 Aluminum Polyurethane and PC-110 Epoxy Primer. Follow the recommended recoat time per label in structions. In some cases an intermediate coat may need to be applied when a 3 coat system is necessary or desired.

Marginally Prepared Steel Surfaces:

Degrease and chemically clean surfaces in accordance to SSPC-SP1 Solvent Cleaning spec to remove all oils, grease, and other soluble contaminants.  If steel is chemically contaminated (e.g., acid, caustic, or salts), high pressure water cleaning at a minimum of 5,000 psi is recommended to remove chemicals.  The pH of steel should be tested to ensure that surface of steel is between 7.0-8.5 pH.  After the above process has been completed, power tool cleaning is to be done.  Power tool clean to remove all mill scale, loose rust, loose paint and other detrimental foreign matter.  Apply two coats of our E100 Aluminum Polyurethane at 2-3 mils DFT.  Minimum recoat time for E100 is two (2) hours, maximum recoat time is six (6) hours at 75°F and 50% relative humidity.  E15M Chemical Mastic or PC-636 Low Temp.  Epoxy may also be used as a primer under the E352P Polyester Polyurethane on marginally prepared surfaces.

Concrete/Masonry Surfaces:

New concrete must be cured at least a minimum of twenty-eight (28) days before applying a coating.  All laitance, efflorescence, chemical contaminants, grease, oil, and other foreign material must be removed.  The  prepared surface must be clean, dry, and structurally sound.  Accepted methods of surface preparation are  dry abrasive blast, wet abrasive blast, vacuum shot blast, high pressure water blast, scarifying, scabbling and acid etch/water rinse.

Voids, cavities, spalled areas, and other structural defects should be trowel-grouted smooth with CF- 615  Epoxy Crack Filler or E1000 Epoxy Mortar.  Rub smooth with a hand grinding stone any burrs or high protruding aggregate left uneven by troweling.

Consult Gulf Coast Paint regarding the testing of the concrete for proper pH, vapor barrier testing and surface porosity.

Acceptable primers for the E352P Polyurethane are PC-149, PC-155, and PC-1703 Epoxy Concrete Primers. An Epoxy Intermediate coat may be needed if higher film build is necessary.   Products such as E15M, PC-636, PC-275, PC-517 or 100% solids materials such as PC-1803 or PC-1850 can be used.

MIXING INSTRUCTIONS

Stir each component to a uniform consistency, using a slow speed explosion proof variable speed drill with a Jiffy mixer.  Make sure any pigment settled to the bottom is incorporated.  Do not vary proportions.  E352P is prepared by mixing 2 parts Base (Part A) to 1 part Hardener (Part B) with the power mixer.  For rolling, thin up to 15% using SU-93, as needed (can substitute thinning up to 5% – 10% with a 100% Xylene).

For best mixing results and proper blending of parts A and B, recommend a Jiffy Mixer style drill mixer.

Use of an improper drill mixer can result in streaking of the color because the pigment has not been thoroughly blended.  It can also create curing problems if the hardener also called activator (Part B) is not thoroughly blended with the resin (Part A) which can cause some areas on your floor to remain soft and not harden properly.  DO NOT USE A PAINT MIXER.  Many mixing problems described above can be traced back to using a paint mixer..  DO NOT HAND MIX as this approach can also result in the same problems as using a paint mixer.

NOTE:  Always wear protective gloves and clothing while mixing and applying E352P.  Do not get on skin.

APPLICATION PROCEDURE

Best method of application is conventional or airless spray use up to 10% Thinner.  Flush equipment thoroughly with MEK solvent before using and use a moisture trap on the air supply.

Surfaces must be free from all oil, grease, water or other foreign matter.  Surface should be dry and above 50°F and rising.  Relative humidity should not exceed 85%.  CT-352 is moisture sensitive during application and initial cure.  Do not apply if surface temperature is within 5° of Dew Point.  Not recommended on floors, susceptible to hydrostatic pressure.   For safety and proper curing, proper ventilation is necessary throughout application and cure.  Any foodstuff and furnishings in the application area should be removed prior to application.  When using pigmented Intermediate Coats, be sure the batch numbers are all the same to provide a uniform color.

Do not apply to surfaces below 50°F or above 120°F.   Do not apply over dew or frost.  The surface temperature should be at least 5°F above the dew point.

RollerBest method of application is using ¼” – 3/8” shed resistant phenolic core rollers.  Pour material in a ribbon along the floor.  Roll in the same direction, always keeping a wet edge.  Do not over roll product. Thin up to 10% by volume with SU-93 Reducer, depending on temperature.

Brush – E352_ can be brushed by using pure Chinese bristle brushes.

CAUTION DANGER

E352P is flammable.  Keep away from all sources of ignition during mixing, application and cure.  Contains Aliphatic Polyisocyanates, N-Butyl Acetate, Xylene and PM Acetate.  The HARDENER (Part B) and mixtures of BASE (Part A) with HARDENER (Part B) can cause eye and skin burns as well as allergic reactions.  The use of goggles, fresh air masks or NIOSH approved respirators, protective skin cream and protective clothing is a recommended standard practice when spraying.  This product is sold without warranty as to performance expressed or implied.  Users are urged to make their own tests to determine the suitability for their particular conditions.

LIMITATIONS:

  • Do not apply over frost surfaces or extremely high humidity conditions.
  • Do not apply over expansion joints.
  • Do not apply if the surface temperature is within 5° of the dew point.
  • Partially used containers must be reclosed tightly to prevent moisture in air from reacting with material and forming a tough skin.  Skin can be removed and remaining material used.  Be sure to stir.

SEE MATERIAL SAFETY DATA SHEET FOR FULL SAFETY PRECAUTIONS.  FOR PROFESSIONAL AND INDUSTRIAL USE ONLY  KEEP AWAY FROM CHILDREN.  NOT FOR RESIDENTIAL USE NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE SAFETY DATA SHEET AND FOLLOW THE PRECAUTIONS TO PREVENT BODILY HARM.
