707HB High Build Epoxy

707HB is a two component 100% solids colored epoxy floor coating designed for applications where a high build impact and chemical resistant floor is needed. 707HB has good color stability and topcoating with an aliphatic urethane or polyaspartic is optional depending on color stability requirements.

Coverage rate for E707HB depends on how thick applied.  At 100% solids, nothing lost to evaporation after it dries (compare to 50% solids epoxy at big box stores which lose 1/2 of material in container to evaporation).  For garage floors recommended 10 mils minimum (160 sq’/gallon) epoxy basecoat thickness.  One 3 gallon kit of E707HB protects most 2 car garages, covering 480 sq’ at 10 mils thick in a one coat application (applied at 160 sq’/gallon).

Comes in 1.5 gallon kits 3 gallon kits and 15 gallon kits.  Available in a high gloss with a wide selection of 20 color options.  Requires use of compatible epoxy primer for best results.

PRIMER: Optional.  Recommend the E5015 Water Based Epoxy Primer available in 20 colors to easily match color of your topcoat.  For one day application consider the fast curing E5013 Water Based Epoxy Primer (recoat at 75F in 4 hours).

For applying directly to VCT, ceramic tile, vinyl, linoleum or asbestos mastics, cutback and carpet glues with minimal preparation consider our Perfect Primer Sealer.

TOPCOAT: Optional: Our 322HW Semi-Gloss Urethanefor solid color systems or when applying a clear topcoat to a flake floor system use E344QC Quick Cure High Gloss Polyaspartic  for increased UV stability.  Many urethane and polyaspartic coatings are acceptable

707HB High Build Epoxy Used?

  • Garages
  • Auto Service Centers
  • Warehouses
  • Laboratories
  • Aircraft Hangers
  • Cafeterias
  • Floors subject to frequent exposure to water and high humidity environments

Why 707HB Epoxy?

  • High Build – 100% Solids Commercial Epoxy
  • Long POT Life (working time) 30-50 min
  • Excellent Adhesion 450 psi
  • Abrasion resistant Only 32 mg loss (Tabor test)
  • Good Chemical Resistance
  • High build 12-30 mils one coat (53 – 130 sq’/gal)
  • Wide Variety of 20 Colors

SPECIFICATIONS

Solids By Weight 100%   By Volume 100%
VOC <2g/L (mixed)
Colors  Off white, off white, light gray, medium gray, tile red, beige, dark gray, brown, blue, light blue, green, safety traffic yellow, safety red, extra hide white
Recommended Film Thickness Apply at 12 – 30 mils
Coverage per Gallon 53 – 130 sq’/gal @12 – 30 mils thickness
Packaging  1.5 gallon kit, 3 gallon kit, and 1.5 gallon kit
Mix Ratio 2:1 mix ratio by volume
Shelf Life 1 year in unopened container
Finish High gloss (70-95 at 60 degrees @glossmeter)
Abrasion Resistance Tabor abrasor CS-17 wwheel with 1000 gram total load and 500 cycles = 32.0 mg loss
Impact Resistance Gardner impact, direct = 50 in. lb (passed)
Adhesion 450 psi @ecometer (concrete failure, no delamination)
Flexural Strength 5,400 psi @ASTM D790
Compressive Strength  9,100 psi @ASTM D695
Tensile Strength  4,800 psi @ASTM D638
Ultimate Elongation  3.1%
Viscosity Mixed = 1300 – 2300 cps (typical)
Hardness D = 80

COVERAGE RATE

Coverage Per Gallon 53 – 130 Sq’/Gal @12 – 30 Mils Thickness

CURE SCHEDULE

Pot Life – 1-1/2 gallon volume 30-50 min
Tack Free (dry to touch) @70F 5-8 hours
Recoat or Topcoat 8-12 hours
Light foot traffic 12-14 hours
Full cure (heavy traffic) 2-7 days

APPLICATION TEMPERATURE: 60-90 degrees F with relative humidity below 85%

CHEMICAL RESISTANCE

RATING
 acetic acid 5% B
 xylene C
 ethyl alcohol B
 skydrol B
 methanol A
 10% sodium hydroxide E
 50% sodium hydroxide D
 10% sulfuric acid C
 70% sulfuric acid A
10% HCI C
trichlorethylene B

Rating key: A – not recommended, B – 2 hour term splash spill, C – 8 hour term splash spill, D – 72 hour immersion, E – long term immersion.

MIXING AND APPLICATION INSTRUCTIONS

PRODUCT STORAGE: Store product in an area so as to bring the material to normal room temperature before using. Continuous storage should be between 60 and 90 degree F. Keep from freezing.

SURFACE PREPARATION: The most suitable surface preparation would be a fine brush blast (shot blast) to remove all laitance and provide a suitable profile. All dirt, foreign contaminants, oil and laitance must be removed to assure a trouble free bond to the substrate. A test should be made to determine that the concrete is dry; this can be done by placing a 4’X4’ plastic sheet on the substrate and taping down the edges. If after 24 hours, the substrate is still dry below the plastic sheet, then the substrate is dry enough to start coating.

PRIMING: A suitable primer should be used before applying this product. See the front side of this technical data for primer information. If a primer is not used, more porous substrates may cause outgassing and possible surface defects.

PRODUCT MIXING:This product has a mix ratio of 9.1# part A to 4.25# part B or two parts A to one part B by volume for standard colors (Example: to mix 1 gallon total E707HB to get started, measure 2/3 gallon Part A and mix with 1/3 gallon Part B).  Do not change the proportions  Standard packages are in pre-measured kits and should be mixed as supplied in the kit.

READ CAREFULLY.  Improper Mixing May Result In Product Failure.  This Product Has a 2 To 1 Mix Ratio By Volume- Mix 2 parts by volume Of Part A With 1 part by volume Of Part B. ( Example: to mix 1 gallon total E707HB to get started, measure 2/3 gallon Part A and mix with 1/3 gallon Part B).  Do not change the proportions and recommend do not mix more than you can use in 15 minutes.

Improper mixing may result in product failure.

For best mixing results and proper blending of parts A and B, recommend a Jiffy Mixer style drill mixer.

Mix part A (resin – color) separately in a container 4-6 minutes with a Jiffy Mixer first before combing parts A and B (hardener) together.  Clean mixing tool with solvent after mixing part A before mixing part B to prevent starting the chemical reaction and shortening cure time.  Only start mixing Parts A and B together when ready to start project.  Pour Part B into Part A while mixing at slow speed, 650 rpm until a uniform blend is evident and streak Free.  Avoid Whipping Air Into The Coating during mixing.  Mix completely for approximately one to two minutes.

Be sure to work the bottom and edges of the bucket to ensure the entire contents of each part are mixed. The colored veins need to disappear. If the two components are not mixed completely the epoxy will not cross-link well and can develop curing problems that will lead to a substandard coating.  In 6009 that is colored, improper mixing can result in uneven color when pigment is not fully blended.

It’s very important when mixing not to run the drill too fast or pump the mixing paddle up and down. Doing either of these this will introduce air into the mix which will be rolled into the coating and create air bubbles at the surface. The epoxy should have a nice even consistency without any color streaks.

Pour the E707HB out on the floor immediately after mixing and do not let the E707HB sit in the bucket Leaving it in the bucket for as little as a minute or two can shorten the pot life by half or more.

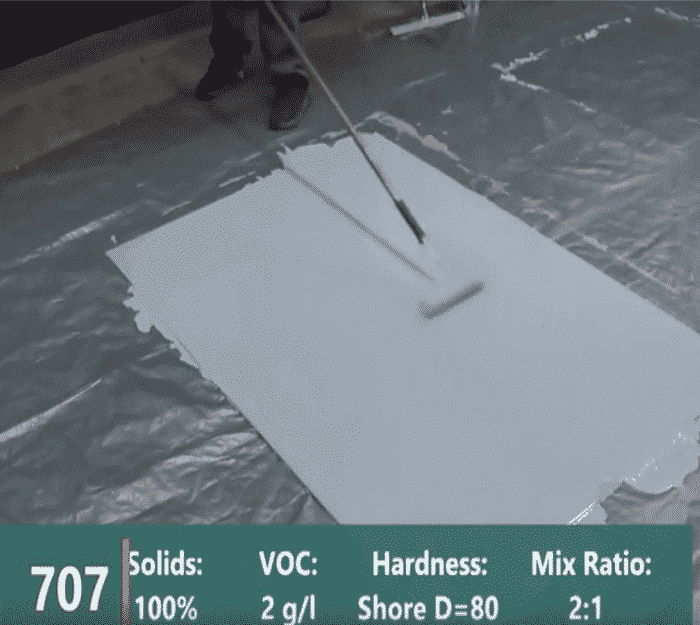

PRODUCT APPLICATION: The mixed material can be applied by brush or roller. However, the material can also be applied by a suitable serrated squeegee and then back rolled as long as the appropriate thickness recommendations are maintained. Maintain temperatures and relative humidity within the recommended ranges during the application and curing process. If concrete conditions or over aggressive mixing causes air entrapment, then an air release roller tool should be used prior to the coating tacking off to remove the air entrapped in the coating. Always maintain a wet edge to avoid color shading differences.

RECOAT OR TOPCOATING: If you opt to recoat or topcoat this product, you must first be sure that the coating has tacked off before recoating. However, all previous coats should be deglossed to insure a trouble free bond prior to application of recoats or topcoats. Colder temperatures will require more cure time for the product before recoating or topcoating can commence. Before recoating or topcoating, check for epoxy blushes (a whitish, greasy film, or deglossing). If a blush is present, it can be removed by any standard detergent cleaner prior to topcoating or recoating. Some standard epoxy coatings and urethanes as well as multiple coats of this product are compatible for use as a topcoat. 7)

CLEANUP: Use xylol

SURFACE CLEANING: Caution! Some cleaners may affect the color of the floor installed. Test each cleaner in a small area, utilizing your cleaning technique. If no ill effects are noted, you can continue to clean with the product and process tested.

RESTRICTIONS: Restrict the use of the surface to light duty and non-harsh chemicals until the coating is fully cured (see technical data under full cure). It is best to let the surface remain dry for the full cure cycle. Dependent on actual complete system application, surface may be slippery, especially when wet or contaminated; keep surface clean and dry.

LIMITATIONS

  • Colors or clarity for clear may be affected by high humidity, low temperatures, or chemical exposure.
  • For best results use a high quality 3/8” nap roller.
  • Color or gloss may be affected by environmental conditions like humidity, temperatures, chemicals, or exposure to lighting such as sodium vapor lights.
  • Colors may vary from batch to batch. Therefore, use only product from the same batch for an entire job.
  • Because of the short pot life and dry time, attention should be given to the trim work and tie-in areas to keep a wet edge so as to avoid roller marks, differences in color or shading problems.
  • This product is not UV color stable and may discolor when exposed to UV lighting.  Otherwise the color stability of this product is good.  Therefore a topcoat is option and dependent on the environment.
  • Light or bright colors may require a suitable primer or topcoat to achieve a satisfactory hide.
  • Substrate temperature must be 5°F above dew point.
  • All new concrete must be cured for at least 30 days.
  • Apply a suitable primer before using this product.
  • Physical properties are typical values and not specifications.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.
