AM1016 Anti-Microbial Mildew Resistant Anti-Slip Epoxy

AM1016 Anti-Microbial Mildew Resistant and Anti-Slip Epoxy Floor Coating is a two component plus aggregate water based epoxy coating specially designed for use on concrete floors subject to bare foot traffic such as in locker rooms, plants or other foot traffic areas where slips could occur.  Not designed for surfaces subject to regular wheeled traffic.

The AM1016 Epoxy contains an antimicrobial chemical agent to help prevent microorganisms from growing on the surface and are specially formulated to resist mildew growth on the coating film.   The dry coating film of these products are mildew resistant, resists mold fungus and resists stains by mold, In addition, the dry coating film inhibits the growth of bacterial odors, resists microbial odor development and  retards the growth and action of bacterial odors. As part of routine building maintenance, areas should be inspected for visible mold and the conditions causing the mold should be corrected to prevent mold from growing.

AM1016 offers a satin finish and anti-slip surface with good chemical resistance and abrasion resistance and substrate penetration rivaling solvent based products and wide selection 20 color options.  It comes in a 3 gallon kit complete with epoxy and aggregate that is packed in a 5 gallon plastic pail for easy mixing.

PRIMER: None required

TOPCOAT: Optional – Many products are suitable as topcoats including multiple coats of this product. For added chemical resistance, color stability or UV stability, topcoat with a suitable aliphatic urethane.  Recommend our AM322HW Semi-Gloss Urethane.

 Where is Anti-Microbial Mildew Resistant Anti-Slip Epoxy used?

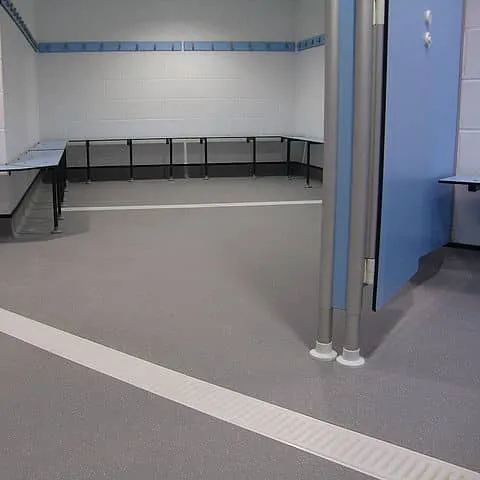

  • Locker rooms
  • Manufacturing plants
  • Concrete floors where slips can occur
  • Floors subject to frequent exposure to water and high humidity environments

Why AM1016 Epoxy Coating?

  • Adds a slip resistant finish to concrete floors
  • Anti-Microbial agent added to prevent surface growth of micro-organisms
  • Specially Formulated To Resist Growth Of Mold, Mildew, Fungus On The Surface and helps prevent odors that can result
  • Good for use on surfaces subject to bare foot traffic
  • Long 1 – 1.5 hour pot life
  • Excellent adhesion
  • Good chemical and abrasion resistance
  • Wide selection of clear plus 20 color options
  • Water base

SPECIFICATIONS

Solids By Weight 53%   By Volume 41%
VOC  130 g/L
Colors  Off white, light gray, medium gray, tile red, biege, carmel standard and dark gray, brown, light blue, tan, green
Recommended Film Thickness  10-14 mils wet, 4-6 mils dry
Coverage per Gallon  114 – 160 sq’/gal @4-6 mils wet thickness
Packaging  3 gallon kit
Mix Ratio 2 gallons part A per .5 gallons part B by volume plus 12.4 lbs aggregate (packed in 5 gallon plastic pail)
Shelf Life 1 year in unopened container
Finish  Satin gloss non-slip texture
Abrasion Resistance Tabor abrasor CS-17 wwheel with 1000 gram total load and 500 cycles = 54  mg loss
Impact Resistance   Gardner impact, direct = 50 in. lb (passed)
Flexibility  No cracks on a 1/8″ mandre
Adhesion 425 psi @ecometer (concrete failure, no delamination)
Viscosity  Mixed = 1,700 – 2,500 cps (including aggregate) (typical)

CURE SCHEDULE

Pot Life – 1 gallon volume 1.0 – 1.5 hours
Tack Life (dry to touch) 5 – 8 hours
Recoat or Topcoat 7 – 10 hours
Light foot traffic 16 – 24 hours
Full cure (heavy traffic) 2 – 7   days

APPLICATION TEMPERATURE: 55-90 degrees F with relative humidity below 75%

CHEMICAL RESISTANCE

RATING
 acetic acid 5% B
 xylene B
 mek A
 gasoline B
 10% sodium hydroxide C
 50% sodium hydroxide B
 10% sulfuric B
 10% hydrochrolic acid B
 20% nitric acid A
ethylene gylycol C

Rating key: A – not recommended, B – 2 hour term splash spill, C – 8 hour term splash spill, D – 72 hour immersion, E – long term immersion.

MIXING AND APPLICATION INSTRUCTIONS

PRODUCT STORAGE: Store product in an area so as to bring the material to normal room temperature before using. Continuous storage should be between 60 and 90 degree F. Keep from freezing.

SURFACE PREPARATION: Surface preparation will vary according to the type of complete system to be applied. For a one or two coat thin build system (3-10 mils dry) we recommend either mechanical scarification or acid etching until a suitable profile is achieved. For a complete system build higher than 10 mils dry, we recommend a fine brush blast (shot blast). All dirt, oil, dust, foreign contaminants and laitance must be removed to assure a trouble free bond to the substrate. A test should be made to determine that the concrete has an appropriate vapor barrier. This can be done by placing a 4’ X 4’ plastic sheet on the substrate and taping down the edges. If after 24 hours, the substrate is still dry below the plastic sheet, then the substrate does not show signs of eventual hydrostatic pressure problems that may later cause disbonding. However, this product can be applied to a damp floor as long as there are no standing puddles.

PRODUCT MIXING: This product comes pre-packaged by weight. Kits should be mixed in their entirety. If partial kits are to be used, refer to the front of this technical data for proper weight mix ratios. After the two parts are combined, mix well with slow speed mixing equipment such as a jiffy mixer until the material is thoroughly mixed and streak free. This product is an emulsion product and should be mixed well before using. Periodically, remix to insure aggregate distribution consistency. Improper mixing may result in product failure. For best mixing results and proper blending of parts A and B, recommend a Jiffy Mixer style drill mixer.

PRODUCT APPLICATION: The mixed material can be applied by brush or 3/8″ nap lint free epoxy roller. Maintain temperatures within the recommended ranges during the application and curing process. Apply material with relative humidity within the parameters shown on the technical data. When the end of the pot life has been reached, you will find that the material becomes hard to apply and will actually tend to roll back up onto the roller. Do not try to continue application when the coating has reached this step.

RECOAT OR TOPCOATING: If you opt to recoat or topcoat this product, you must first be sure that all of the solvents and water have evaporated from the coating during the curing process. The information on the front side are reliable guidelines to follow. However, it is best to test the coating before recoating or topcoating. This can be done by pressing on the coating with your thumb to verify that no fingerprint impression is left. If no impression is created, then the recoat or topcoat can be started. Always remember that colder temperatures will require more cure time for the product before recoating or topcoating can commence. Before recoating or topcoating, check the coating to insure no epoxy blushes were developed (a whitish, greasy film or deglossing). If a blush is present, it must be removed prior to topcoating or recoating. Many epoxy overlays and coatings as well as urethanes are compatible for use as a topcoat for this product as well as multiple coats of this product.

CLEANUP: Use PM solvent.

FLOOR CLEANING: Caution! Some cleaners may affect the color of the floor installed. Test each cleaner in a small area, utilizing your cleaning technique. If no ill effects are noted, you can continue to clean with the product and process tested.

RESTRICTIONS: Restrict the use of the floor to light traffic and non-harsh chemicals until the coating is fully cured (see technical data under full cure). It is best to let the floor remain dry for the full cure cycle. Dependent on actual complete system application, surface may be slippery, especially when wet or contaminated; keep surface clean and dry.

LIMITATIONS:

  • Color may be affected by high humidity, low temperatures, chemical exposure or sodium vapor lighting.
  • Product will yellow in the presence of UV light.
  • For best results use a 1/4” nap roller
  • Slab on grade requires moisture barrier.
  • Substrate temperature must be 5 ° F above dew point.
  • All new concrete must be cured for at least 30 days.
  • Product color will vary from batch to batch. Therefore, use only product from the same batch for an entire job location.
  • Light or bright colors (off white etc.) may require multiple coats or a topcoat to achieve a satisfactory hide, depending on the substrate.
  • Physical properties listed on this technical data sheet are typical values and not specifications.
  • See tab for application instructions.
  • See Application tab for limitations of our liability and warranty

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products
