Return to previous page
  • Overview
  • Specs
  • Coverage Rate
  • Cure
  • Chemical
  • Application

E356HG High Gloss Moisture Cured Clear Urethane | One Part | UV Stable

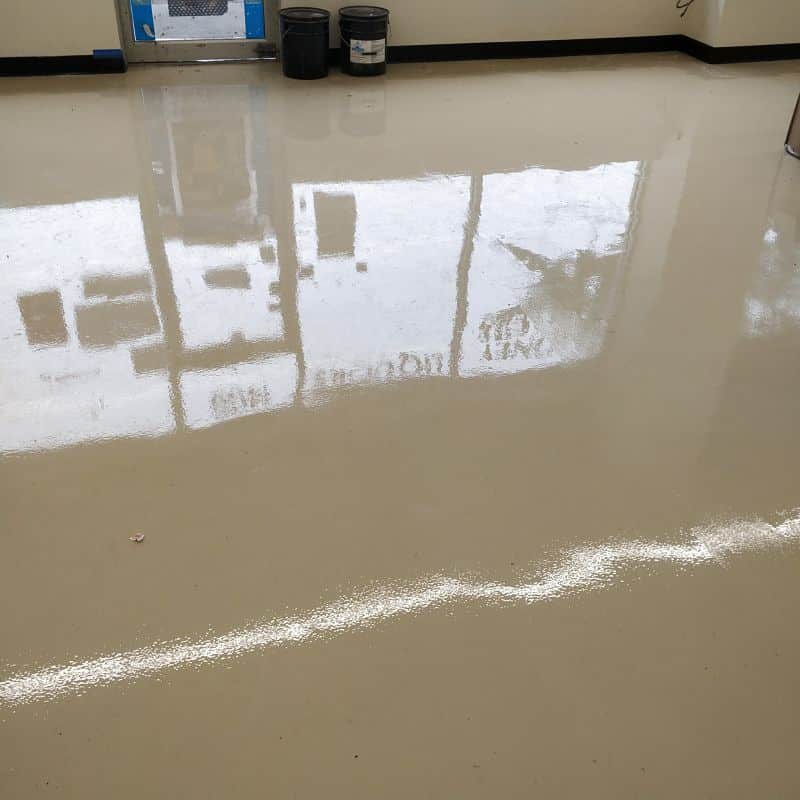

E356HG is a one component moisture cured clear High Gloss Polyurethane coating that exhibits exceptional abrasion resistance and great protection against a wide range of chemicals with good UV stability.  It is easy to use one part with no component mixing and a long 3-5 hour pot life for a wide range of both indoor commercial, industrial and residential concrete floor projects.

E357HBG works best when applied as topcoat to a flake/chip floor coating system or other textured surface.  Not meant for completely smooth surfaces and should not be applied directly to concrete without first applying a primer.  As topcoat over smooth coated surfaces need to de-gloss or lightly sand first.

Comes in 1 gallon and 5 gallon.  Not available for sale in California.  As a moisture cured urethane, do not apply E356HG in low humidity conditions or product may not cure properly as it needs humidity during the curing process.

For areas subject to constant exposure to water or high humidity, consider instead using a urethane topcoat that can help prevent growth of unwanted mildew AM322HW Anti-Microbial Mildew Resistant Urethane.

PRIMER:  Use E5013 Epoxy Clear Primer for projects to seal or decorate floors with a clear finish

TOPCOAT: None recommended (multiple coats of E356 are acceptable)

Where is E356HG Urethane Used?

  • Showrooms
  • Warehouses
  • Laboratories
  • Cafeterias
  • Indoor Chemical Exposure Areas with regards to concrete or cement

Why E356HG High Gloss Moisture Cured Urethane?

  • Superior abrasion resistance Only 4.4 mg loss (Tabor Abrasion test)
  • Outstanding Chemical Resistance
  • Excellent durability with impact resistance of 100 in lb (Gardner Impact test)
  • Aliphatic, UV Stable and will not yellow
  • Easy to Use One Part with Long 3-5 Hour Pot Life
  • Great for both Indoor Concrete Floor Projects
  • Solvent Based With Excellent adhesion


Solids – weight 65% +/- 3%
Solids – volume 60% +/- 3%
VOC  < 329 g/L   Meets OTC VOC rules. Not for sale in California
Colors Clear (gardner 1)
Recommended Film Thickness  3-5 mils wet, 2-3 mils dry
Coverage per Gallon  320 – 800 sq’/gal @2-5 mils wet thickness
Packaging  1 gallon and 5 gallon
Mix ratio One component product
Shelf Life 3 months in unopened container
Finish  High gloss (>70 at 60 degrees @glossmeter)
Abrasion Resistance Tabor abrasor CS-17 wwheel with 1000 gram total load and 500 cycles = 4.4  mg loss
Impact Resistance Gardner impact, direct = 100 in. lb (passed)
Flexibility  No cracks on a 1/8″ mandrel
Adhesion 360 psi @ecometer (concrete failure, no delamination)
Viscosity Less than 200  cps (typical)
 Hardness 2H


Coverage Per Gallon  320 – 800 Sq’/Gal @2-5 Mils Wet Thickness


Pot Life – 1 gallon volume 3-5 hours
Tack Life (dry to touch) 4-7 hours
Recoat or Topcoat 9-13 hours
Light foot traffic 13 – 24 hours
Full cure (heavy traffic) 3 – 5   days

APPLICATION TEMPERATURE: 50-90 degrees F with relative humidity between 60% and 90%


 acetic acid 5% C
 xylene E
 mek B
 methyl alcohol B
 gasoline D
 10% sodium hydroxide E
 50% sodium hydroxide D
 10% sulfuric D
 10% hydrochrolic acid D
 20% nitric acid C
ethylene gylycol D

Rating key: A – not recommended, B – 2 hour term splash spill, C – 8 hour term splash spill, D – 72 hour immersion, E – long term immersion.


PRODUCT STORAGE: Store product in an area so as to bring the material to normal room temperature before using. Continuous storage should be between 60 and 90 degree F. Keep from freezing.

SURFACE PREPARATION: Surface preparation will vary according to the type of complete system to be applied.  For a one or two coat thin build system (3-10 mils dry) we recommend either mechanical scarification or acid etching until a suitable profile is achieved.  For a complete system build higher than 10 mils dry, we recommend a fine brush blast (shot blast)  All dirt, oil, dust, foreign contaminants and laitance must be removed to assure a trouble free bond to the substrate.  A test should be made to determine that the concrete is dry; this can be done by placing a 4’X4’ plastic sheet on the substrate and taping down the edges.  If after 24 hours, the substrate is still dry below the plastic sheet, then the substrate is dry enough to start coating.  The plastic sheet testing is also a good method to determine if any hydrostatic pressure problems exist that may later cause disbonding.

PRODUCT MIXING:  This product is a one component product. Before using stir well. Avoid whipping air into the coating
when stirring.

For best mixing results recommend a Jiffy Mixer style drill mixer.

PRODUCT APPLICATION: The material can be applied by brush or roller. Be sure to thoroughly roll out the material in successive passes to make sure the substrate is well wetted out. Surface irregularities are possible over smooth floors. Read the SDS before using. Maintain temperatures within the recommended ranges during the application and curing process.  Properly prime the substrate. Too thick of an application or application to a damp surface may cause product failure. When using a primer other than those listed on the front of this technical data sheet, apply a test patch before over-coating the primer to determine suitability and compatibility. Because the product is applied as a very thin protective coating, some environments that are dusty, may deposit dust particles on the surface that could be visibly seen. Always apply a test patch prior to large scale applications to determine product suitability.

RECOAT OR TOPCOATING: Multiple coats of this product are acceptable. If you opt to recoat this product, you must first be sure that all of the solvents have evaporated from the coating during the curing process. The information on the front side are reliable guidelines to follow. However, it is best to test the coating before recoating or topcoating. This can be done by pressing on the coating with your thumb to verify that no fingerprint impression is left. If no impression is created, then the recoat can be started. Always remember that colder temperatures will require more cure time for the product
before recoating can commence. Before recoating or topcoating, check the coating to insure no contaminants exist such as an epoxy blush. If necessary, clean the surface prior to recoating with a standard type detergent cleaner. When recoating this product with subsequent coats of the urethane, it is advisable to apply the recoat before 24 hours passes. Also, it is advisable to degloss the previous coat to insure a trouble free bond, if more than 24 hours has elapsed since the previous coat.

CLEANUP: Use ketone solvents

SURFACE CLEANING: Caution! Some cleaners may affect the color of the floor installed. Test each cleaner in a small area, utilizing your cleaning technique. If no ill effects are noted, you can continue to clean with the product and process tested.

RESTRICTIONS: Restrict the use of the surface to light duty and non-harsh chemicals until the coating is fully cured (see technical data under full cure). It is best to let the surface remain dry for the full cure cycle. Dependent on actual complete system application, surface may be slippery, especially when wet or contaminated; keep surface clean and dry.


  • Clarity, gloss or color may be affected by high humidity, low temperatures, chemical exposure, tire contact or exposure to lighting such as sodium vapor lights.
  • For best results use a high quality 3/8” nap roller.
  • Slab on grade requires moisture barrier.
  • Substrate temperature must be 5°F above dew point.
  • All new concrete must be cured for at least 30 days.
  • If recoating after 24 hours, then the surface must be deglossed before the application.
  • Surface irregularities are possible over smooth basecoats and re-coats.
  • The concrete and joints must be thoroughly dry prior to application.
  • Applying the product thicker than recommended may result in product failure.
  • Applications in direct sunlight, high humidity or high temperatures may cause surface curing before suitable air release has occurred.
  • Physical properties are typical values and not specifications.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.
