E64 Rain Shield Elastomeric Coating | Flexible 400% Elongation | 100% Acrylic | Masonry Stucco Wood Metal Concrete | 800+ Colors

COVERAGE RATE

90-100 Square Feet Per Gallon  at 18 Mils wet (8.28 dry) film thickness

APPLICATION TEMPERATURE: Do not apply when temperatures are below 50°F or expects to drop below 40°F within a 24 hour period. If fog or rain is expected within 24 hours, DO NOT APPLY.

Technical Data
Material Type	Acrylic Elastomeric Latex
Solids by Volume	43-46%
Solids by Weight	57-60%
Water Vapor Transmission (Breathability)	Perms 12.51
Tensile Strength	275PSI (70°F) | 325 PSI (32°F)
Elongation	400% (70°F) | 325% (32°F)
VOC	50gm/L
Viscosity	118-123 KU at 77°
pH	8.5-9.0
Surface Dry Time	2 Hours
Recoat Dry Time	Overnight
Application Temp.	45°F-90°F



Physical or Performance Properties	Test Method	Results
Water Vapor Transmission	ASTM E96	Perms 12.51
Water Vapor Transmission	ASTM D1653	Pending
Tensile Strength	ASTM D412-87	275 PSI (70°F) 325 PSI (32°F)
Elongation	ASTM D412-87	400% (70°F) 325% (32°F)
Mildew Resistance	MIL STD 810D	Very Good
Freeze Thaw Resistance	ICBO Method	50+ Cycles Pass
Accelerated Weathering	1500 Hours in QUV Machine	No Effect on Shades or Film Integrity
Salt Fog Resistance	ASTM B117-90 (TT-C-555B)	500 hours- no yellowing or adverse effects
Flexibility	ASTMB1737 (TT-CC-555B)	0°C 1/8” Mandrell Pass
Gloss, Specular	ASTM D523-90	7-10 pts at 60° Angle
Flash Point	ASTM D56-87	200°F
Chemical Resistance	ASTM D1308-87	Mineral Spirits – No Effect
Detergent Resistance	ASTM D2248-89	Ammonia – No Effect
Dirt Collection	ASTM D3719-87	Good
Dirt Resistance	Lab Value	Excellent
pH	Lab Value	8.5-9.0
Resistance to Wind Driven Rain	TTC-55-B	Pass

APPLICATION INSTRUCTIONS FOLLOW THESE SIMPLE APPLICATION STEPS

Surface Preparation:

Cleaning and General Preparation: Loose or peeling coatings must be removed by high pressure water blasting or other appropriate means. Remove all loose or defective concrete or masonry and any surface contaminates such as dirt, oils, mildew, chalk and efflorescence which may adversely affect product adhesion and performance.

Priming:

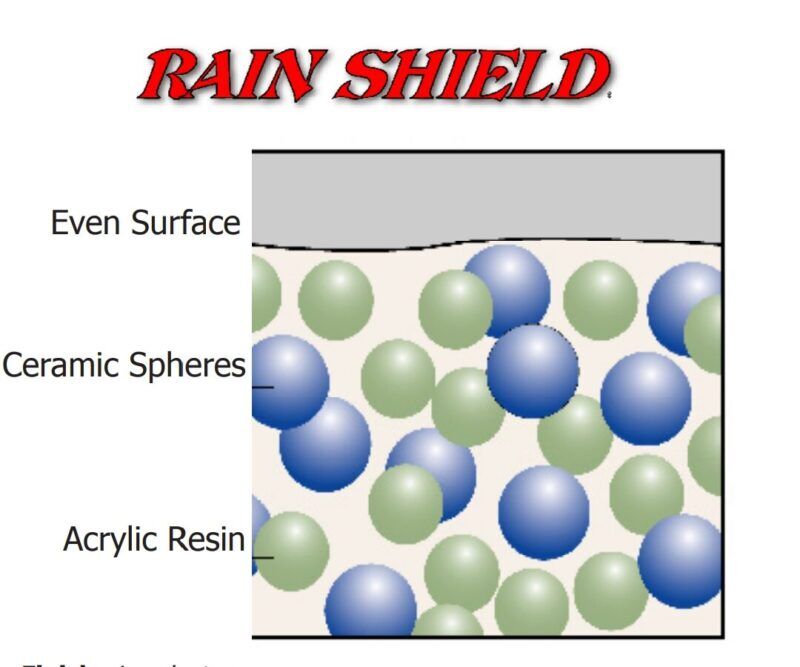

All surfaces should be primed with Rain Shield #6475 Acrylic Exterior Primer which contains ceramic spheres and special
additives to insure maximum adhesion of the coating system. NOTE: Applied primer which as been exposed to dirt, dust, salt air,
or chemical environments must be washed down and re-primed before the top coat is applied.

Application Instructions:

Apply by brush, roller or spray. MIX THOROUGHLY PRIOR TO USE. For best mixing results, recommend a Jiffy style drill mixer. Spray application: Use heavy duty conventional airless pump with minimum rating of 1500 P.S.I. with a .021 spray tip

Drying Time:

Dries to touch in two hours, recoat overnight. Drying time will vary depending upon temperature, humidity and film thickness. Do not apply under visible wet conditions.

Limitations:

Do not apply over mildew Not recommended for below grade (NOTE: Retaining walls, planter boxes etc. must be waterproofed on the backside with a below grade waterproofing type material prior to back filling). Not recommended for application to frost covered surfaces. Not recommended for application if rain is expected within 24 hours. Do not apply when temperatures are below 50°F or expects to drop below 40°F within a 24 hour period or when fog or rain is in the 24 hour forecast.

Joint and Large Crack Treatment:

Perimeter joints between unlike materials such as around doors, windows, vents, etc. and active joints such as curtain wall joints, expansion and control joints must be caulked and filled with an authorized elastomeric caulk carefully following the manufacturer’s
specifications.

Efflorescence:

Must be removed by using Restore-N-Prep  OR by washing with a 10% Muriatic Acid Solution.

Mildew:

Mildew is a fungus, brown, black, grey or white in color which will rapidly grow through any coating applied over it. A solution of
50% household bleach and 50% water will kill the mildew. Rinse thoroughly. See precautions on bleach label before using.

Clean Up:

Clean tools and hands with warm soapy water and rinse thoroughly.

Thinning:

SPRAY APPLICATION: DO NOT THIN!!!

Maintenance:

Rain Shield systems are designed to be waterproof and can be water blasted to remove any dirt that may have accumulated on the surface over several years. Stubborn stains can be brushed to loosen the dirt before washing.

Safety, Health & Environmental Recommendations:

Use appropriate personal protective equipment. Consult label or material safety data sheet available in the Document Library.
