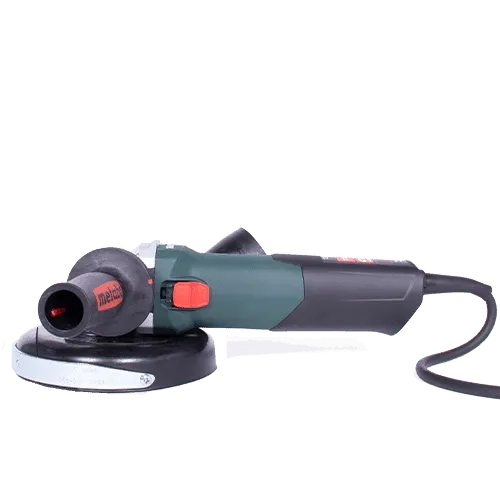

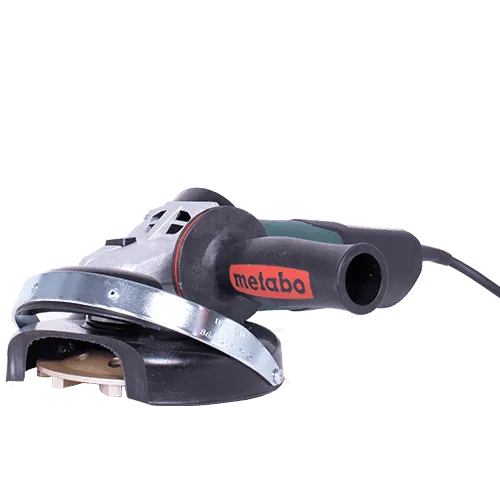

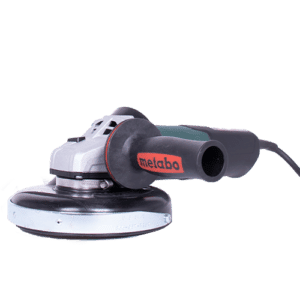

5″ Concrete Pro Hand Grinder Kit | Metabo WEV-125 Quick HT With Dust Shroud & (1) 9 Segment Wheel

The 5” Metabo WEV-125 Quick HT Grinder-vac is a hand held concrete surface grinder that is designed to prepare concrete surfaces prior to application of epoxy, polyaspartic and urethane coatings and collect the dust at the same time while hooked up to a vacuum (vacuum attachment sold separately).

This heavy duty 13.5 amp 2800-9600 rpm 120V grinder is considered a “must have” for any industrial flooring contractor that applies floor coatings and needs to prepare the concrete or needs to remove old coatings, carpet glue and rough up the concrete or grind down high spots.  Hand-held units are great for smaller jobs or in combination with walk-behind grinders on larger projects

The 5” Grinder (uses 4.5″ blades) is designed to grind edges, tight areas, underneath fixtures or other areas where a larger floor grinder or shotblaster will not reach.  Production capacity of the 5″ grinder is rated between 75 to 150 sq’/hour with actual preparation and removal speed depending on conditions.

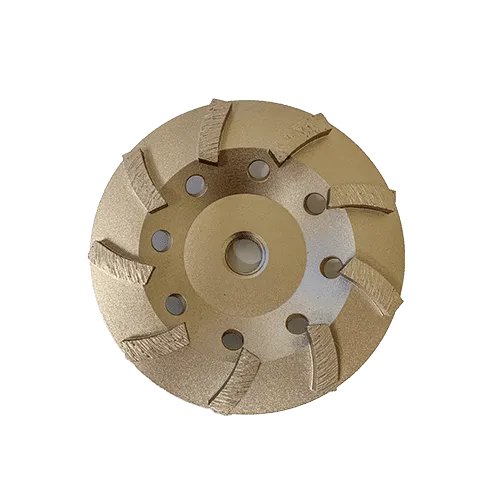

This setup comes with the U.S.SAWS Generation 2 dust shroud that can be hooked up to a variety of dust collection systems for dust containment, a Metabo WEV-125 Quick HT Grinder and (1) 4.5” 9 Segment Diamond Turbo Cup Threaded Arbor Wheel.  For Replacement threaded cup wheels see ECW45PR9RTB.

To remove dust while using the 5″ concrete grinder kit and turn your Shop-Vac into an effective, industrial dust collector, removing most of the concrete dust that passes from your grinder or saw’s dust shroud before it reaches your vacuum’s filter see the US Saws Cycvlone Pre Separator


  • Concrete Floor Projects
  • Corners and hard to get to places on concrete floors
  • Vertical Concrete Curbing along Garage Walls
  • Concrete Steps
  • Old Coating Removal Projects
  • Removal of old paint, epoxy, polyaspartic, urethane coatings
  • Removal of glue on floors

WHY the 5″ Concrete Pro Hand Grinder Kit?

  • Hand-held units that are great for smaller jobs or in combination with walk-behind grinders on larger projects
  • Use on concrete for cleaning, leveling high spots or uneven floor surfaces, removing glues, mastic, epoxies and other coatings
  • May be connected to a variety of dust collection systems for dust containment
  • The unit’s polyurethane dust shroud is long lasting and is offered in full shrouds and convertible models that flip up to allow for edge work along walls
  • Kit include electric grinder, dust shroud (full or convertible), (1) 9 Segment Diamond Turbo Cup Arbor Wheel and hardware for mounting threaded diamond cup wheels, ZEC wheels, or polishing pads



Amps 13.5 amps
Rated input power 1550 W
No load speed 2800-9600 rpm
Revolutions at rated load 9600 rpm
Torque  37 in-lbs
Spindle Thread 5/8″-11 unc
Weight (without power cable or shroud) 5.5 lbs
Cable length 8 ft
Noise Emission
Sound pressure level 93 dB(A)
Sound power level (L wA) 104 dB(A)
