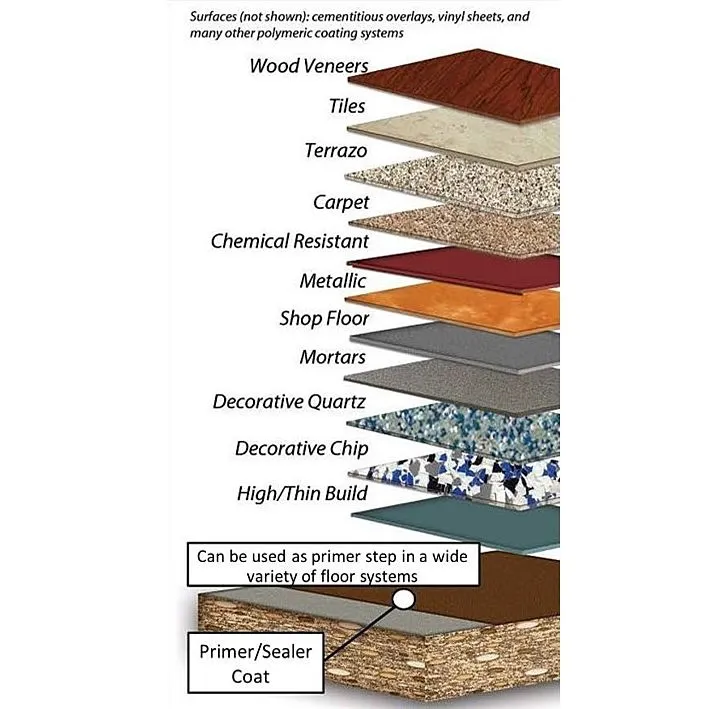

Diagram of layered flooring system and primer coat

E1409CL Moisture Vapor Barrier Epoxy Sealer Primer For Concrete ASTM F3010

Starting at $247.00

Helps reduce effects of moisture vapor transmission
Control moisture vapor emission rates up to 20 lb/24hr/1000 sq' (ASTM F1869)
100% solids with 0 voc
Low odor
Easy to apply, most projects require only one coat

Color

Clear

Overview

E1409CL Moisture Vapor Barrier Epoxy Sealer Primer

E1409CL Moisture Vapor Barrier Epoxy Sealer Primer is a two component 100% solids epoxy seal coat primer for use on horizontal concrete floors that can help control moisture vapor emission rates up to 20 lb/24hr/1000 sq’ (ASTM F1869), prior to application to protect Vinyl sheets, Tiles, Cementitious overlays, Terrazo, Wood veneers, Carpet or polymeric coating systems. E1409CL meets the ASTM F3010 product requirements for vapor permeance at the recommended thickness. The Moisture Vapor Barrier Epoxy can help alleviate some of the issues associated with moisture vapor in concrete.

Easy to apply, in most situations one coat applied at 94 sq’/gallon will do the job. Not meant to be a stand alone product. Use of the E1409CL requires proper prepation, typically using a concrete diamond grinder, to provide a 2-3 mil profile and rough up the surface so it feels like a 60 to 100 grit sandpaper as well as remove any old coating.

For addtional protection can use the CMW 8000 Liquid Moisture Vapor Barrier after concrete floor preparation and before application of the E1409CL. The CMW 8000 chemically bonds with the concrete deep below the surface to form a growing crystalline gel that fills many of the micro-voids and helps reduce hydraulic vapor pressure. The application of the CMW 8000 will in no way interfere with the E1409CL but rather enhances the overally system of protection by lowering the vapor pressure prior to applying the E1409CL and final application of a coating system or resiliant flooring.

Available in 1.5 gallon, 3 gallon and 15 gallon kits.

PRIMER: None required

TOPCOAT: Polymeric coating systems, vinyl sheets, tile, cementitious overlays, terrazo, wood veneers, and carpet

Where is Moisture Vapor Barrier Epoxy Used?

Concrete floors
For use as primer for any coating or resiliant flooring system

Why Moisture Vapor Barrier Epoxy Coating?

Helps reduce effects of moisture vapor transmission
Control moisture vapor emission rates up to 20 lb/24hr/1000 sq’ (ASTM F1869)
100% solids with 0 voc
Low odor
Easy to apply, most projects require only one coat
Meets requirement for ASTM F3010 for vapor permeance for two-component resin based membrane-forming moisture mitigation systems for use under resilient floor coverings (at recommended thickness)

Weight	N/A
Dimensions	N/A

SPECIFICATIONS
Solids	By Weight 100% By Volume 100%
VOC	0 g/L
Colors	Clear (not meant as standalone topcoat)
Recommended Film Thickness	17 mils wet/dry
Coverage per Gallon	94 sq'/gal @17 mils
Packaging	1.5 gallon kit, 3 gallon kit, 15 gallon kit
Mix Ratio	2:1 mix ratio
Shelf Life	1 year in unopened container
Hardness	Shore D = 75-80
Viscosity	Mixed = 500 - 1000 cps (typical)
ASTM F3010	Meets requirements for vapor permeance at recommended thickness

COVERAGE RATE

Coverage Per Gallon	94 Sq’/Gal @17 Mils

CURE SCHEDULE

Pot Life - 150 gram mass	28 - 38 minutes
Tack Life (dry to touch)	6 - 10 hours
Recoat or Topcoat	12 - 16 hours
Full cure (heavy traffic)	3 - 7 days

APPLICATION TEMPERATURE: 55-90 degrees F with relative humidity below 75%

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.

Square Footage Calculator

Estimate the Right Amount for Your Project

Use the calculator to determine your total project square footage. Once you have your measurements, compare the result to the product coverage rate listed on this page to estimate how much material you'll need for complete coverage.

Calculate Coverage
Quickly determine the total square footage of your project area.

Estimate Product Quantity
Use your results to calculate how much product your project requires.

Plan With Confidence
Add a waste percentage to account for surface texture and application conditions.

Coverage estimates are provided as a general guide. Actual product usage may vary based on surface condition, porosity, application method, and project requirements.
