ESD Floor Vinyl 75′ Long Runners for Conductive Anti-Static Protection

ACL ESD Floor Vinyl is made from an engineered PVC with inherent electrical properties that will last the lifetime of the material.

The homogeneous distribution of carbon black and proprietary polymers give the conductive thermoplastic vinyl a continuous and permanent path to ground. Electrical properties are impervious to wear damage caused by moving carts and foot traffic, so the conductive circuit remains unbroken while guarding against scratching and scuff marks.

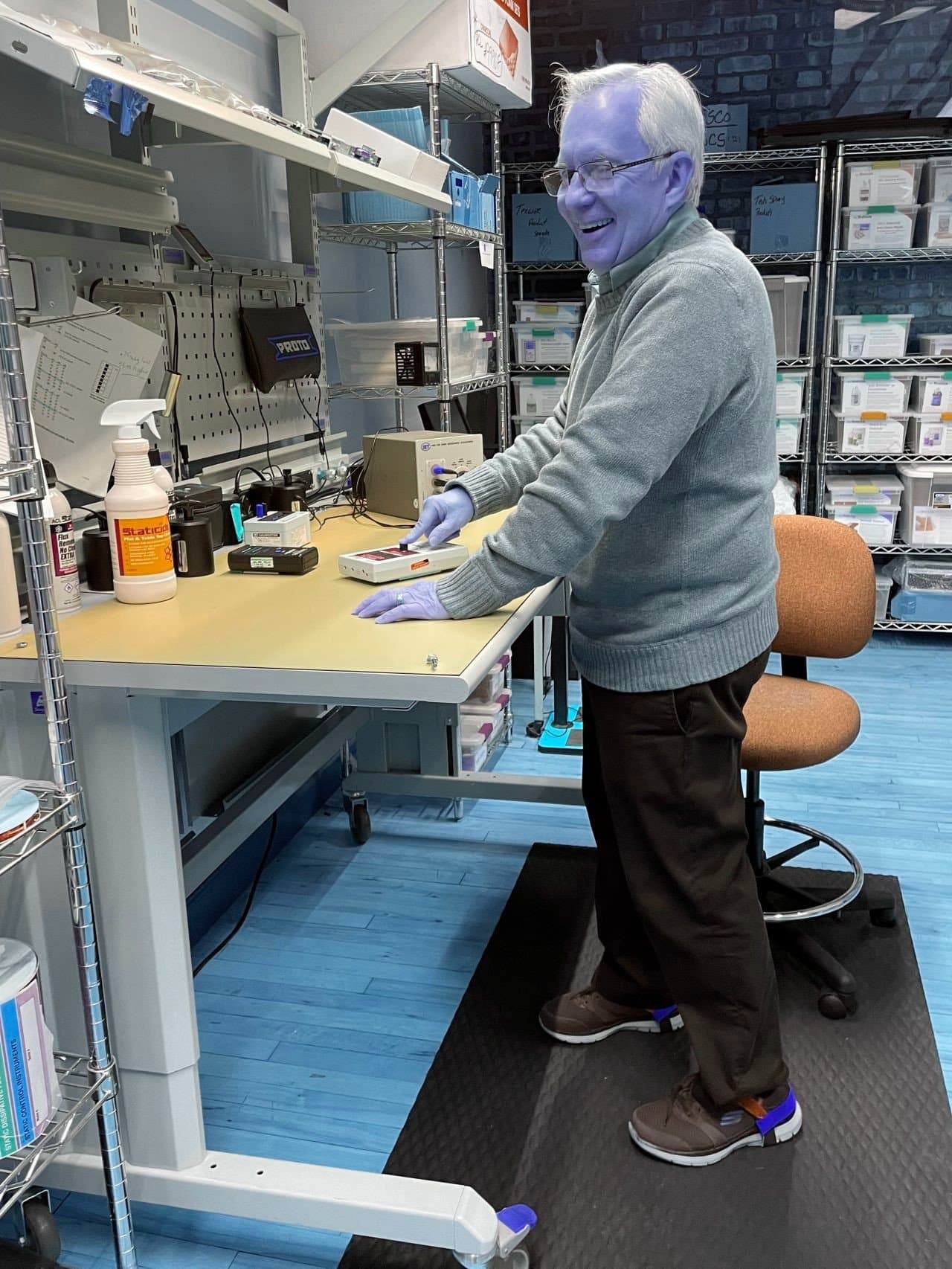

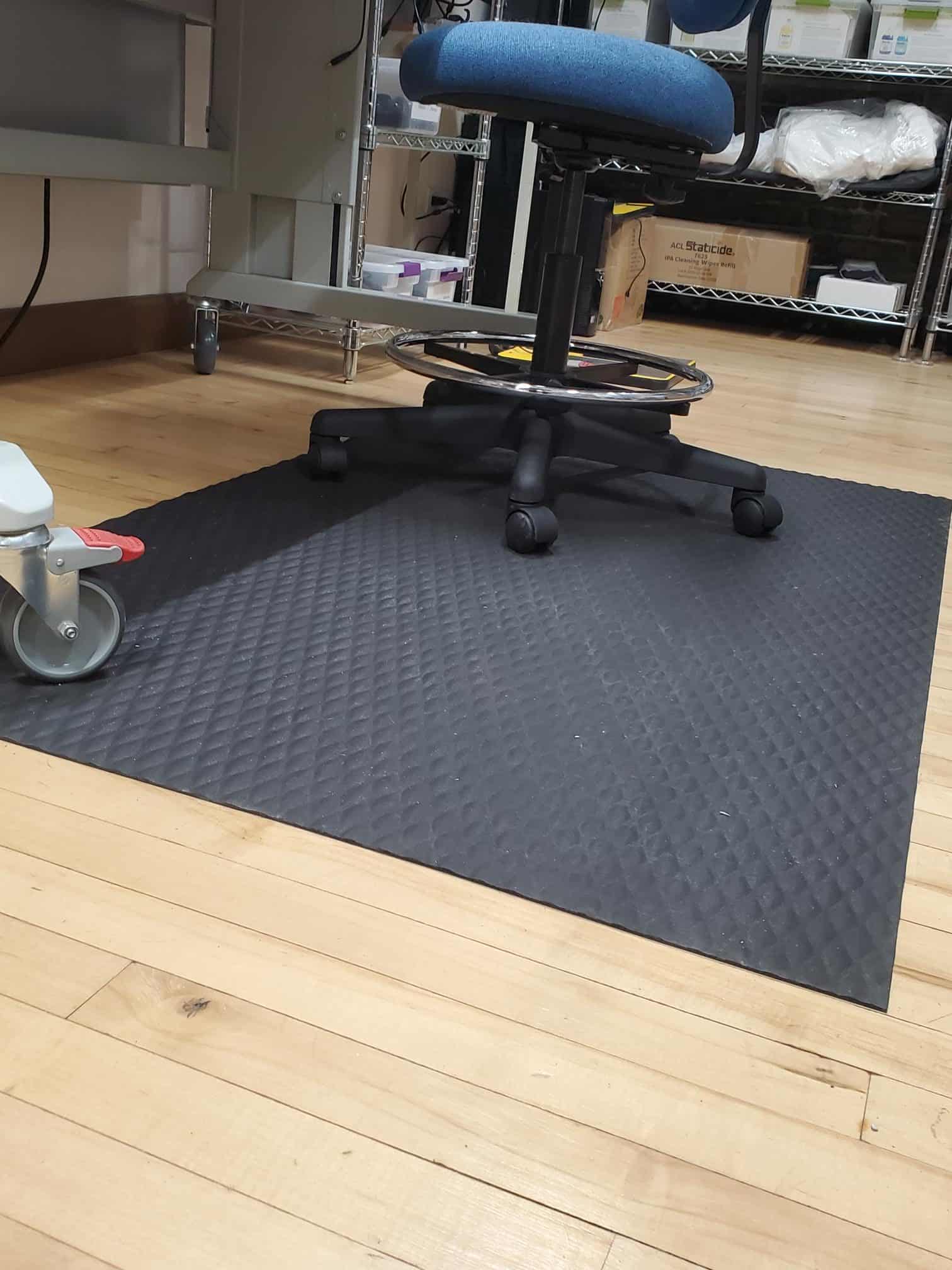

Runners can be paired next to long workbenches or as floor covering. May be easy punched for ground snaps if desired or cut to size with a utility knife.

Comes in 2 different sizes 3/32″ x 36″ x 75′ and 3/32″ x 48″ x 75′ (shipping LTL freight commercial locations only).  Available in black only.  Maintain ACL ESD Floor Runners with 4030 Ready-to-Use or 4020 Concentrate Neutral Cleaner.

Where is the ESD Floor Vinyl typically used?

  • Electronics manufacturing and assembly, telecommunications, ESD protected areas, medical, clean room manufacturing facilities

Why ACL ESD Conductive Floor Vinyl?

  • Resistance measures 103 – 106 ohms per ANSI/ESD S7.1-2005
  • Electricals are warranted for the lifetime of the mat
  • Compliant to ANSI/ESD S20.20 with Lifetime Manufacturer Warranty on electrical properties
  • Single layer, stippled surface
  • .090″ (2.29mm) thickness
  • Low VOC and low outgassing ideal for controlled environments
  • UV additives deliver color stability
  • Runners may be cut with a utility knife
  • Completely recyclable and made in the USA
  • The components used to manufacture this product are RoHS compliant and are not listed on the REACH SvHC list.

Technical Information

Color Black
Material Made of Thermoplastic vinyl
Weathering ozone resistance per ASTM D178-01 Passes
Surface Resistivity 107 – 109 ohms per square
Hardness per ASTM D2240 90 +/-5 shore A
Resistance ANSI/ESD S7.1-2005 103 – 106 ohms
Thickness .090″ (2.9mm)

4600 Data Sheet

4600 SDS

4600 Application Instructions

4600 Spanish Data Sheet

4600 Spanish Application
