Product Description

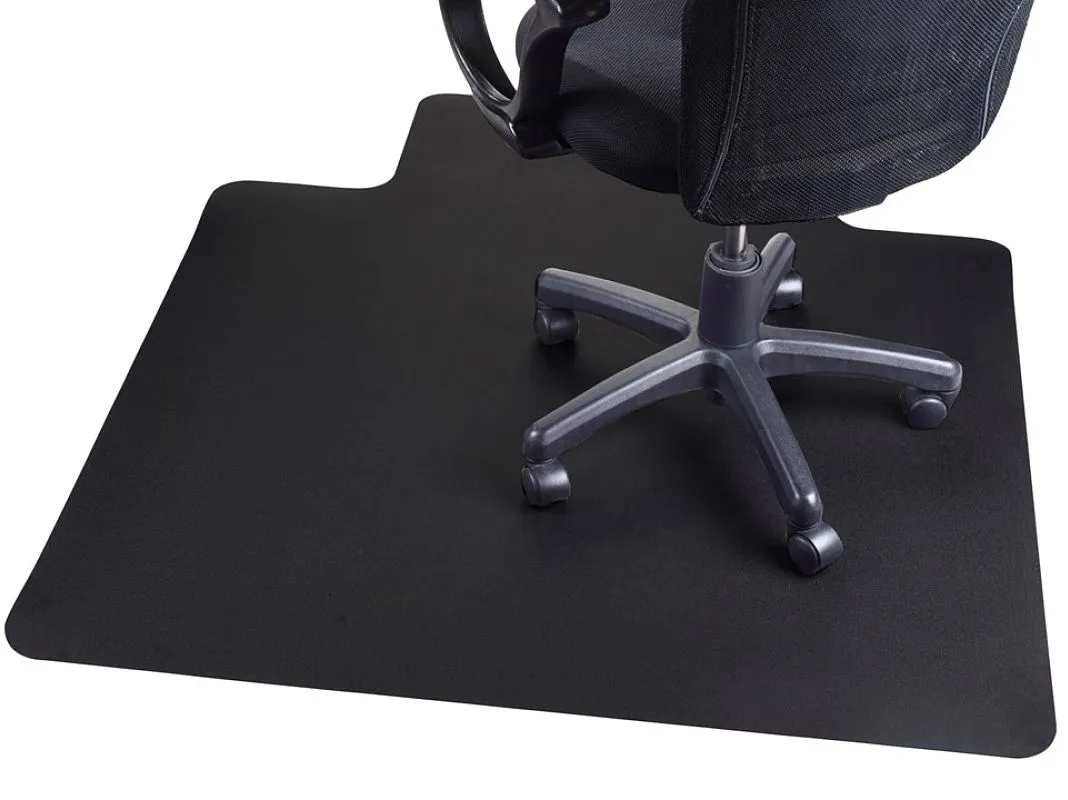

ESD Conductive Vinyl Chair Floor Mat Protects Anti-Static Floors | Meets ANSI 20.20

ACL Staticide’s ESD Conductive Vinyl Chair Mats are made in the USA from an engineered PVC with inherent electrical properties that will last the lifetime of the material, meeting ANSI/ESD S20.20 guidelines for sensitive device manufacturing.  Great protection for your floor against scratches and scuff marks.  With its smooth surface it allows castor chairs to easily roll across.

The homogeneous distribution of carbon black and proprietary polymers give the conductive vinyl flooring and chair mats a continuous and permanent path to ground. Electrical properties will not wear due to damage caused by chair casters, so the conductive circuit remains continuous while guarding against scratching and scuff marks.

Available in 3 sizing options:

  1. Chair mats are cut specifically for desks.  Comes in 1 size, measuring 46″ x 38 (base section) and 26″ x 12″ (tongue section).  These mats are laser cut and can be punched if one chooses to add a grounding snap.  Grounding snap added upon request (put request in NOTES SECTION on the CHECKOUT PAGE.
  2. Black Rectangle cut in 2 sizes:  48″ x 50″ and 48″ x 60″

To keep clean and avoid insulative electrical readings, use a neutral cleaner such as our 4020 Concentrate Neutral Cleaner concentrate or 4030 Neutral Cleaner ready-to-use formula.  The low alcohol, high surfactant formula will clean deeply without damaging the structural integrity of the conductive material.

Where are the ESD Flooring & Chair Mats used?

  • Electronics manufacturing and assembly
  • Sensitive device and contract manufacturing
  • Aerospace and automotive
  • EPA;s and ESD-safe workbenches
  • Transportation and packaging

Why an ACL Conductive ESD Flooring & Chair Mat?

  • Protects ESD Flooring & ESD Paint Investment
  • Solid Flat Surface Impervious to Damage from Chair Casters
  • Conductive Anti-Static Protection
  • Continuous and Permanent Path-to-Ground
  • Lifetime Warranty ANSI S20.20 & ANSI S7.1-2005
  • Comes in 3 sizes
  • Electrical properties are warranted for the lifetime of the mat
  • Resistance measures 10e4 – 10e6 ohms per ANSI/ESD S7.1-2005
  • Compliant to ANSI/ESD S20.20
  • Solid single layer is .090″ (2.29 mm) thick
  • Low outgassing and low VOC
  • Made in the USA

Technical Information

Color Black
Material Made of Low outgassing, low voc Engineered Polyvinyl Chloride (PVC)
Resistance point to point measures 1×104 x 1×106 ohms
Resistance point to ground 1×104 x 1×106 ohms
Meets ANSI/ESD S20.20 When tested according to STM 7.1
Resistance ANSI/ESD S7.1-2005 103 – 106 ohms
Thickness .090″ (2.29 mm)
