E814R Co-Polymer Liquid Rubber Anti-Slip Roof Walkway

E814CP is a one part elastomeric co-polymer rubber based liquid with rubber granules incorporated to provide a defined waterproof walkway with texture and slip resistance to roof surfaces.  The modified formulation has excellent resistance to ozone as well as low termperature flexibility with 500%+ elongation, high tensile strength, UV resistance and exceptional weathering characteristics.

Used in conjunction with our E814RCP Reflective White Co-Polymer Roof Coating and E814CP Co-Polymer Roof Coating (11 Colors). The E814CP works on a wide range of roof surfaces including EPDM, APP, TPO, Hypalon, wood and metal.  Not recommended for application over tar based roofing. E814R is available in 12 different colors.

Comes in 1 gallon, 2.5 gallon and 5 gallons.  The white colored E814R offers energy savings from its high 85% reflectivty rating (ASTM E97). Coverage rate depends on surface conditions and application procedures. Normally applied in one coat with 1 gallon per 17.5 square feet at 96 mils wet thickness (56 mils dry).

PRIMER: None required.

TOPCOAT: None required

Where is E814R Liquid Rubber Roof  Walkway?

  • Where a waterproof, extremely tough slip resistant roof walkway is needed.
  • Most roof surfaces including EPDM, APP, TPO, Hypalon, wood and metal.

Why E814R Roof Walkway?

  • Exceptionally tough, druable one part waterproof roof walkway
  • Offers excellent anti-slip walking surface
  • Excellent adhesion and works on most roof surfaces incl EPDM, APP, TPO, Hypalon, Concrete, Wood, and Metal.
  • Available in 12 colors
  • Excellent waterproof with E96 Vapor Transmission Class I 0.025 perms and Water Absorption 0.04%
  • Excellent weathering
  • Excellent UV stability
  • Good resistance to dirt pickup
  • Excellent low temp flexibility with 500%+ Elongation
  • Resists mildew and fungi growth
  • Good resistance to Alkalis and acids

SPECIFICATIONS

Solids (weight) 69%
Solids (volume) 62%
Colors 12 colors
Recommended Film Thickness 90 mils wet per coat x 1 coats  = 56 mils dry film thickness
Coverage Rate Depends on surface conditions and application conditions, normally 1 gallon per 17.5 sq’ x 1 coat
Packaging 1 gallon, 2.5 gallons, 5 gallons
Shelf Life 12 months in unopened container
VOC 390 g/L.  DOES NOT MEET REGIONAL EPA VOC REGULATIONS & NOT FOR SALE IN CA, IL, IN, OH, KY, VA, MD, DE, PA, NJ, NY, CT, RI, MA, NH, ME, UT Maricopa County, AZ
Flash point 105°F   ASTM D3278 seta flash closed cup apparatus
Heat stability 10 days at 120°F then re-evaluated:  Material stability maintained
Reflectivity  85% (white only) ASTM E97
Hardness 50-60  ASTM D2240 shore A @75°F 50% R.H. Barcol hardness tester model 3061
Accelerated Weathering Excellent with no apparent degradation      ASTM G53 (1000 hours QUV accelerated weather tester UV-B lamps no. QES-40/280-315 nanometers. (12 hr. QUV @ 60°C and 12 hr. con @ 50°C)
Tensile Strength 1000 psi  ASTM D412 @ 75°F and 50% R.H. Test is result of medium value(for 3)
Elongation 500% minimum    ASTM D412 @ 75°F and 50% R.H
Water Absorption 0.04%
Vapor Transmission 0.025 perms ASTM E96
Cure time 24-48 hours @70% R.H./70°F

COVERAGE RATE

Coverage Rate Depends On Surface Conditions And Application Conditions, Normally 1 Gallon Per 17.5 Sq’ X 1 Coat

MIXING AND APPLICATION INSTRUCTIONS

PRODUCT STORAGE: Store product in an area so as to bring the material to normal room temperature before using. Continuous storage should be between 60 and 80 degree F.  Keep from freezing.

SURFACE PREPARATION: Make certain that the substrate where the product is to be applied is clean, sound and free of all laitance, dirt, dust, oil, grease, water, dew or foreign contaminants. Power washing will be an effective preparation method for most substrates. Wire brush or abrasive blast all loose and scaling rust from metal surfaces. When topcoating EPDM or seamed roofs, make sure all seams are secure. Precautions should be exercised when coating surfaces with insulation boards such as EPS to determine that the coating will not affect the underlying insulation. When the type of insulation board is unknown, a suitable test patch can be applied to determine suitability. Surface must be dry before application.

ENVIRONMENTAL CONDITIONS:Do not apply material when temperature is below 40°F during the application time or drying period. Apply material when RH is below 90% for best results. Allow for adequate dry times between coats and before inclement weather or rain. Higher humidity or lower temperatures will slow the dry time.

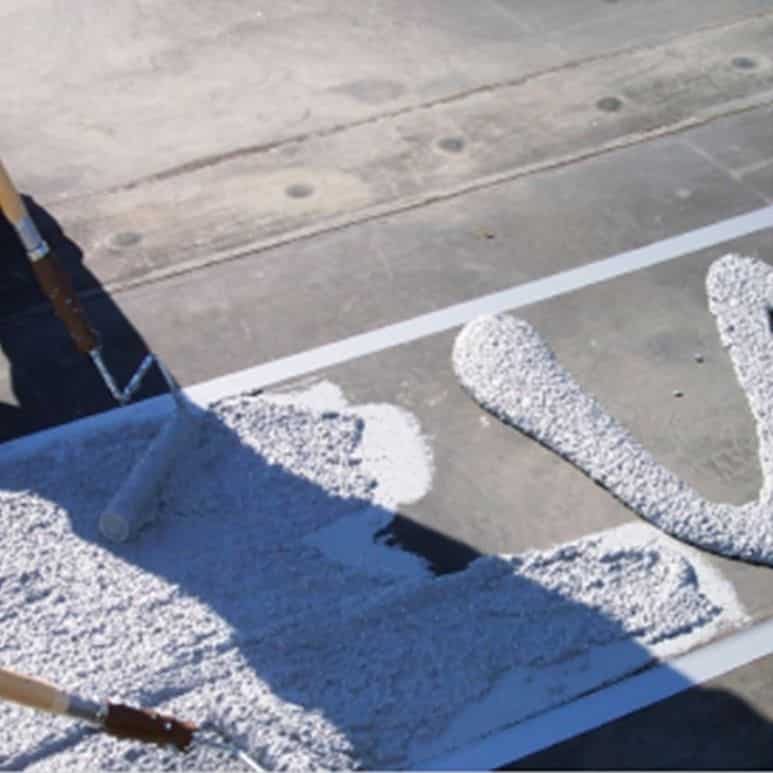

APPLICATION:First, mask off the area where the liquid rubber walkway is to be installed. Then pour/spread walkway liquid rubber onto masked off area. Next, firmly press down on the material with a PHENOLIC CORE roller and spread the material evenly on the surface. Pour only enough material at one time that allows for rolling the material before it becomes tack free. Firm application pressure applied on the phenolic core roller will provide the texture and assure that the material is not being applied too thick. Be sure to apply this product at the specified coverage rate or recommended mil thickness. Some adhesives on existing structures (used to bond the rubber sheets to the deck/structures) may degrade, or are of a poor quality and may not re-bond when the swelling has recovered. Should this occur, you may need to re-bond the sheet rubber with quality adhesives. As we have no control over the type of adhesives used on existing structures, we cannot be held responsible for such occurrences. Apply one gallon per 17.5 square feet per coat (one coat recommended). Always check the substrate for foreign contamination and water before coating. NOTE: If applying over porous substrates, such as concrete but not limited to only concrete, always apply a test patch to determine suitability concerning out-gassing, which could result in pin-holing in both the first coat and subsequent coats as well as potential blisters from the out-gassing.

For best mixing results and proper blending  recommend a Jiffy Mixer style drill mixer.

REOPEN SERVICE TIME:  Take notice of the full cure time and do not open the area to abusive use before the full characteristics of the coating is achieved. Apply when weather permits 24 hours of rain free curing.

MAINTENANCE: Provide for routine maintenance of your roof to assure years of trouble free performance

LIMITATIONS

  • Allow material to cure (24 hours) before exposure to rain or dew.
  • Do not apply a second coat until the first coat is dry.
  • Close all sources of air intake from roof into building to prevent solvent odor transfer into building.
  • Do not use indoors. Product cures from solvent evaporation-
  • Do not apply thicker than recommended. Too thick of an application can effect insulation boards such as EPS.
  • Read the SDS before using this product.
  • Product is not resistant to solvent exposure.
  • Too thick of an application may cause some roofing systems such as “not fully adhered EPDM” to rumple and exhibit some substrate waviness after the application.  This waviness will diminish with time, although it may not completely disappear. However, this will not diminish the performance of the substrate.
  • Physical properties are typical values and not specifications.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.

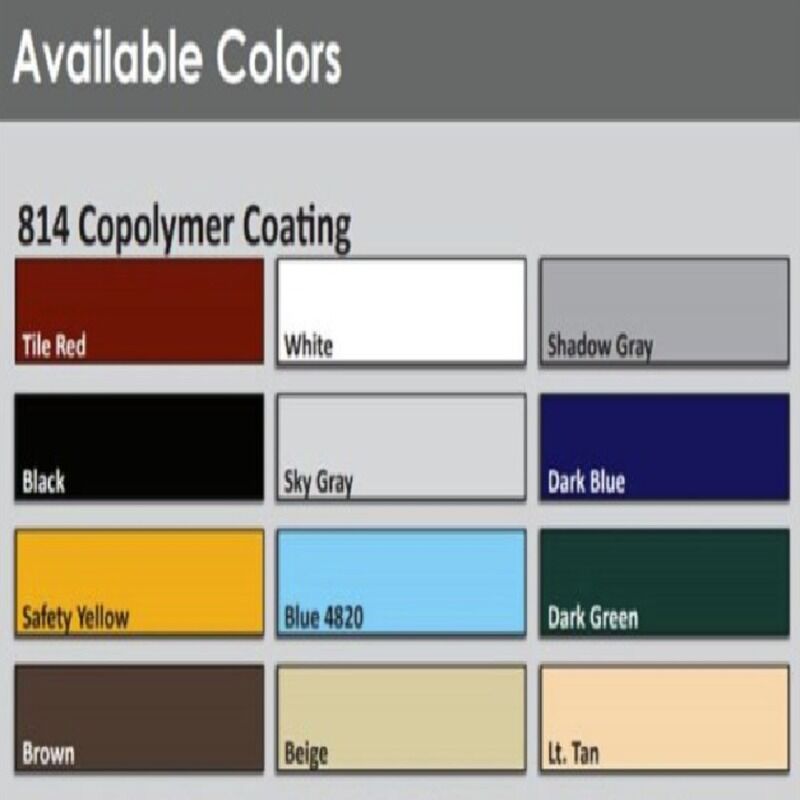

E814CP Co Polymer Roof Coating Color Chart
