Return to previous page
  • Overview
  • Specs
  • Which Film to Choose
  • How to Measure
  • How to Apply

NT PerLite Ceramic 70i Interior Window Film | Rejects 33% Infrared Energy | 68% Visible Light Transmission | Blocks 99% UV | Neutral Gray Color

Avery Dennison’s NT PerLite Ceramic 70i Interior Window Film is a highly durable, ceramic based film. It was developed using a proprietary, patented advanced ceramic technology. That technology results in a film that offers an attractive neutral gray color and provides excellent Solar Energy Rejection with low visible light reflectance. Allowing 68% of visible light to transmit through, while providing an Infrared Energy Rejection of 33%, this film allows for significantly cooler indoor temperatures without the need for additional interior lighting.

The NT PerLite 70i is an ideal solution solution for an affordable energy-saving project where preserving the view and a natural appearance (both inside and out) is a paramount concern.

The NT PerLite is an easy wet application to the interior side of the window.  Please see Application tab for detailed application instructions, our Video tab and Cleaning tab for additional insights.

Available in 25′, 50′, 75′ & 100′ long increments, it also has available widths of 36″, 48″, 60″ & 72″. Custom widths are available. To do so, simply order the next largest width listed (ex: you need a width of 32″, then order 36″) and specify the requested width in the “Order Notes” section at checkout.

WHERE IS INFRARED BLOCKING WINDOW FILM USED?

  • Office Buildings
  • Meeting Rooms
  • Restaurants
  • Schools
  • Store Fronts
  • Homes
  • Patio Doors
  • Airports
  • Hospitals

WHY INFRARED BLOCKING WINDOW FILM?

  • Maximum Reduction Daytime Temperatures With Minimal Darkening
  • Blocks 99% of UV Radiation
  • Lets 68% of Visible Light Through
  • Glare Reduction 25%
  • Rejects 31% of Total Solar Energy
  • Pleasant Neutral Gray Color
  • Easy Application to Interior Side of Window

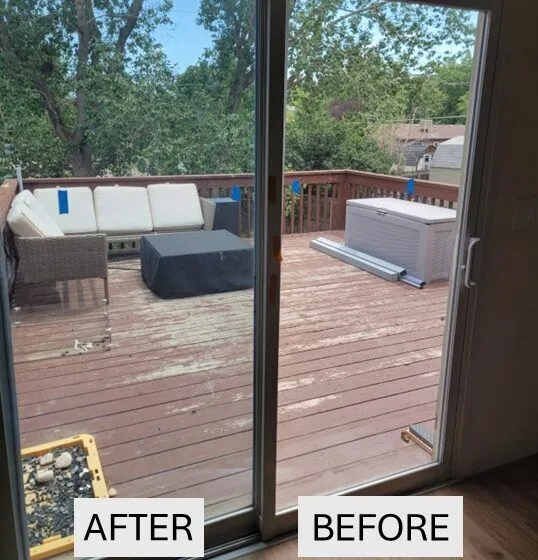

8360 IR Heat Reflective Film

Specifications

Technical Specs Single Pane Window Double Pane Window
Visible Light Transmitted 68% 61%
Visible Light Reflected (Interior) 9% 12%
Visible Light Reflected (Exterior) 10% 17%
Ultraviolet Block 99% 99%
Total Solar Energy Reflected 10% 15%
Total Solar Energy Transmitted 59% 50%
Total Solar Energy Absorbed 31% 35%
Emissivity (Room Side) .91 .91
Glare Reduction 25% 25%
Selective IR Reduction (SIRR) 44% 44%
IR Energy Reduction (IRER) 33% 33%
Shade Coefficient .79 .79
Solar Heat Gain Coeff. (G-Value) .69 .68
U-ValueWinter (IP) 1.08 .49
U-Value Winter (SI) 6.13 2.78
Luminous Efficacy .86 .78
Total Solar Energy Rejected (%) 31% 32%

IMPORTANT: If you are unsure what type of glass you have, it is safest to assume that you have ANNEALED glass

How to Measure

Determining the amount of window film needed to cover your windows is not as difficult as one would imagine. Just follow these straightforward steps to easily measure your windows and determine the quantity needed.

Measuring Your Glass

Note: Measure width in INCHES and length in FEET (divide number of inches by 12 to convert to feet.)

  1. Measure only glass area of window, not entire window frame.
  2. First measure your glass from left to right in INCHES. This is your required width. (This width corresponds with the “Roll Width” listed on each product page.)
  3. Then Measure your glass from top to bottom in FEET. This will be your required length. (This length corresponds with “Total Length (Feet)” on each product page.)
  4. Be sure to write these measurements down. We suggest adding 1 inch in each direction to your measurements. This allows room for error and cutting during your installation. The slight overlap will allow you to carefully cut the film to the edge of your glass, custom fitting your window.
  5. Repeat measuring for each window.
  6. Add together the lengths for all of your windows to come up with Total Length of film required in FEET.

Ordering Your Window Film

  1. Navigate to the page of the desired film. Select the width in INCHES that best fits your windows as determined by the previous steps.
  2. Your Total Length measurement (length of all windows combined in FEET) equals the quantity needed in feet of your chosen film. Ships as one continuous roll

Below we have listed the General Application Instructions. For additional information, including cleaning & maintenance of your film, please visit our Document Library
