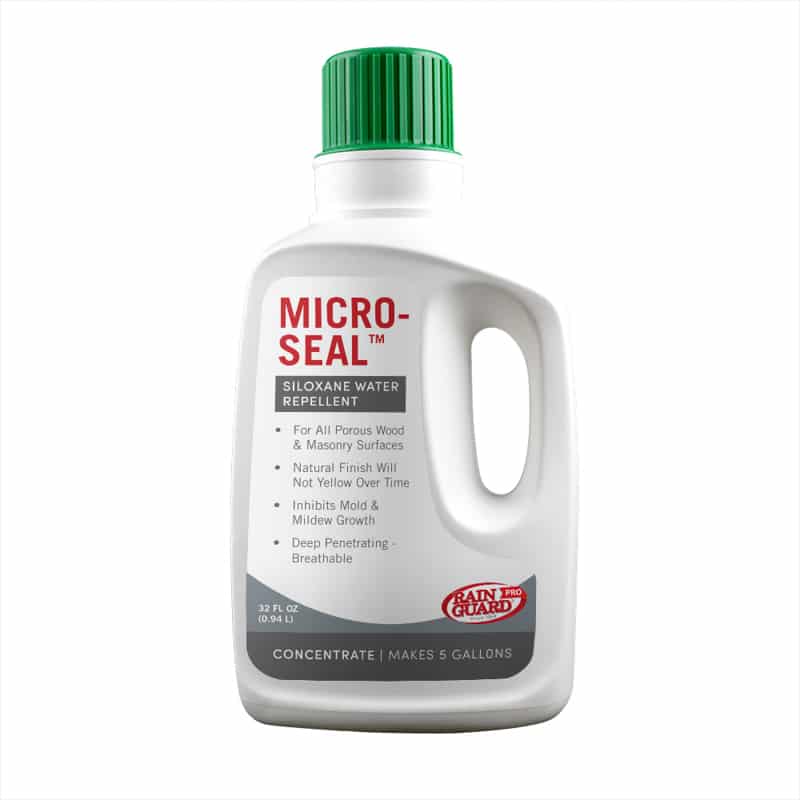

Micro-Seal siloxane water repellent bottle

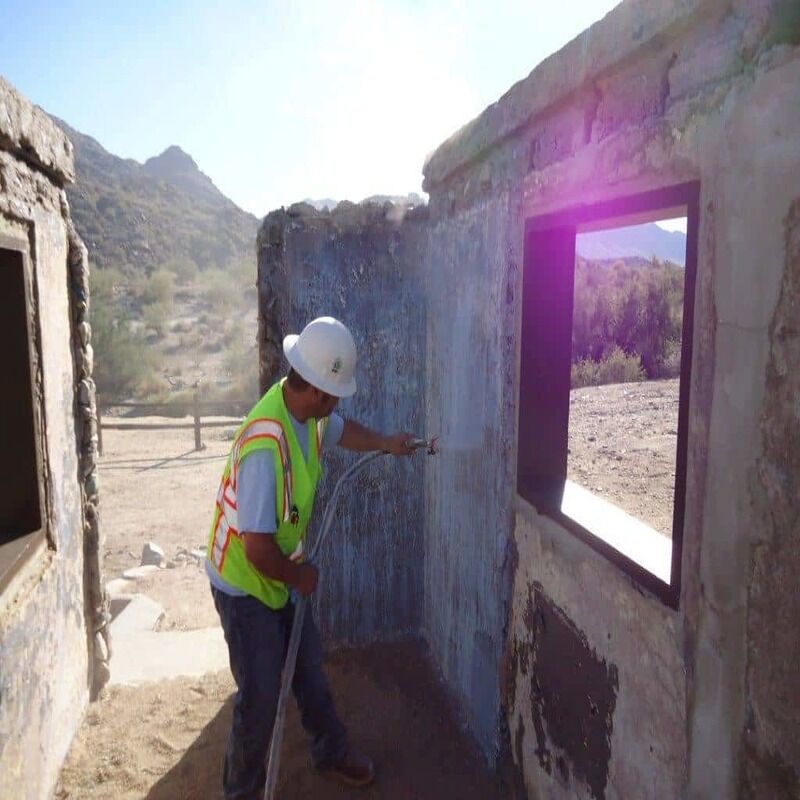

Construction worker spraying wall inside desert building
Leaking pipe on brick house exterior wall
Worker on lift repairing stone retaining wall

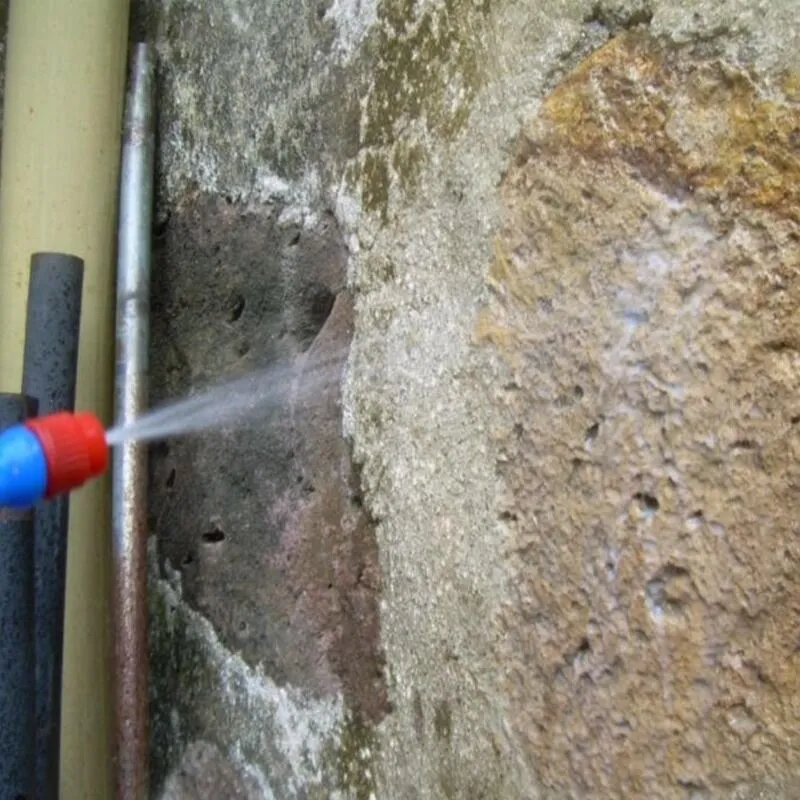

Spraying liquid into holes in exterior wall

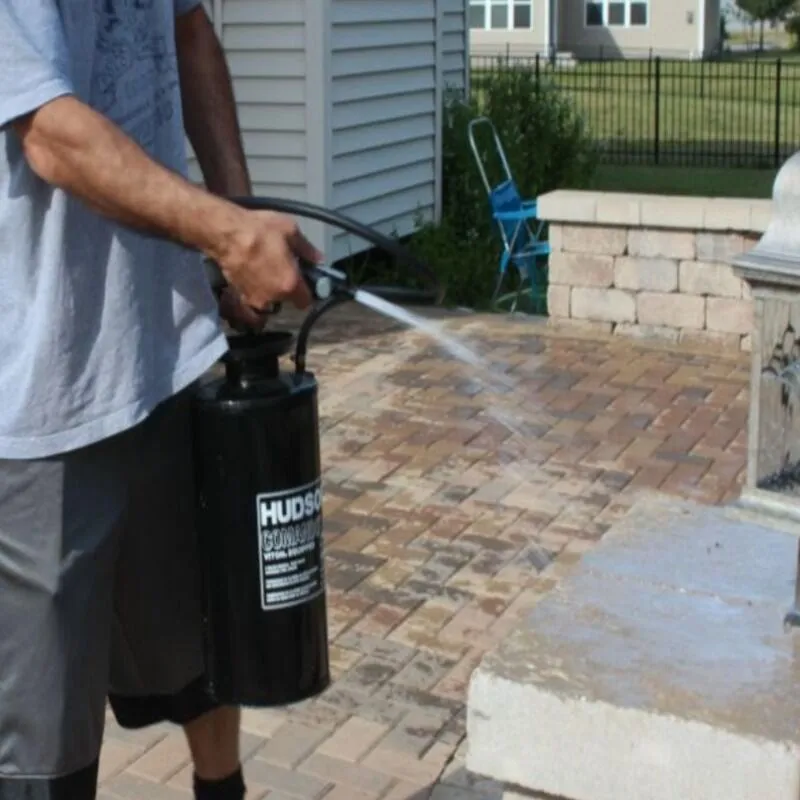

Person spraying patio with pump sprayer

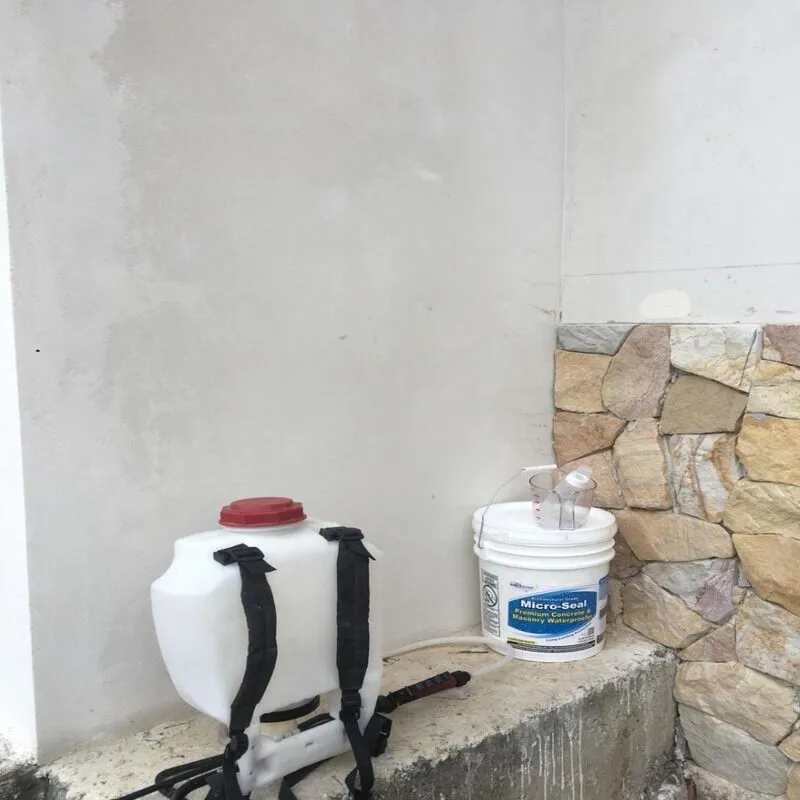

Backpack sprayer and sealant bucket on ledge

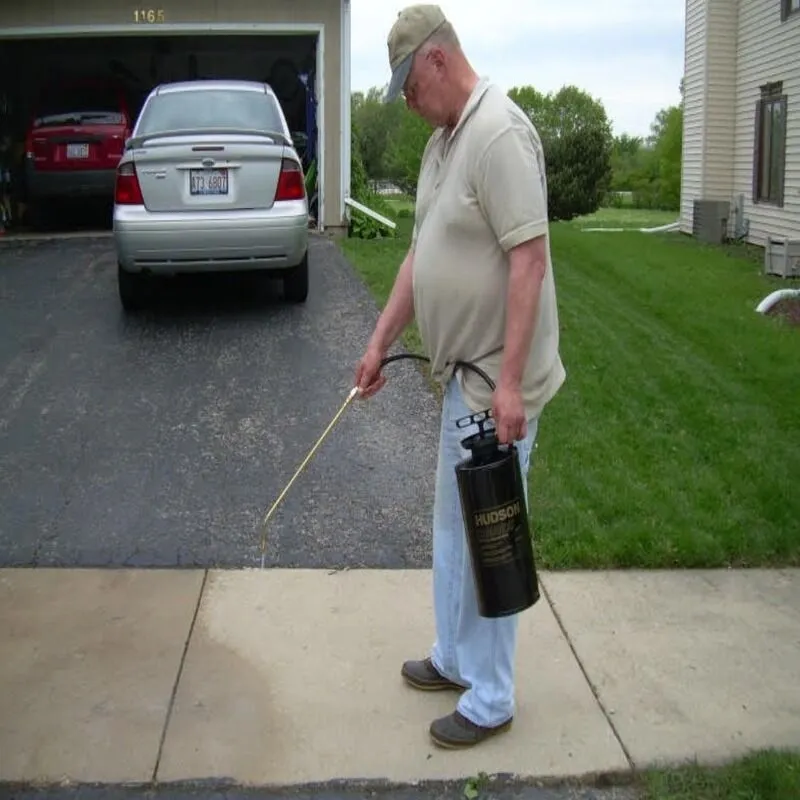

Man spraying liquid on sidewalk with canister sprayer

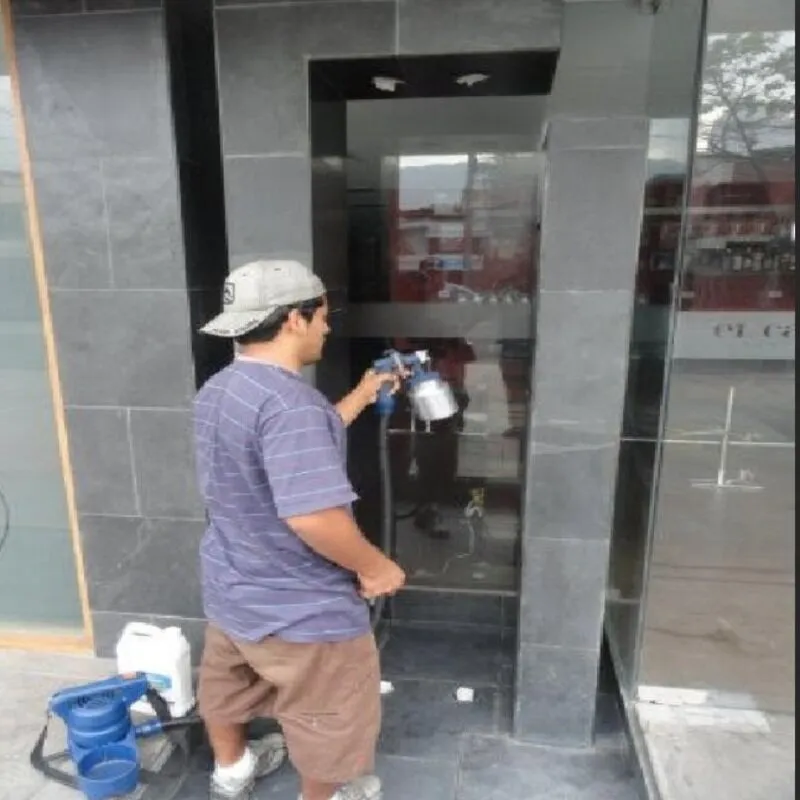

Man spray painting glass storefront entrance

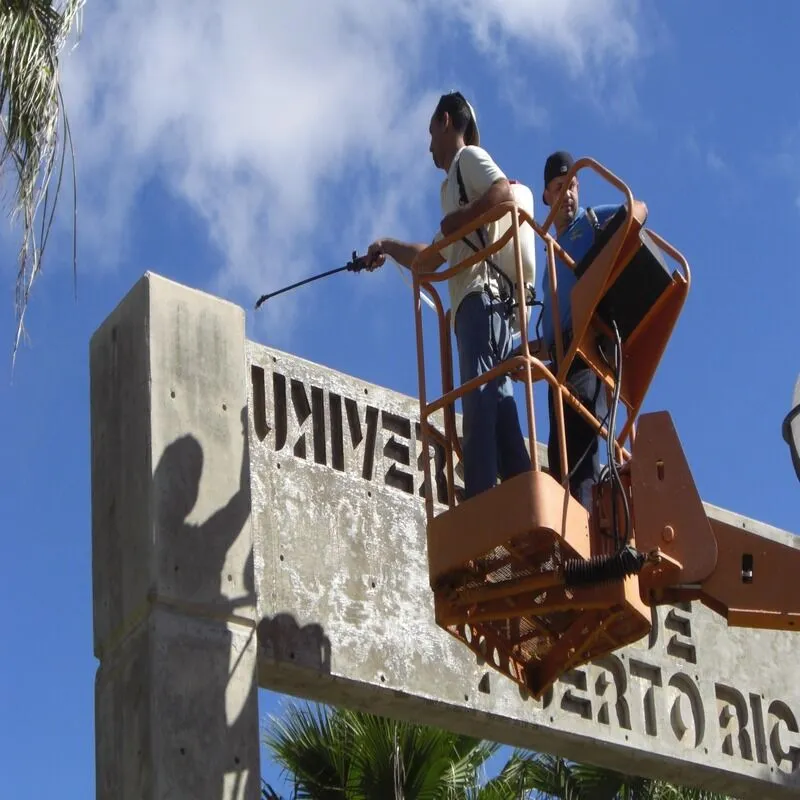

Workers cleaning concrete university sign with lift

Micro-seal Silane Siloxane Water Repellent | Concrete Brick Block Stucco | Clear Non Film Forming | ASTM Tested Against 98 mph Wind Driven Raing

Starting at $37.00

  • Labor and material water repellent warranty available for 10 years, up to 20 years using concentrate formula
  • Easy to use Concentrates available that saves money, time and easier on the environment!
  • ASTM tested for superior performance in stopping water and salt damage
  • 100% Eco-friendly: low VOC
  • Stain resistant to oil, gas and anti-freeze
Calculate Square Footage

Overview

  • Description
  • Additional Information
  • Specs
  • Coverage Rate
  • Application
  • Gallery
  • Calculator
  • More Options

Micro-seal Silane Siloxane Water Repellent Formulated for Professionals

Rainguard Micro-Seal™ Silane Siloxane Penetrating Water Repellent Sealer sets an industry standard for superior moisture protection. Used on new construction, infrastructure and remodel projects throughout the US and Worldwide, it’s tested to stop a 98 mph wind driven rain coming through a treated concrete, brick, block or stucco wall surface without changing the look or texture of the surface. Made from the best water repellent chemicals in the construction market, Micro-Seal is a blend of silanes and siloxanes trusted by architects, engineers and building owners looking for long lasting protection of unpainted, porous surfaces.

What makes Micro-Seal different? A proprietary ingredient called Micro-Lok™. This additive ensures a long lasting mechanical bond and creates a hydrophobic barrier not affected by weathering, salt, dirt, freezing temperatures, UV light and wind-driven rain.  Micro-seal is a penetrating sealer invisible after application as it penetrates completely below the surface.

It protects against damage from water, salt and freeze – thaw cycling that can cause cracks in a surface.  It also adds stain resistance to the treated surface for easier cleaning which is great for horizontal applications. Available in ready-to-use and concentrate and super concentrate formulations.

For an alternative option, consider using the 100% solids Micro-Seal HD.

Where is Micro-seal typically used?

  • Construction & Remodel Projects:   Exterior building|screen|retaining walls, warehouse|factory|parking garage floors, bridge abutments, stadiums, concrete curing compound
  • Homeowner projects:  Exterior brick|stucco walls, chimeys, driveways, garage floors, decks, patios, porches, walkways, fences
  • Non-traditional applications:  Clay tile roofs, Clay|concrete flower pots, indoor floor and bathroom tile mortar grout sealing, additive to paint to enhance adhesion|water repellency|life, outdoor unpainted wood furniture

Why Micro-seal Water Repellent Sealer?

  • Labor and material water repellent warranty available for 10 years, up to 20 years using concentrate formula
  • Easy to use Concentrates available that saves money, time and easier on the environment!
  • ASTM tested for superior performance in stopping water and salt damage
  • 100% Eco-friendly: low VOC
  • Stain resistant to oil, gas and anti-freeze
  • Excellent mold and mildew inhibitor
  • Does not alter surface appearance & UV resistant – will not yellow>
  • Overspray of Microseal during application will not harm glass or other building surfaces
  • Can be used on surfaces with admixtures such as Dry-Block
  • Nationally specified by architects in CSI sections 04220, 07185, 07190 and 09900
  • Comparison Chart of Concrete Sealers by ConcreteNetwork.com
Weight N/A
Dimensions 12 × 6 × 10 in
Color

CSI Spec

, , ,

Product Material

Finish

Surface Applied To

, , , , , , ,

Warranty

Standard 10 Year up to 20 Year Labor & Material Warranty
Manufacturer

TECHNICAL INFORMATION
Color Clear, No change in appearance or surface texture
Sheen/Gloss Level None
Dry To Re-Coat 30-60 Minutes
#Coats Recommended 1 (2 coats if especially porous)
Back in-service time 1-2 hours walk or drive on
Application method Low pressure hand pump or airless sprayer
Where Can it be Used All Interior|Exterior and Vertical|Horizontal unpainted, porous surfaces
Apply to New Concrete 48 hours
Low Application Temperature 35F|1.7C Surface & Air
 Base  Water
VOC Content <15 g/L
Use on Material Concrete, brick, masonry, stucco, block. natural stone, EIFS, wood
Warranty Available 10 years material/labor standard, 20 years using double concentrate rate –  download warranty application to register, see DOCUMENTS tab above
Full Chemical Cure 5 -7 days for full product performance
CERTIFICATION/TEST
Leed 4.2 (1) point credit available Meets LEED and SQAMD low VOC requirements
ASTM D-1653 Water Vapor Transmission Rate 100% Vapor Permeable
ASTM E-514 Wind Driven Rain passed 98 mph/160 kph  (98.7% leak reduction)
ASTM C67-87 Water Repellency 98.6% Effective
ASTM E84 Surface Burning Flame spread 0, smoke developed 0
NCHRP No 244 Series IV Salt Pounding 95% reduction
ASTM G-53 Weathering 3500 hours – no change
ASTM C309 Type 1, Class A&B for curing compounds
MPI #34 & #117 Master Painters Institute
COVERAGE RATE SQUARE FEET/GALLON
CMU Precision Block 60-70
CMU Split Face 50-70
CMU Scored/Flute 65-80
CMU Lightweight 40-55
Clay Brick 125-150
Concrete (Dense Masonry) 125-150
Adobe Brick/Natural Stone 70-90
Stucco 100-150
Wood 150-200
Concrete Curing 250
*Extremely porous surfaces  May require 2nd application
*Textured surfaces  Decreases coverage rates

MIXING AND APPLICATION INSTRUCTIONS

CONDITIONS PRIOR TO APPLICATION
Temperature (surface|air) 35F to 90F (1.7C to 35C) and at least 5F above dew point
Moisture of substrate Less than 15%
Humidity Less than 90%
Rain No rain 48 hrs prior to, 12 hrs after application
Cure time for newly poured concrete Apply 48 hrs after pour
Application method Use low pressure hand pump or garden sprayer

WORKING WITH CONCENTRATES

PART # SIZE MAKES INSTRUCTIONS
CR-0359 6 oz 1 Gal Empty 6oz into 1 gal container, fill with water, shake (19 parts water to 1 part Micro-seal)
CR-0360 32 oz 5 Gal Empty 32oz into 5 gal pail, fill with water, stir (19 parts water to 1 part Micro-seal)
CR-0701 1 Gal 10 Gal Measure concentrate needed, mix with water, stir (use 9 parts water to 1 part Micro-seal)
CR-0705 5 Gal 50 Gal Measure concentrate needed, mix with water, stir (use 9 parts water to 1 part Micro-seal)
CR-0362PK 32 oz 30 Gal Case of 6 quarts CR-0360 see that sku for instructions
CR-0361PK 1 Gal 40 Gal Case of 4 gallons CR-0701 see that sku for instructions

FOLLOW THESE SIMPLE APPLICATION STEPS

1. MICRO-SEAL should be applied using low-pressure airless or hand pump spray equipment

2. Do not atomize material (don’t want product to spray as a mist) as it will negatively impact product performance. For power sprayers, use large tip size of at least .035 to .051. For hand pump sprayers, turn spray nozzle at end of the spray wand so product flows out more like a steady stream and keep pressure up to amke sre enough material is coming out. Spray head should be held 8 to 12 inches from the surface so material floods down the wall at least 6-12 inches below the point of application.  For horizontal applications, apply until surface is completely saturated and pooling occurs.  Do not need to backroll or sweep off excess if absorption takes place within 1-2 minutes. For quickest application rate and to ensure a completely saturated surface suggest on powered spray equipment, remove the spray tip and on hand pump sprayers, remove the wand/tip. Product will flow very quickly, in a steady stream and completely eliminate atomizing.

3. Avoid application in windy weather.

4. Trigger gun off at the end of each pass to avoid using excessive materials. Stop all applications only at corners, joints, seams, or edges.

5. Multiple coats may be applied, whiting or yellowing will not occur.  A second coat is best applied “wet on wet” which means apply when first coat is damp but not yet dry.  Use same flood coat procedure.

PRECAUTIONS & LIMITATIONS

1. All surfaces to be coated should be clean of any dirt and grime, efflorescence, lime run, form oils and release agents, grease, mud, excess mortar, and mold and mildew, etc.

2. All cracks should be pointed or caulked. All voids, bee holes, masonry surface defects and openings such as conduits, pipes, drains, door frames, vents, air conditioner openings, electrical openings, control joints, or any dissimilar materials should be repaired using urethane or other approved patching.

STORAGE

Store materials in a well-protected area between 45° and 90°F. Avoid freezing temperatures, direct sunlight, and moisture. Keep away from heat sources.

Check out our customer projects using Micro-Seal Water Repellent to protect their project!

Decatur Housing Authority Wall Repair Using Micro-Seal

Micro-seal application 2

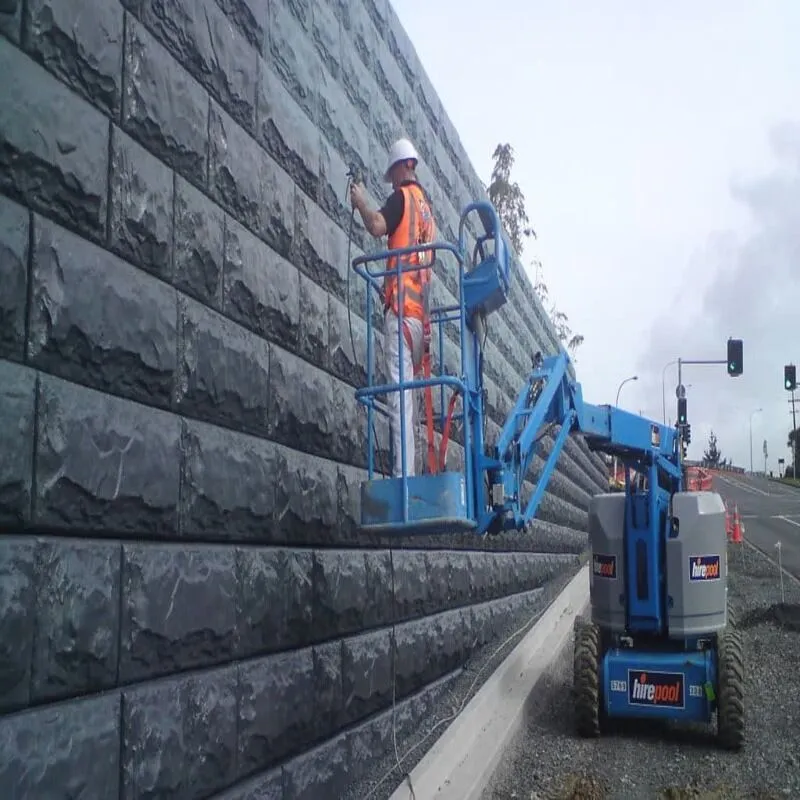

Highway Retaining Wall – New Zealand Protected by VandlGuard & Micro-Seal

Square Footage Calculator

Estimate the Right Amount for Your Project

Use the calculator to determine your total project square footage. Once you have your measurements, compare the result to the product coverage rate listed on this page to estimate how much material you'll need for complete coverage.

Calculate Coverage
Quickly determine the total square footage of your project area.

Estimate Product Quantity
Use your results to calculate how much product your project requires.

Plan With Confidence
Add a waste percentage to account for surface texture and application conditions.

Coverage estimates are provided as a general guide. Actual product usage may vary based on surface condition, porosity, application method, and project requirements.
