Product Description

1007 Polyurea Coating is Fast Setting – Waterproof – Spray Applied

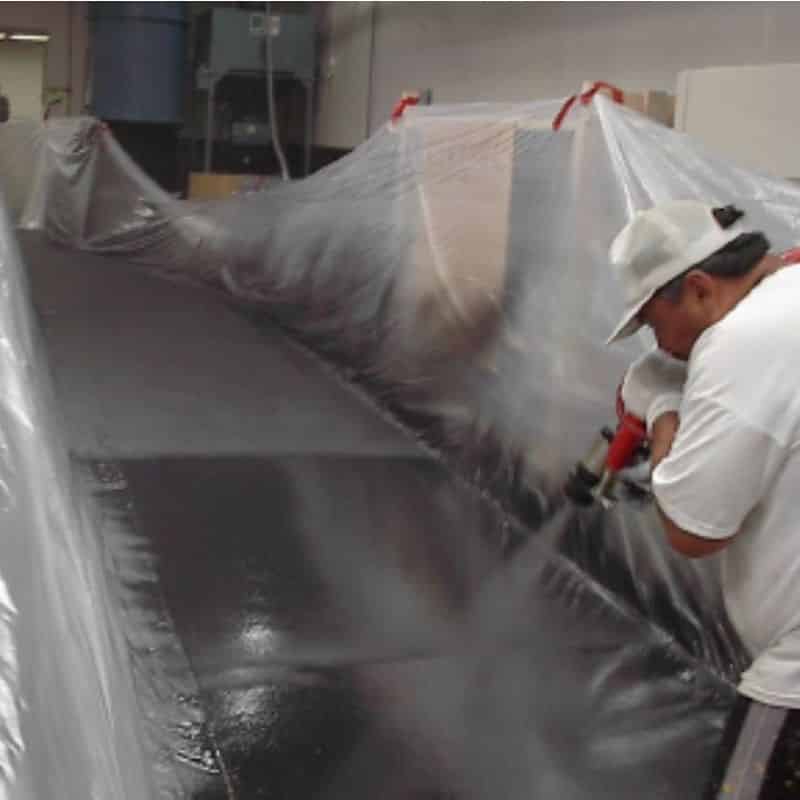

1007 Polyurea Coating is a very fast 10 – 30 second set time, 2-component 100% solids, pure polyurea coating with outstanding ASTM tested chemical, abrasion & impact resistance, flexible, waterproof protection, highly resistant to corrosive environments for use in chemical plants, industrial facilities and marine application.  Protection for concrete, wood, metal and other surfaces.

For best results, the 1007 should be applied to concrete surfaces as part of an ASTC “coating system” to reduce concrete out-gassing as required, using the ASTC CMW 8000 moisture vapor barrier and ASTC 7001 polyurethane primer prior to application of the 1007. The 1007 polyurea coating is applied via high pressure heated equipment such as the HV-20/35 or larger.

Available in 110 gallon kits in black, medium gray and kahki tan standard colors

Where is 1007 used?

  • Parking garages
  • Secondary containment with non-skid
  • Corrosive barrier, protective coating for processing equipment
  • Concrete tanks & steel tanks
  • Secondary containment walls and floors
  • All industrial service surfaces
  • Geotextile Containment Applications
  • Marine environments

Why 1007 Fast Set Polyurea Coating?

  • Excellent elongation – 600%+
  • Protects wide variety surfaces – concrete, metal, wood etc
  • Chemical Resistant
  • High Impact & Abrasion Resistance
  • Application temperature range 20°F to 200°F
  • Conforms to USDA requirements for incidental food contact,
  • Can be tinted to variety of colors.
  • Unlimited mils (microns) per coat
  • 100% Solids, no VOC, No Odor
  • Designed to chemically bond to the ASTC 1007 polyurethane primer

TECHNICAL INFORMATION

Solids 100%
Color Black, Dark Gray, Tan
Hardness ASTM D2240 A 95
Set time 10-30 seconds
Gel time 8-20 seconds
Tack free ASTM D2471 30 seconds
Solids 100%
Mix ratio 1:1
Application method Graco Reactor Hydraulic Proportioner or Arma Proportioner or equal
Use B side agitator and feed pumps for A and B drums
Surfaces Applied to Concrete, metal, wood and other surfaces
Solids 100%
Density ASTM D1622 70
Application Temperature -20°F  to 200°F
Abrasion D1630  530 NBS
Tensile ASTM D412 3600
Tear Strength ASTM D470 420 lbs/in
Elongation ASTM D124 635%
Processing Temperature 160°F
Viscosity @75°F cps A 800-1200    B 600-900
VOC 0%
Permeability E96 .0947
Maximum mils per coat unlimited
Concrete cure time Minimum 28 days after new pour
Chemical Cure Begin to re-use in maximum 1 to 1.5 hours and full cure in 24 – 48 hours @70°F
Shelf Life 12 months, store between 40°F and 100°F



APPLICATION INSTRUCTIONS

Moisture Vapor Reduction
1007 should be applied to concrete surfaces as part of a “systems approach”. Use with CMW vapor barrier treatment for the concrete and the 7001 as the primer, pinholes are reduced.

Prime
Prime when needed using the 7001 primer.  The 1007 cross links with the 7001 primer and products excellent results when used together as a system.  . Prime 2 to 4 hours prior to the 1007 application for best results.  Spray the polyuria on the primer only after the primer has become tack free.

Note:  The best spray application results are obtained coating concrete when the ambient temperature is decreasing.  In applications where it is not possible to use the temperature to your advantage it is suggested that the CMW 8000 be used in conjunction with 7001 primer and the 1007 polyurea spray.

Preparation
Concrete must have a minimum 28 day cure prior to application. Remove any curing agent, form release materials, oils, wax, moisture or any material that may effect bonding. Clean and wash to remove contaminants and maintain pH 8.0-11.0. *

Perform a Moisture Vapor Test before making the coating application on concrete. Provide rough profile minimum 2 mils. Review ASTM D4259 Abrading Concrete and ASTM F1869 Measuring Moisture Vapor Emission. Seal/repair all bug-holes, cracks and spalls, see ASTC data sheets on 830, 4034 and 3004 (joints). Steel; Near white sand blast per SSPC-SP10/NACE 2. Welds, seams, edges, etc. grind/blast smooth and provide 2 mil profile. Immersion – review SSPC-SP1.

Application
Use only heated, high pressure spray equipment & impingement gun. Maintain a fluid pressure minimum of 2,000 psi and minimum heat 160oF. Substrate Surface temperature should be -20F to 120F. Apply at no less than 5F above dew point.   Apply at specified mil thickness over primer as required for the application.

Spraying 1007 requires special equipment, user must be a professional applicator qualified in the use of high performance polyuria materials and specialty application equipment.

Finish
The finish of this product is best using a stipple surface with the 1007 over freshly applied 1007.

Color
Black, Medium Gray, Kaki Tan. Note: Aromatic systems will shift color from exposure to UV. Dark colors resists color change more then light colors.

Limitations
Do not use on wet surfaces or expose part A to moisture. Keep out of direct sunlight, store drum kits on wood pallets at room temperature. Always mix/agitate the part B before and while using using. Pre-heat drums as needed per environmental temperature. Best results over vapor barrier and/or compatible primer. Protect from cold during storage and shipping.



NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.
