Return To Shop Rustic Barndeminium Shines with Metallic Marbled Epoxy Floor
DESCRIPTION
“Quality products with the best customer service! Took on a huge project and couldn’t have gone it without the customer support provided. Highly recommend the products and the experience you get with this company.” – Bryce S.

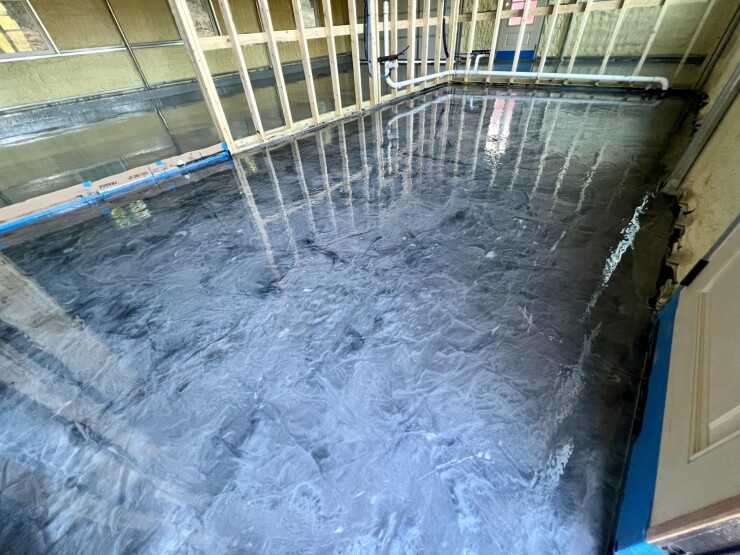

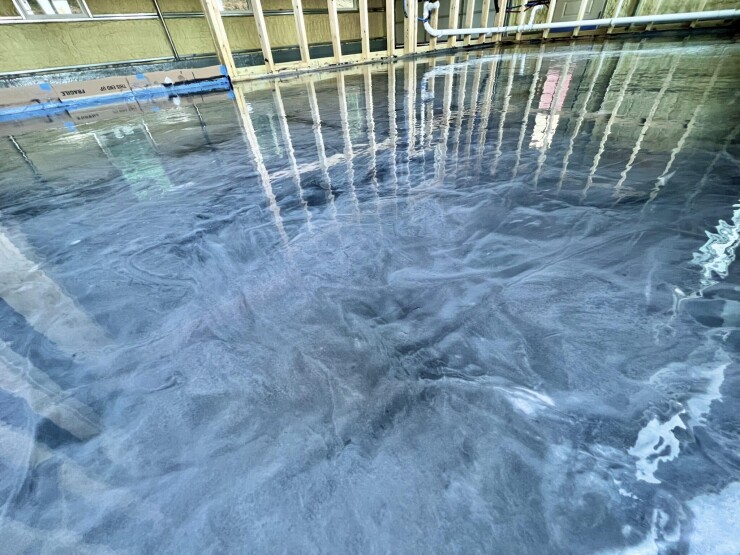

Our customer, Bryce, wanted his new, off the grid Barndeminium to feature unique flooring throughout. He accomplished just that with a Metallic system.
Several steps had to be taken prior to installing the final coating system, prepping the floor for application with a Concrete Diamond Grinder to achieve an 80-100 grit sandpaper feel on the surface.
He then used a 5-step application process:

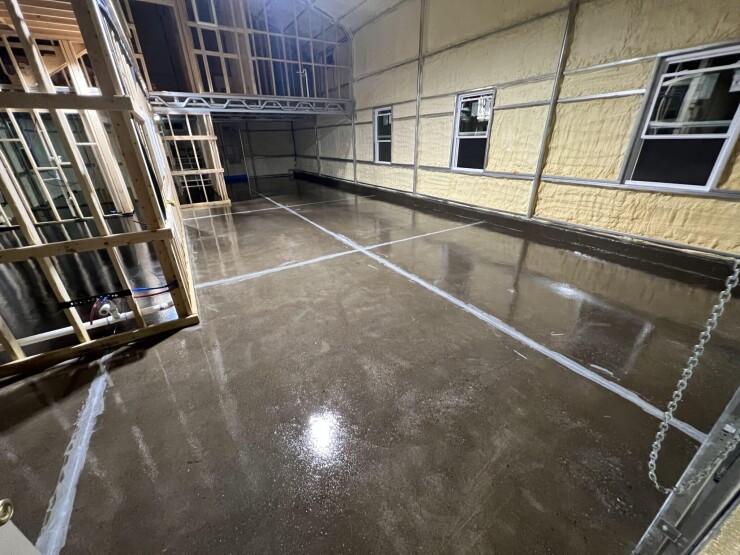

First, he applied two separate Moisture Vapor Barriers: he spray applied the CMW 8000 Liquid Moisture Vapor Barrier and then applied by squeegee and dry backroll the MV 2112 Moisture Vapor Epoxy. Concrete Moisture Vapor Barriers are excellent options in reducing the risk of the moisture causing peeling in areas where there is a concern of high moisture levels as well as concrete outgassing, where tiny air bubbles come up through the concrete (which can ruin the look of a coating system).

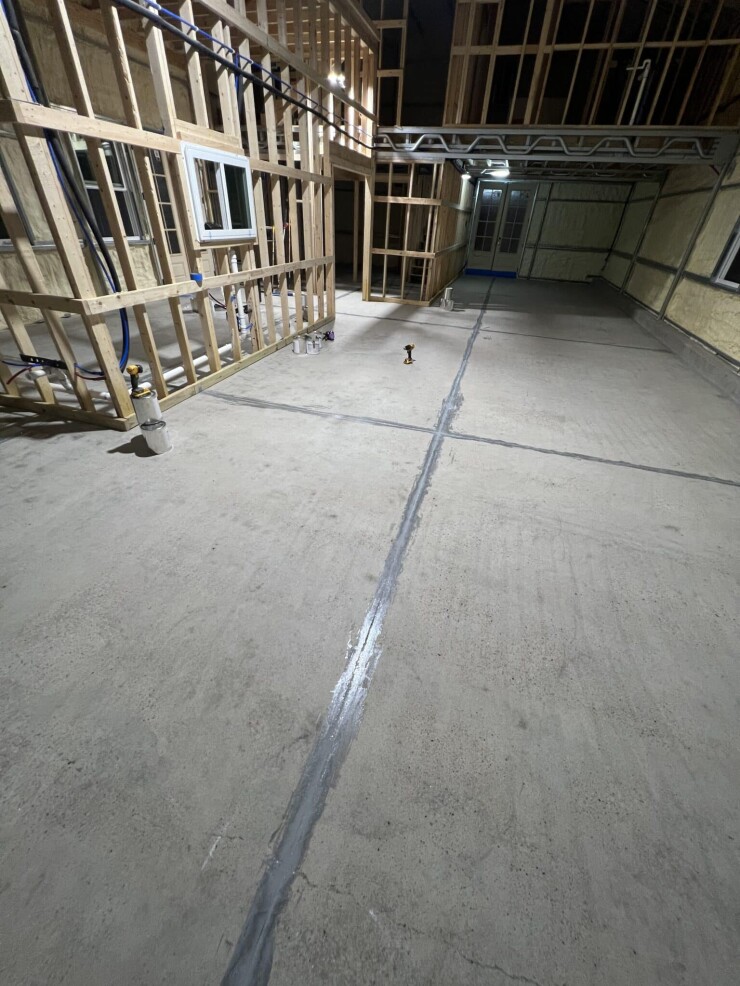

Next, he sealed his expansion joints with our 100% Solids E5829 Joint Sealant. Taking this step allowed for a completely seamless floor throughout the project area.

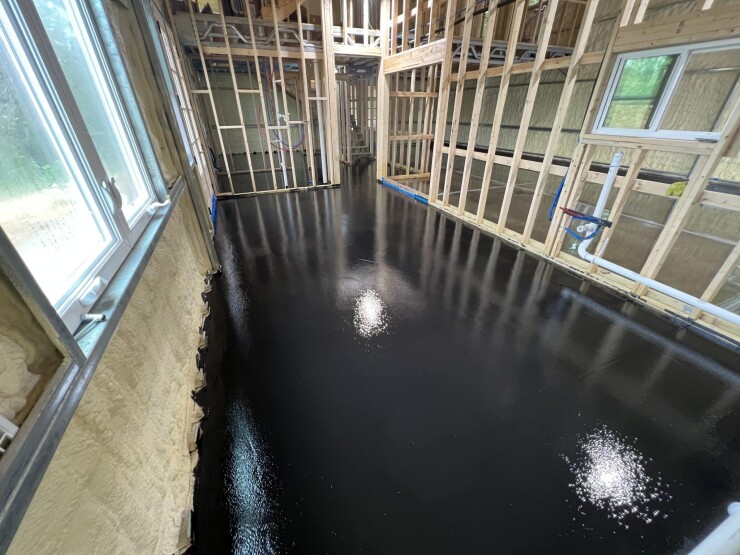

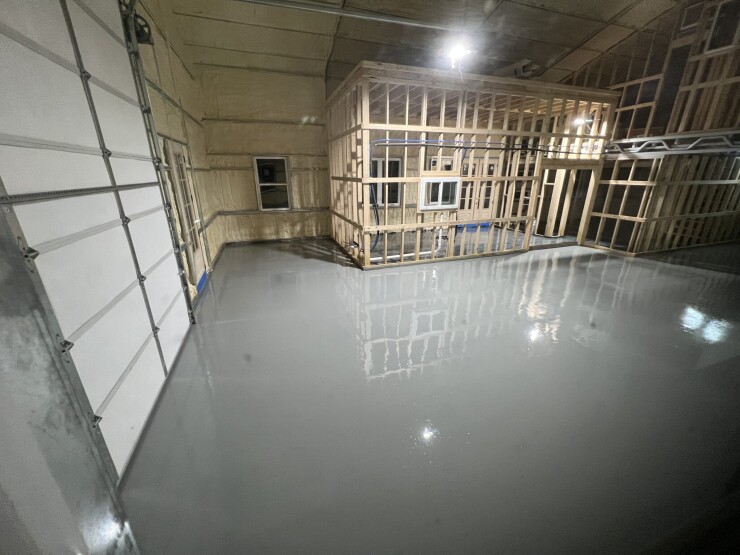

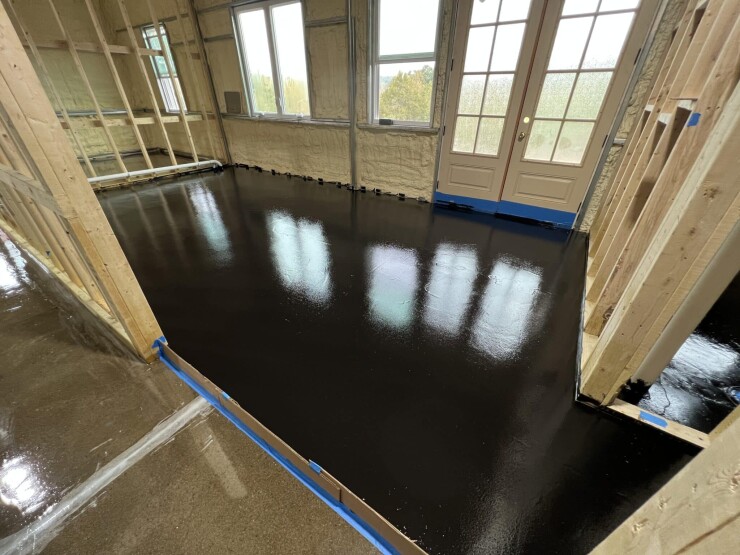

He then applied our 100% Solids, Commercial Grade Quality HyperRez Epoxy. HyperRez is formulated specifically for working with Metallic Epoxy Pigments. To go with the HyperRez, he had 3 separate metallic pigments (Pearl, Twilight and Atlantic Blue) to help create this dazzling floor.
Finally, he applied a clear protective top coat of the 87% Solids 5500-EX Polyaspartic. To add slip resistance, he mixed 3-4 heaping tablespoons of our Anti-Slip Polybeads per every gallon of top coat used.
PROJECT DETAILS
Project Location: Indian Mound, Tennessee
Project Size: 1610 square feet
PRODUCTS USED:
CMW 8000: Lithium Moisture Vapor Barrier and Concrete Densifier. 5 gallons concentrate makes 20 gallons after adding water.
MV2112: Moisture Vapor Barrier Primer Epoxy for Concrete Floors stops up to 20 psi moisture vapor pressure. One coat 18 gallons applied at 90 sq’/gallon
E5829 Joint Sealant: Flexible Interior Expansion and Control Joint Sealant. 2 gallons
E139FL Epoxy Primer White Color: Applied as solid color basecoat. A solid color primer color is important on a metallics floor system as it sets the tone for the metallics system
E5015 Epoxy Primer Black
HyperRez: 100% Solids High Build Epoxy Floor Coating formulated specifically for Metallic Marble Systems. 21 gallons applied at a thick 75 sq’/gallon to provide the 3-D look of a metallics system
Metallic Epoxy Pigments: Metallic pigments are translucent (see through) and formulated to give a coating system a vibrant pearlescent and marbled 3-D look (mimics a quartz countertop). Used one container metallic pigment each gallon HyperREZ with two additional for accent. Colors used listed below:
(10) containers P1010 Pearl
(4) containers P1030 Twilight
(2) containers P1630Atlantic Blue
(4) containers P1105 Wilderness
(3) containers P1000 Great White
5500-EX: Polyaspartic: 87% Solids Polyaspartic used as a clear protective topcoat. 10 gallons applied at 180 sq’/gallon.
Anti-Slip Polybeads : 1 pound of 20 grit Polybeads mixed into the polyaspartic
Date: 2022
