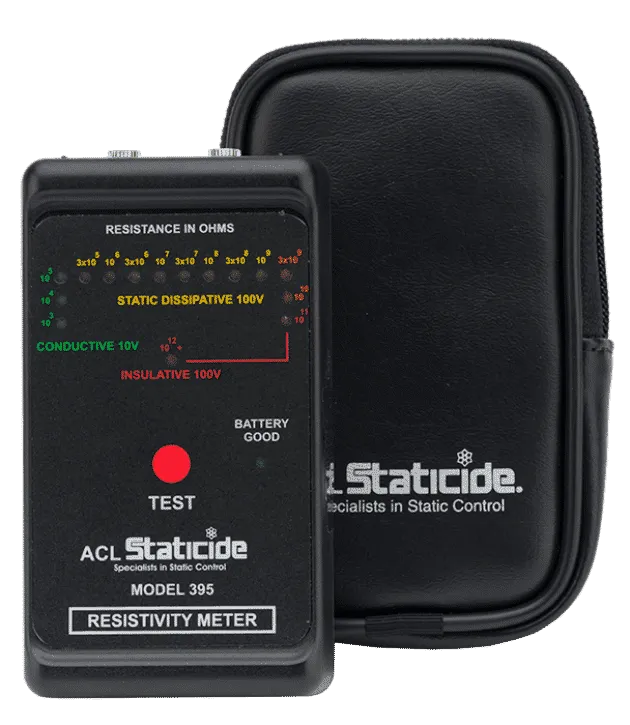

ACL 395 Electrostatic Surface Resistivity ESD Test Meter | Compact Easy to Use
Starting at $60.00
- Four color LED display segments (including warning stage)
- Half decades for greater accuracy
- Rubber rails for increased accuracy, durability and lower maintenance
- Dimensions: 2.8" x 5.1" x 1.4"
- Conforms to ASTM D257
Overview
- Description
- Additional Information
Product Description
395 Surface Resistivity Meter is Lightweight and Easy to Use
The ACL 395 handheld meter features sophisticated circuitry that allows for the same advantages as megohmmeters, but at an economical price. Utilizing color-coded zones, the LED scale is easy to read and evaluate. Half decades indicate where the measurement value falls within the decade giving a closer indication to actual value. Unlike other pocket-sized meters, the ACL 395 features rubber rails which provide the best possible contact. This yields higher accuracy when assessing packaging and assembly lines using the parallel resistivity probe method ASTM D257. Economical and lightweight, this indicator is perfect for assurance check for packaging and assembly lines.
When the optional 5-lb probes are used, this audit kit will comply with IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1 for RTG and RTT testing making it ideal for auditing in material production and laboratories. The flush façade of the ACL 395 is contemporary in design and functional in purpose. The face plate includes an integrated press button and provides protection for the LED scale. This prevents battery drain and lessens the potential for breakage. We also offer replacement rubber rails, ACL 397 for use with the ACL 395 meter.
The ACL 395 meter can be used in all facets of material production including engineering, maintenance, quality control, incoming inspection, manufacturing and research departments for the testing of anti-static mats, floor finishes, paints, wrist straps, smocks, bags and containers.
Where is 395 typically used?
- Packaging and assembly lines, material production including engineering, maintenance, quality control, incoming inspection, manufacturing, research, and sales departments
Why 395 Resistivity Meter?
- Four color LED display segments (including warning stage)
- Half decades for greater accuracy
- Rubber rails for increased accuracy, durability and lower maintenance
- Dimensions: 2.8″ x 5.1″ x 1.4″
- Conforms to ASTM D257
- Includes calibration certificate
- View ACL 395 User Manual
Technical Information |
|
|---|---|
| Accuracy | +- 0.25 decade in the dissipative range |
| Test Voltage | 10-volts at values less than 106 100-volts at values of 106 and greater |
| Power Supply | 9-volt alkaline batter |
| Weight | 8.9 oz |
| Size | 5-1/4″ x 1-3/8″ x 3″ |
| LED Colors: | Green 103 – 106 Yellow 3 x 106 – 109 Orange 3 x 109 – 1010 Red 1011 – 1012 |
| Weight | 8.9 oz |
| Size | 5-1/4″ x 1-3/8″ x 3″ |
| Resistivity Limits | 103 – 1012 ohms per square |
| Ressitance Limits (when using external probes) | 103 – 1012 ohms |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Manufacturer | |
| MPN | ACL 395 |
