UltraCool 8360 Infrared Blocking Window Film | Rejects 89% Infrared Heat | 77% Visible Light Transmission | Blocks 99% UV | 60″ Wide

Specifications

Adhesive (Wet) Installation Guide

BEFORE YOU GET STARTED…

Make a wetting solution.
Wetting solution is the secret ingredient to a smooth, seamless installation. Make a solution by adding 8-10 drops of a mild, non-moisturizing dish detergent (Dawn or Joy; do not use hand soap) to a 32-oz. spray bottle filled with clean water (adjust ratio for smaller or larger bottles). More soap may be needed when applying film to acrylic surfaces. Mix well.

Make sure it’s smooth.
To ensure the surface is completely clean and smooth before installation, spray the glass with the soapy water mixture and drag a single-edge razor across the surface. If you hear a clicking sound, there is something on the surface that will prevent full adhesion. Use a glass-safe scrub pad to remove the debris.

Make a workspace.
Give yourself enough space to work. You will need enough flat surface to lay out the film for measuring, cutting, marking and prep. Do not run a fan near the film or glass surface during installation. This can cause dust and debris to blow onto your film and become trapped.

STEPS

Step 1: Measure, Cut and Clean
Carefully measure the height and width of the glass surface. Cut the film to the dimensions, leaving an extra ½ inch to 1 inch around all sides. You’ll be able to trim the edges down to size in the final step. You may use the paper liner on the back of the film to mark cut points; this will not damage the film. If you’re unsure about measuring, make a paper template of your window and use it to measure and cut your film. Thoroughly clean the surface of the glass to remove any trace of dust, grime and grease. Use low-lint towels or microfiber cloths to clean the surface, as lint left on the glass can stick under film.

Step 2: Peel and Prep
Lay the film on a clean, flat surface with the liner facing up. Slowly peel back the liner, wetting the adhesive side of the film very thoroughly as you peel down. If you can’t separate the liner from the film, place a piece of scotch tape on both sides of the sheet, fold the tape over to create tabs, and use the tabs to separate the two sides. If you are working with a large piece of film, it is helpful for two people to work together. After you remove the liner, rinse and dip fingers in water before handling the film. Wet fingers will prevent fingerprints on the adhesive surface.

Step 3: Get It Wet
Thoroughly spray and soak the glass surface AND the adhesive side of the film with the water mixture. Wetter is better! There is no such thing as too much water. The water will allow you to easily apply and reposition the film before you squeegee—and any excess water will evaporate as the film fully adheres.

Step 4: Apply and Smooth
Pick up the film by the top corners, keeping it straight and level. Place the wet film onto the wet surface, keeping the top edge level but letting the film hang over the edges of the frame on all sides. Move, slide and reposition the film as needed. The water should allow it to float and flow easily. Wet the outside of the film with the spray, then slide a squeegee over the wet film to smooth out and press the film against the glass. Squeegee from the center moving out, pushing bubbles and wrinkles out as you go.

Step 5: Trim and Finish
Double check that the film is flat and smooth. Locate the hard card and razor that were included with your film. If any bubbles remain, use the hard card to push them towards the edge. Then, in one smooth, continuous motion, trim the excess film from the edges using the hard card and a razor knife. Once the film is trimmed, wrap the hard card in a paper towel and use it to push any remaining bubbles and water to the outside edge. The film will completely dry and fully adhere within a few days.

With the right preparation and installation, s Decorative Films are a fast and easy way to transform a room. But don’t skip steps or skimp on tools! For a beautiful and resilient end result, take your time, measure carefully, wet thoroughly and squeegee the entire surface.

What tools will I need for installation?
You will need something to clean the glass, a razor knife (included with your film), scotch tape, a squeegee, a credit card or hard card (included), a soap and water solution (see instructions for details), and a 32-oz. spray bottle (or adjust ratio for other sizes).

Tools: Scissors, Tape Measure, Razor Knife, Ruler, Plastic Card Squeegee, Spray Bottle, and Paper Towel.

How do I work with film that is curled?
Because the film is rolled for shipping, it may be slightly curled prior to application. For best results, unbox, unroll and let all films come to room temperature on a clean, flat surface for 24 hours before installation. This will allow the film to relax. If the edges of the film continue to curl after installation, wrap your squeegee in a few layers of paper towel and push the edges of the film down, moving from just inside the edge to just outside. If the edges continue to curl, turn a hair dryer to the warm (not hot) setting, hold about 8-12 inches away from the film to evaporate any excess moisture, and repeat the squeegee process.

Can film be installed on plexiglass, polycarbonate or acrylic?
Yes, most films can be installed on plexiglass, polycarbonate or acrylic surfaces. But unlike glass, some of these materials expand and contract with temperature changes and emit gas—which may cause air bubbles to form between the film and the surface. Use more soap in your wetting solution when installing on these surfaces.

Can film be installed on textured glass?
No. Film will only correctly adhere to flat, smooth surfaces.

Can film be installed on double-pane windows?
Yes. With the exception of some blackout films, all our films are safe for installation on double- or triple-pane windows.

How do I clean the film after installation?

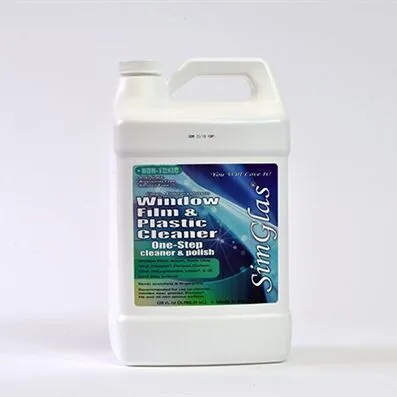

Use any non-ammonia widow cleaner and a microfiber cloth. We recommend SimGlass® Window Film Cleaner, which is available for purchase on our website. Make sure any cleaning professionals are notified that you have films on your windows.

How do I remove film?
All films can be easily removed without any damage to the glass. Begin by peeling the film away from one corner of the glass and pulling down until the entire panel is removed. If any adhesive remains, it can be easily removed with window cleaner, soapy water or a single-edge razor blade.

How do I place seams?
Before you do any actual cutting, you should consider where to place the seam on the window. You will usually have options when deciding: do you want it vertical or horizontal? Higher or lower? It may depend on the width of the roll you are working with, but generally you’ll want to place it where it is least noticeable. If you have tall windows, placing it at the top will make it harder to see. If it is darker at the bottom or people tend to look toward the top more often, then placing it at the bottom will be the best method.

How do I cut the seam?
The second factor to consider when doing this technique properly is the cutting. Some customers try to cut the two pieces as true as possible with a straight-edge, then line them up and install. Or, they make sure to use the factory edges of the film when ”butting” the two ends together. This can work well, but most times it is difficult to cut the film perfectly straight, or using the factory edges creates too much waste. The best method to splicing is to overlap the two pieces about 1/2” where they meet. Install the entirety of the pieces, then use a sharp blade to cut down the center of the overlap. Since the pieces are installed and adhere firm on the window, they shouldn’t move or peel while you are slicing. Remove the sliced strips of film and you are left with a tight seam.

SOLYX® WINDOW FILM CLEANING INSTRUCTIONS

The following are washing and maintenance instructions for all your SOLYX Glass
Finish Films. Post these instructions where employees and/or maintenance
personnel can read them since failure to follow them will irrevocably void your
warranty.

DO NOT CLEAN UNTIL THIRTY (30) DAYS AFTER THE INSTALLATION DATE.
This will ensure proper care of the adhesive and edge seal used to bond the film to
the glass surface.

Recommended cleaner is SimGlas® Window Film Cleaner and microfiber cloth.

DO NOT USE BRISTLE BRUSHES OR ANY OTHER MATERIAL THAT MIGHT SCRATCH
THE SURFACE. CAUTON! DO NOT USE AMMONIA OR VINEGAR OR ANY PRODUCTS
CONTAINING AMMONIA OR VINEGAR TO CLEAN THE FILM. Some paper towels are
coarse enough to scratch the Film. Repeated use of improper cleaning implements
and/or solutions will damage the appearance of the Film.

GENERAL GUIDELINES

DO NOT USE ANY ADHESIVE TAPES, LABELS, OR SIGNAGE ON THE SURFACES TO
WHICH THE FILM HAS BEEN APPLIED.

Under reasonable weather conditions, film will dry flat, with no blisters, within 30
days, when viewed under normal viewing conditions. Normal viewing conditions are
viewing treated windows from a distance of ten feet from the room side, at angles of
up to 45 degrees, looking at a clear or uniformly overcast sky. Since a particle-free
application is possible only under sterile conditions, there may be small amounts of
dust or grit caught between the film and glass.

Please be advised that there may be a small amount of water left behind, particularly
with the thicker films. Please be patient. Within approximately 60-90 days, this
water will bake out. However, in the event that you see larger blisters forming
within 24 hours after the installation, please call your installation company
immediately.
