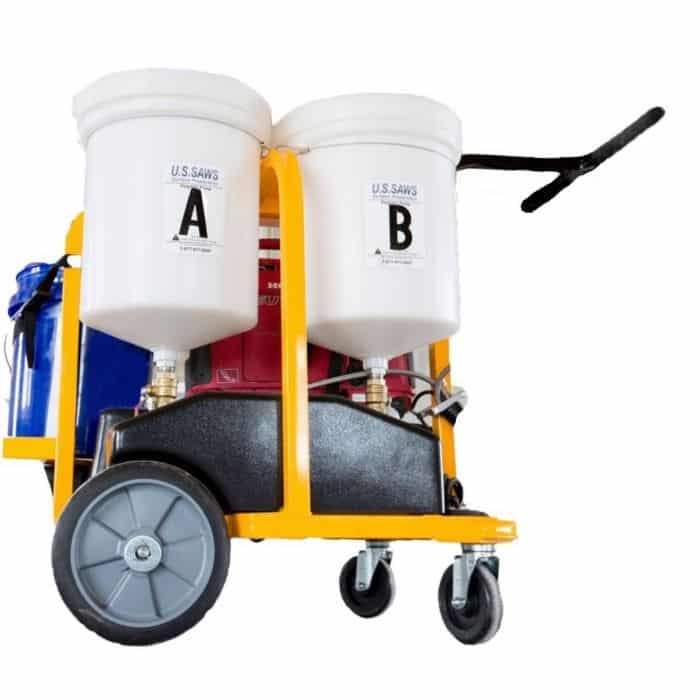

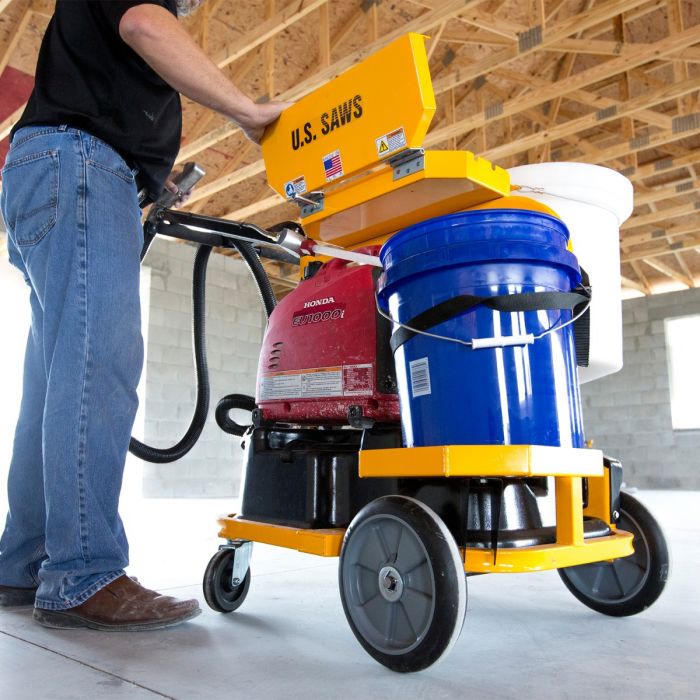

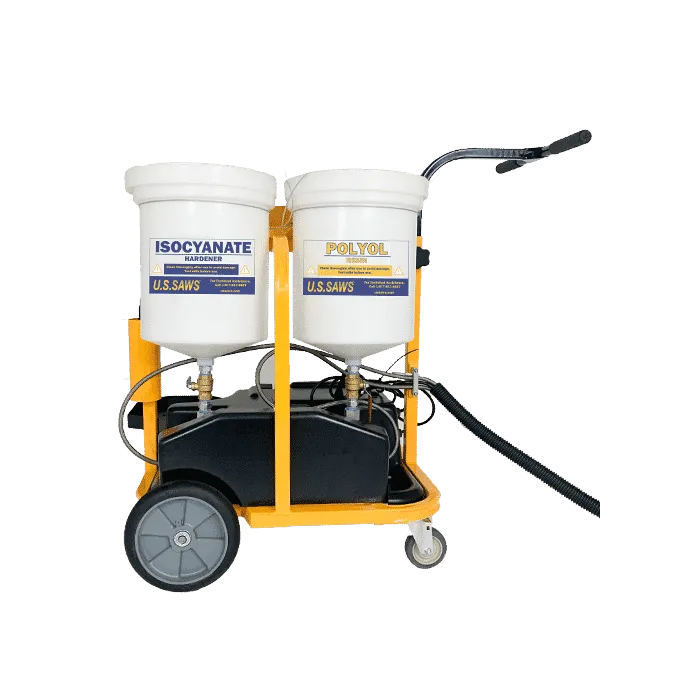

US SAWS DUAL COMPONENT 1 MAN POLYUREA / EPOXY JOINT FILLER PUMP

US Saws’ SX20550 Dual Component 1 Man Pump is designed to significantly reduce labor cost and increase speed with quick and efficient 1 man application of both polyurea and epoxy 2 component joint fillers on commercial and industrial floor projects.  Offers significant increase in the speed of application where the alternative is applying by hand using a twin cartridge system allowing one person to control the position of the polymer pump with one hand while dispensing the joint filler with the other. Each SX20100 comes with a replacement supply of (20) 1/2″ x 32 element static mixers designed to work with a wide variety of joint filler products. The joint filling machine constructed with a “T” handle, which allows left and right-handed operation. This “One Man Pump” enables other workers to handle different tasks while one person is filling concrete expansion joints. The new design also makes it easier for the pump operator as he knows exactly where the pump should be and where it needs to go next — no more running over wet floor joints. Easier to use than other dual pump systems with its low profile, lightweight and 4 wheel quick turning design.The strapped-on waste bucket makes those little drips on the floor a thing of the past. The operator holds the mixing tip over the bucket while transporting the pump to get set up for his next run. The SX20550 Dual Component Polyurea / Epoxy Joint Filler Pump has a 1/2HP motor and operates on 110V electric current (220 volt electric motor available).  Also can be used on projects where electric power is not available through purchase of the US Saws’ deep cycle battery and power inverter.  The SX20550 is simple to use and easy to maintain.  Joint filler is applied through a long flexible hose and comes out through a removable static mixer for proper material mixing per mfg requirements.  The SX20550 works with 1:1 mix joint fillers and using an optional easy to change sprocket 2:1 mix joint fillers. The Dual Component Pump is powerful enough to work with both polyurea and epoxy joint filler material.  Great for use with the ASTC Polymers 3003/3004 Polyurea Control Joint and 3246 Poylurea Expansion Joint Filler.  It will also dispense many polyaspartic coatings, offering extremely quick application for larger floor projects where time is critical and labor budgets are tight. US Saws offers the standard SX20100 model two man operation pump and the slimmer and  even more labor efficient US Saws’ new SX20550 Dual Component 1 Man Pump offering one man operation.

WHERE IS US SAWS DUAL COMPONENT SX-20550 ONE MAN PUMP USED?

  • Large Joint Filling Floor Projects
  • Polyurea Joint Filler projects
  • Epoxy Joint Filler projects
  • Application of Some Polyaspartic Coatings

WHY US SAWS SX-20550 PUMP?

  • Reduced Labor Costs with newly redesigned, low profile one man operation
  • Significantly Increase application Speed on Large Concrete Floor Projects
  • Allows Quick Joint Filling vs Cartridge Application
  • Left and right handed operation are easy with the double-sided “T” handle
  • Works With Both Polyurea and Epoxy 2 Component Joint Fillers
  • Easy to Use – Inexpensive to Maintain

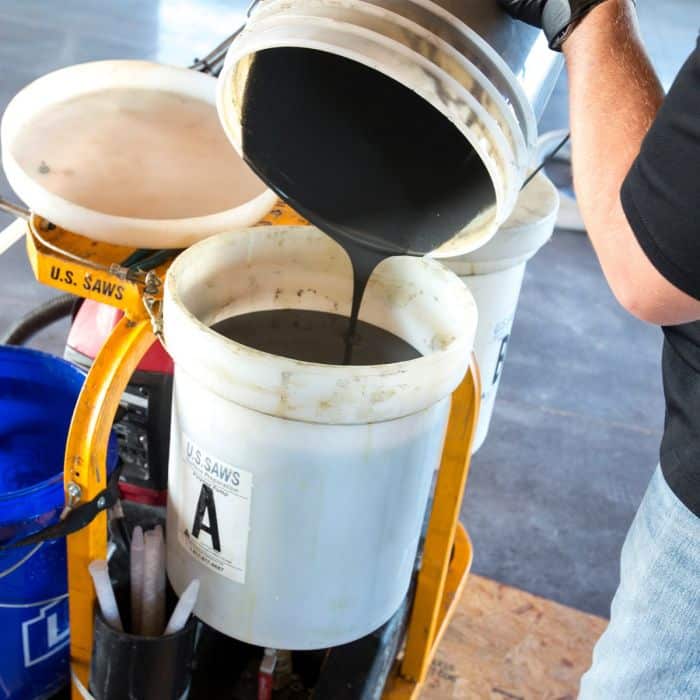

  • Twin 6.5 Gallon See Through Tanks Each Hold 5 Gallons Joint Filler
  • Semi-Transparent Tanks Allow Operator to Monitor Liquid Level in Tanks
  • Easy To Clean Polyethylene Tanks With Full Sized Lids for Unrestricted Access to Inside of Tanks
  • Dispense 1:1 Ratio or 2:1 Ratio Product With Simple Sprocket Change (optional)
  • Will Dispense Certain Polyaspartic Floor Coatings – Call For Details
  • 1/2HP 110V Electric Motor with 0-6 GPM Variable Speed Flow Control on Dispensing Wan
  • 220V optional 1/2 HP Electric Motor Available Special Order Lead Time for use outside North America
  • Optional Deep Cycle Battery & Power Invertor for Cordless Operation

One Man Plural Component Pump Training Video US Saws SX-20550

HOW TO CLEAN YOUR US SAWS POLYUREA PUMP AFTER USE

3003 Polyurea Slow Set Interior Control Joint Filler | Low Temp -20°F

From: $160.00

  • Quick Back In-Service 30-60 Min Control Joint Repair
  • 100% Solids Flexible and Self Leveling
  • Excellent Moisture, Abrasion and Chemical Resistance
  • Designed for High Traffic interior Concrete Floors
  • Great for Cold Storage Down to -20°F (-26°C)
  • Allows “Load Transfer” Across the Control Joint
  • Slow Set for more working time - 10 min tack free
  • Apply using dual component pump application
Select options

3004 Polyurea Fast Set Interior Control Joint Filler | Low Temp -20°F

From: $160.00

  • Quick Back In-Service 20-30 Min Control Joint Repair
  • 100% Solids, Flexible and Self Leveling
  • Designed For High Traffic Concrete Floors
  • Excellent Moisture, Abrasion, Chemical Resistance
  • Great for Cold Storage Down to -20°F (-26°C)
  • Allows “Load Transfer” Across the Control Joint
  • Fast Tack Free Time 2-3 min for use with High Speed Machine Application or for small projects easy application using twin cartridge kits and 300 ml x 300 ml cartridge gun
Select options

3246 Polyurea Flexible Expansion Joint Filler | Exterior Interior | Low Temp -20°F

From: $185.00

  • Quick 30 Min Back In-Service Joint Repair
  • Extremely Flexible 600%+ Elongation for extreme conditions
  • Abrasion, Chemical and Fuel Resistant
  • Great for Concrete Driveways, Parking Garages, Bridges, Warehouses
  • Outdoor control joint & all expansion joints
  • 100% Solids, Self leveling
  • Apply using High Speed Machine Application and for small projects easy application using twin cartridge kits and 300 ml x 300 ml cartridge gun
  • Cold Application Down to -20°F (-26°C)
Select options

SX-20005-5 Polyethylene Tank 6.5 Gallons for US SAWS Polyurea Joint Filler Pumps

$90.00

  • Oversize 6.5 Gallon Tanks
  • Sturdy Polyethylene Construction
  • See Through Design For Quick Visual of Fluid Levels
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-20005-6 Polyethylene Tank Cover 6.5 Gallon for US SAWS Polyurea Joint Filler Pumps

$35.00

  • Protect and Secure Polyurea & Epoxy in 6.5 Gallon Polyethylene Tanks
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-20016 Manifold With Grease Fittings for US SAWS Polyurea Joint Filler Pumps

$175.00

  • Replacement Manifold for US SAWS Dual Component Pumps
  • Complete with fittings, new retainer nut and a night cap
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-20017 Tank Warmers For Cold Weather for US SAWS Polyurea Joint Filler Pumps

$215.00

  • Good for cold weather projects
  • Protects Polyurea from cold temperatures
  • One Warmer for Each Tank
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-20111 Static Mixer Retaining Nut & Cap for US SAWS Polyurea Joint Filler Pumps

$30.00

  • Retaining Nut Secures Static Mixer in Place
  • Static Mixer Cap protects End from Contamination during brief stopping periods
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-20201 Replacement Pump for US SAWS Polyurea Joint Filler Pumps

$425.00

  • Replacement Pump For US SAWS One Man and Two Man Pumps
Select options

SX-21000 Polyurea Pump 2:1 Ratio Conversion Kit for US SAWS Polyurea Joint Filler Pumps

$120.00

  • Quickly Convert Dual Component Pump to 2:1 Mix Ratio Products
  • For Use with US SAWS One Man and Two Man Pumps
Select options

SX-21018 Power Inverter 1500W for US SAWS Polyurea Joint Filler Pumps

$330.00

  • Allows Cordless Operation When Stable Power Source Unavailable
  • Easy Operation in the Field
  • Works with Group 27 or larger DEEP CYCLE Marine or RV battery
  • For Use with US SAWS One Man and Two Man Pumps
Select options
