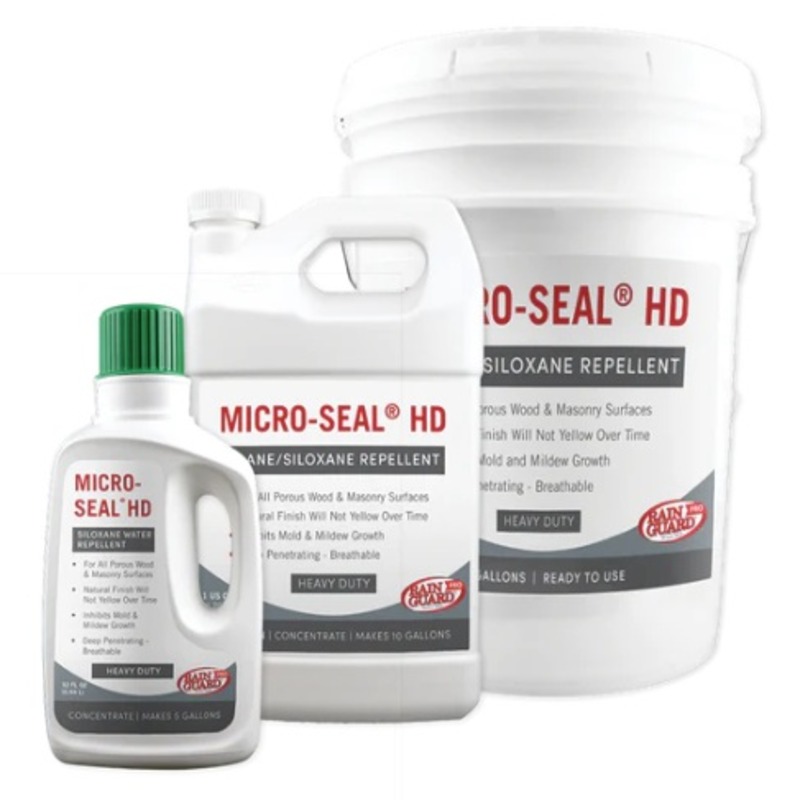

Micro-seal HD Silane Siloxane Water Repellent | 100% Solids | Concrete Brick Block Stucco | Clear Non Film Forming
Starting at $74.00
- Mold and mildew inhibitor
- Clear, long lasting formula designed to seal a variety of surfaces
- Acid and grease resistant
- Weathering, no change after 3,500 hours
- VOC compliant; Contains no known carcinogens
Overview
- Description
- Additional Information
- Specs
- Coverage Rate
- Application
- Calculator
Micro-seal HD Silane Siloxane Water Repellent | Concrete Brick Block Stucco | Clear Non Film Forming
Micro-Seal HD Silane Siloxane Water Repellent is a solvent-free 100% active solid, silane siloxane repellent for horizontal and vertical porous surfaces. Double the solids of the original Micro-Seal, the coating dries down to a non-yellowing natural finish. It protects against water intrusion, efflorescence, lime , spalling, freeze/ thaw cycle damage, gas stains, oil stains, mold, mildew and UV damage.
Micro-Seal HD self-emulsifies to form a high-performance and deep-penetrating, alkali-resistant water-repellent emulsion. When applied Micro-Seal HD forms a long chain water-repellent barrier deep within the brick and masonry surface. This hydrophobic barrier repels water, yet remains highly vapor-permeable for moisture to escape. Micro-Seal HD performance is unaffected by weathering, UV light and wind-driven rain.
Micro-Seal HD uses Micro-Lok to create a micro-molecular chemical and mechanical bond between the water-repellent chemicals and the substrate. Micro-Seal HD penetrates deep into porous brick and masonry surfaces for long-lasting and virtually indestructible water-repellent protection that is unaffected by weather or sunlight. It helps prevent spalling and cracking caused by freeze/ thaw cycles. It also helps prevent chloride ion intrusion and efflorescence.
Where is Micro-seal HD typically used?
- Construction & Remodel Projects: Exterior building|screen|retaining walls, warehouse|factory|parking garage floors, bridge abutments, stadiums, concrete curing compound
- Homeowner projects: Exterior brick|stucco walls, chimeys, driveways, garage floors, decks, patios, porches, walkways, fences
- Non-traditional applications: Clay tile roofs, Clay|concrete flower pots, indoor floor and bathroom tile mortar grout sealing, additive to paint to enhance adhesion|water repellency|life, outdoor unpainted wood furniture
Why Micro-seal HD Water Repellent Sealer?
- Mold and mildew inhibitor
- Clear, long lasting formula designed to seal a variety of surfaces
- Acid and grease resistant
- Weathering, no change after 3,500 hours
- VOC compliant; Contains no known carcinogens
- Breathable-does not trap moisture
- Can be used in cold temperature applications
- Will NOT yellow or turn cloudy
- UV Stable
- Penetrates-deep Perfect for use on brick porches, chimneys and walkways
- Stain resistant to oil, gas and anti-freeze; great for concrete parking garages
- Great winterizing agent – Protects brick from icing and salt infiltration
- Controls efflorescence on brick, block and stucco surfaces
- Does not change the surface look or texture
- 100% vapor permeable
- Protects against wind driven rain
- Helps resist freeze/ thaw damage
- Comparison Chart of Concrete Sealers by ConcreteNetwork.com
| Weight | N/A |
|---|---|
| Dimensions | 12 × 6 × 10 in |
| Color | |
| CSI Spec | |
| Product Material | |
| Finish | |
| Surface Applied To | |
| Warranty | Standard 10 Year up to 20 Year Labor & Material Warranty |
| Manufacturer |
TECHNICAL INFORMATION |
|
|---|---|
| Material Type | Silane / Siloxane |
| Active Content | 100% |
| Volume Solids | 80% |
| Color of Material | Milky White |
| Odor | No Odor |
| VOC | 0g/L VOC Compliant |
| Flash Point | Non-Flammable |
| pH Value | 6 |
| Viscosity | 9.6 Seconds No. 4 Ford Cup |
| Weight | Approximately 8.7 lbs / Gal |
| Surface Dry/ Recoat | Approx 1 Hour |
| Use on Material | Concrete, brick, masonry, stucco, block. natural stone, EIFS, wood |
| Warranty Available | 10 years material/labor standard, 20 years using double concentrate rate – download warranty application to register, see DOCUMENTS tab above |
| Full Chemical Cure | 5 -7 days for full product performance |
| Approvals & Qualifications | |
|---|---|
| LAUSD-OESH | Approved |
| USGBC- LEED Points | Up to 3 Points |
| LEED (New Construction) | Approved |
| LEED (New Schools/ CHPS) | Approved |
| CARB & SCAQMD | Approved |
| FDA & USDA | Meets Requirements |
| CERTIFICATION/TEST | |
|---|---|
| ASTM C666 | 2000 Cycles - No effect |
| ASTM C672 100 Cycles | No Mass Loss, No Scaling |
| ASTM D2243 | Do Not Freeze |
| ASTM G154 2,500 Hours | No Loss in Repellency |
| ASTM C672/C2672M | No Scaling, 100 Cycles Treated Concrete |
| Wind Driven Rain | ASTM E-514-86, 98.7% Leak Red |
| Water Pen Fed Spec | SS-W-110C, 75% Min Req, 96.8 Leak
Red Chloride Ion Intr |
| Salt Pounding NCHRP | No. 244 Series IV- 95%
No. 244 Series II - 87% Red |
| Chloride Ion Absorption | Master Painters Institute |
| Water Abs CMU ASTM C140-75 | 98.6% Effective |
| Water Vapor Trans ASTM D-1653-71 | 100% Vapor Perm |
| Water Repellency ASTM C67-87 | 98.6% Effective |
| Weathering ASTM G-53 | 3,500 Hours - No Change |
| Surface Burning ASTM E84 | Flame Spread 0, Smoke Development 0 |
| Deicer Scaling ASTM C672 | 150 Cycles 0 Rating |
| COVERAGE RATE | SQUARE FEET/GALLON |
|---|---|
| CMU & Block | 50-80 |
| Adobe Block | 70-90 |
| Natural Stone | 70-90 |
| Clay Brick | 125-150 |
| Wood | 150-200 |
| EIFS | 80-120 |
| Stucco | 100-150 |
| Concrete | 135-160 |
| Concrete Curing | 310-410 |
| *Extremely porous surfaces | May require 2nd application |
| *Textured surfaces | Decreases coverage rates |
The Coverage Rate depends on the surface. Test the product on a small area of the substrate to estimate coverage. Extremely porous surfaces may require multiple coats.
The use of fluted, scored block, raked joints, sandblasted or etched surfaces will result in a greater absorption and lower coverages rates by up to 40%. Test these areas for the expected coverage rate before general application. Allow for this increased surface area when determining material requirements.
MIXING AND APPLICATION INSTRUCTIONS
Priorto application, all surfaces shall be clean and dry with no oils, dirt, debris or minerals such as efflorescence, lime and calcium. These stains, along with others, will prevent proper penetration of Micro-Seal HD to sufficiently seal for the warranty period.
The use of RainguardPro's Restore-N-Prep Concrete and Masonry Cleaner system is recommended as a pre-treatment to clean masonry surface. Once clean, allow the surface to fully dry before sealing or applying a topcoat.
| CONDITIONS PRIOR TO APPLICATION | |
|---|---|
| Temperature (surface|air) | 35F to 90F (1.7C to 35C) and at least 5F above dew point |
| Moisture of substrate | Less than 15% |
| Humidity | Less than 90% |
| Rain | No rain 48 hrs prior to, 12 hrs after application |
| Cure time for newly poured concrete | Apply 48 hrs after pour |
| Application method | Use low pressure hand pump or garden sprayer |
WORKING WITH CONCENTRATES
| Ratio | Description |
|---|---|
| 4 parts water to 1 part concentrate | Extra strength for surfaces that are highly porous |
| 9 parts water to 1 part concentrate | Standard strength, ideal for most porous surfaces. Extra porous surfaces may require a second coat. |
| 14 parts water to 1 part concentrate | Ideal for very dense surfaces. ALso ideal for dustproof applications. |
FOLLOW THESE SIMPLE APPLICATION STEPS
- Apply Micro-Seal HD using a hand pumped garden sprayer (do not atomize) or low-pressure airless spray equipemnt
- If using airless spray equipment we recommend a spray tip size of .035 to .051. Spray head should be held 8 to 12 inches from the surface.
- Apply a fog coat quickly followed by a flood coat that runs down the wall approximately 6-12 inches below the point of application
- Apply material following the coverage rate previously listed (P.1.)
- Avoid application in windy weather
- Trigger gun off at the end of each pass to avoid using excessive materials.
- Multiple coats may be applied. Whitening or yellowing will not occur.
Concrete Curing
Micro-Seal HD regulates the moisture content of the concrete at the curing stage. It prevents quick water evaporation. This alleviates cracking while the concrete is drying. Micro-Seal HD is also breathable for the escape of moisture over time.
Apply Micro-Seal HD at a rate of 300-400 sq ft/ gallon to "wet" the fresh concrete. This is typically done the day after pouring the concrete and after form release agents, oils and other products are properly prepared to receive a curing aid.
Test Panel
Always apply Micro-Seal HD onto a mock wall or test panel. Tes the wall or an actual surface area to determine acceptable color, surface porosity , application rates and methods before starting general application.
Safe Handling
Use product only with adequate ventiliation and/or an appropraite cartridge type respirator. Avoid contact with skin and wear protective gloves. Read the Safety Data Sheet before using.
Precautions
Use material in a well-ventilated area. Protect the work of other trades. Protect shrubbery and other plants with drop cloths. Protect automobiles and all other areas not to be coated from overspary. Remove overspray from any windows, automobiles, metal, etc. as soon as possible should it cocur. TO prevent permanent staining, clean spills or leaks in a timely manner.
All surfaces to be coated should be clean of any dirt and grime, efflorescence, lime run, form oils and realse agents, grease, mud, excess mortar, and mold and mildew, etc. ALl cracks should be poitned or caulked. All voids, beeholes, masonry surface defects and openings such as conduits, pipes, drains, door frames, vents, air conditioner openings, electrical openings, control joints or any dissimlar materiasl hsould be rpeaired using urethane or other approved patching.
Do not apply to surfaces if moisture content is greater than 25%
STORAGE
Store materials in a well-protected area between 45° and 90°F. Avoid freezing temperatures, direct sunlight, and moisture. Keep away from heat sources.
Square Footage Calculator
Estimate the Right Amount for Your Project
Use the calculator to determine your total project square footage. Once you have your measurements, compare the result to the product coverage rate listed on this page to estimate how much material you'll need for complete coverage.
Calculate Coverage
Quickly determine the total square footage of your project area.
Estimate Product Quantity
Use your results to calculate how much product your project requires.
Plan With Confidence
Add a waste percentage to account for surface texture and application conditions.
Coverage estimates are provided as a general guide. Actual product usage may vary based on surface condition, porosity, application method, and project requirements.
