Traffic-Lok 100% Acrylic Traffic and Line Marking Paint | Premium Waterborne | Concrete Masonry Asphalt

Traffic-Lok is a 100% acrylic, premium grade waterborne traffic and line marking paint specially manufactured and formulated for optimal adhesion and durability. Designed with a special sheen to enhance durability, weather resistance and resistance to dirt pick up. Designed to meet TT-P 1952B, it also meets SCAQMD Rule 1113 for Architectural Coatings.

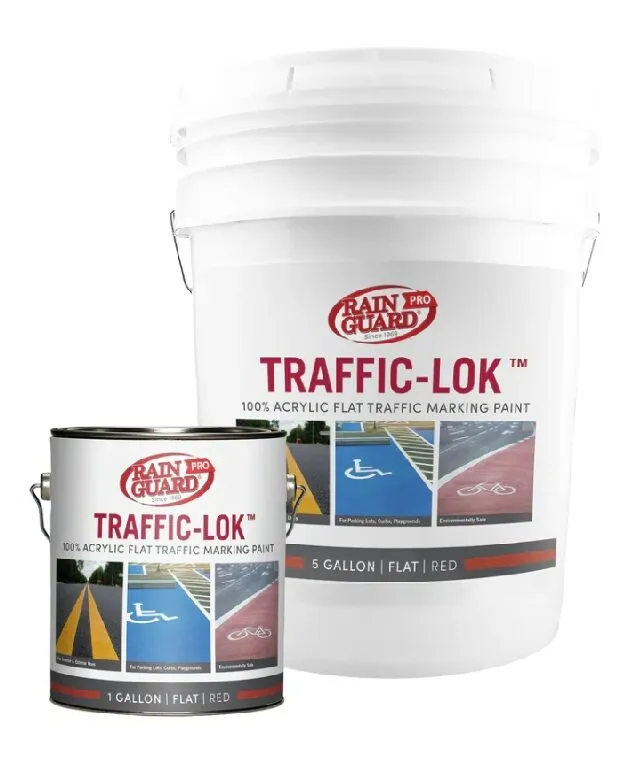

Traffic-Lok is supplied Ready-to-Use in 6 pre-tinted colors. Available in 1 gallon and 5 gallon containers. Easy to apply using brush, roll or spraying onto the surface.

Primer: For masonry surfaces, recommended Restore-N-Prep as pretreatment to properly clean the surface.

Topcoat: None Required.

WHERE IS TRAFFIC-LOK USED?

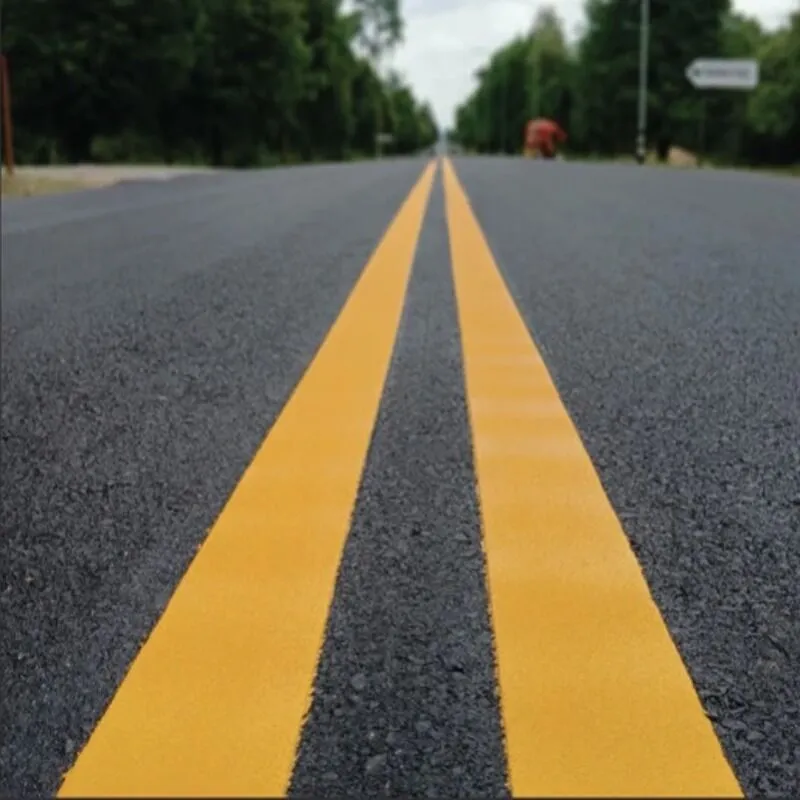

  • Traffic Markings
  • Legend Identification Work

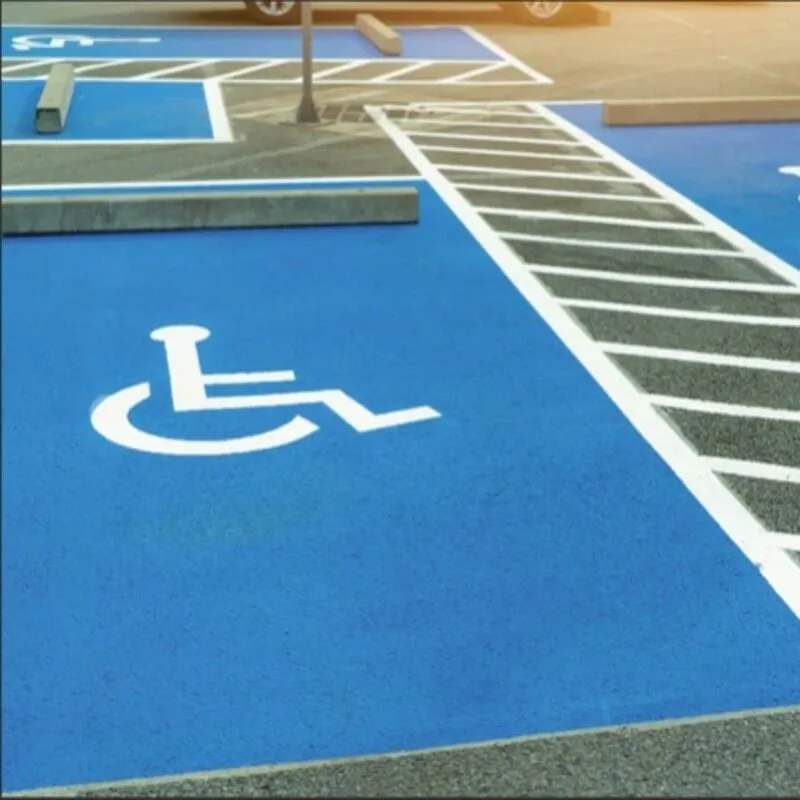

  • Instructional Markings on Roadways, Crosswalks, Sidewalks, Curbs and Parking Lots
  • Fully Cured Traffic-Bearing Surfaces
  • Previously Painted Surfaces
  • Galvanized Metal and Aluminum

WHY TRAFFIC-LOK?

  • Flexible and Durable- Will Not Crack
  • Easy to Apply
  • Great for concrete, asphalt, galvanized metal, aluminum and previously painted surfaces
  • Environmentally Safe
  • Requires No Thinning-Pre-Stained
  • Safe for Interior and Exterior Applications
  • 6 color options



COVERAGE RATE

Test product over small area of the substrate to confirm coverage

Thickness/Stripe Width Coverage Per Gallon
15 Mils Wet / 8.5 mils dry 105 Square Feet
Line Stripe at 4″ wide 315 Lineal Feet

APPLICATION TEMPERATURE: 50°F (and rising) – 90°F with relative humidity no more than 80%

Technical Data
Material Type Acrylic
Solids by Volume 55.9%
Solids by Weight 74.2%
Color of Material TBA
Odor Slight Latex Odor
Colors available White, Red, Yellow, Blue, Green, Black
V.O.C. 92 gm/L
Viscosity 88-92 KU
Weight ~ 13.9lbs./Gal
Surface Dry Time Approx. 30 Minutes @ 70°F
Recoat Dry Time Approx. 2-4 Hours @ 70°F
Application Temp. 50°F-90°F



Conformance
SCAQMD Meets Rule 1113, Architectural Coatings

APPLICATION INSTRUCTIONS FOLLOW THESE SIMPLE APPLICATION STEPS

Surface Preparation

Prior to application, all surfaces shall be clean and dry with no oils, dirt, debris, rust, metal oxides, or minerals such as efflorescence, lime and calcium. These stains, along with others, will prevent proper penetration of Traffic-Lok to sufficiently seal for the warranty period.

New asphalt or top sealed asphalt surfaces should ideally be allowed to thoroughly cure before striping. Place a small inconspicuous test strip to determine if surface of asphalt has cured sufficiently to paint. Traffic-Lok is not recommended over water soluble top sealers.

The use of Restore-N-Prep™ Concrete and Masonry Cleaner system is recommended as a pretreatment to clean masonry surfaces. Once clean, allow the surface to fully dry before sealing or applying a top[1]coat (See the Restore-N-Prep™ TDS for details).

Application Instructions

Traffic-Lok is supplied Ready-to-Use. DO NOT THIN. Mix thoroughly prior to use. Avoid application in windy weather. In hot weather, lightly dampen surfaces with clean fresh water to avoid premature or flash drying.

Brush, roll or spray. Ambient and surface temperatures must be above 50°F and relative humidity below 80%. Clean tools and equipment with soap and water. Reach out to Exterior Performance Coatings with any application questions or instructions.

Safety Precautions: When using this product where high foot traffic areas exist and may become slippery when wet, aggregate such as clean sand or anti slip additives should be added if non-skid characteristics are desired.

Mil Thickness
Wet 12-15
Dry 9-11



Dry Time
Touch 30 Minutes
Recoat 2-4 Hours

Safe Handling

Use product only with adequate ventilation and/or an appropriate cartridge type respirator. Avoid contact with skin and wear protective gloves. Read the Safety Data Sheet before using.

Test Panel

Always apply Traffic-Lok onto a mock wall or test panel. Test the wall or an actual surface area to determine acceptable color, surface porosity, application rates and methods before starting general application.

Field Test

Tack-free dry 5 minutes, dry time is 15-20 minutes and can dry to no-tracking in 30 minutes to one hour, maximum without beads, depending on wet film thickness and ambient conditions. No traffic pick up, at 15 mils wet, without beads, 75 minutes (ASTM D 711) maximum. Dry times will be extended at increased humidity above 80% and temperature below 50F

Surface conditions and application variables are out of the control of Exterior Performance Coatings. As such, the applicator agrees to: Follow recommended application instructions, acknowledge limitations outlined in this technical data sheet, contact the manufacturer in the event there are any uncertainties, perform a test panel to confirm fit and finish before any general application. The data on this sheet represent typical values. Since application variables are a major factor in product performance, this information should serve only as a general guide.

NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY We warrant that our products are manufactured to strict quality assurance specifications and that the information supplied by us is accurate to the best of our knowledge. Such information supplied about our products is not a representation or a warranty. It is supplied on the condition that you shall make your own tests to determine the suitability of our product for your particular purpose. Any use or application other than recommended herein is the sole responsibility of the user. Listed physical properties are typical and should not be construed as specifications. NO WARRANTY IS MADE, EXPRESSED OR IMPLIED, REGARDING SUCH OTHER INFORMATION, THE DATA ON WHICH IT IS BASED, OR THE RESULTS YOU WILL OBTAIN FROM ITS USE. N0 WARRANTY IS MADE, EXPRESSED OR IMPLIED, THAT OUR PRODUCT SHALL BE MERCHANTABLE OR THAT OUR PRODUCT SHALL BE FIT FOR ANY PARTICULAR PURPOSE. NO WARRANTY IS MADE THAT THE USE OF SUCH INFORMATION OR OUR PRODUCT WILL NOT INFRINGE UPON ANY PATENT. We shall have no liability for incidental or consequential damages, direct or indirect. Our liability is limited to the net selling price of our product or the replacement of our product, at our option. Acceptance of delivery of our product means that you have accepted the terms of this warranty whether or not purchase orders or other documents state terms that vary from this warranty. No representative is authorized to make any representation or warranty or assume any other liability on our behalf with any sale of our products. Our products contain chemicals that may CAUSE SERIOUS PHYSICAL INJURY. BEFORE USING, READ THE MATERIAL SAFETY DATA SHEET AND FOLLOW ALL PRECAUTIONS TO PREVENT BODILY HARM.
